Dormer S5117.0 5982878 square end mill, 7.00mm cutting diameter, 4-flute solid carbide (HM) with 30° helix angle. Suitable for K (cast iron), M (stainless steel), N (non-ferrous metals), and P (steel/cast steel) materials. Coated for enhanced performance. DORMER standard.

Basic Standard

DORMER

Coating

X-CEED

Coating property (CTP)

1

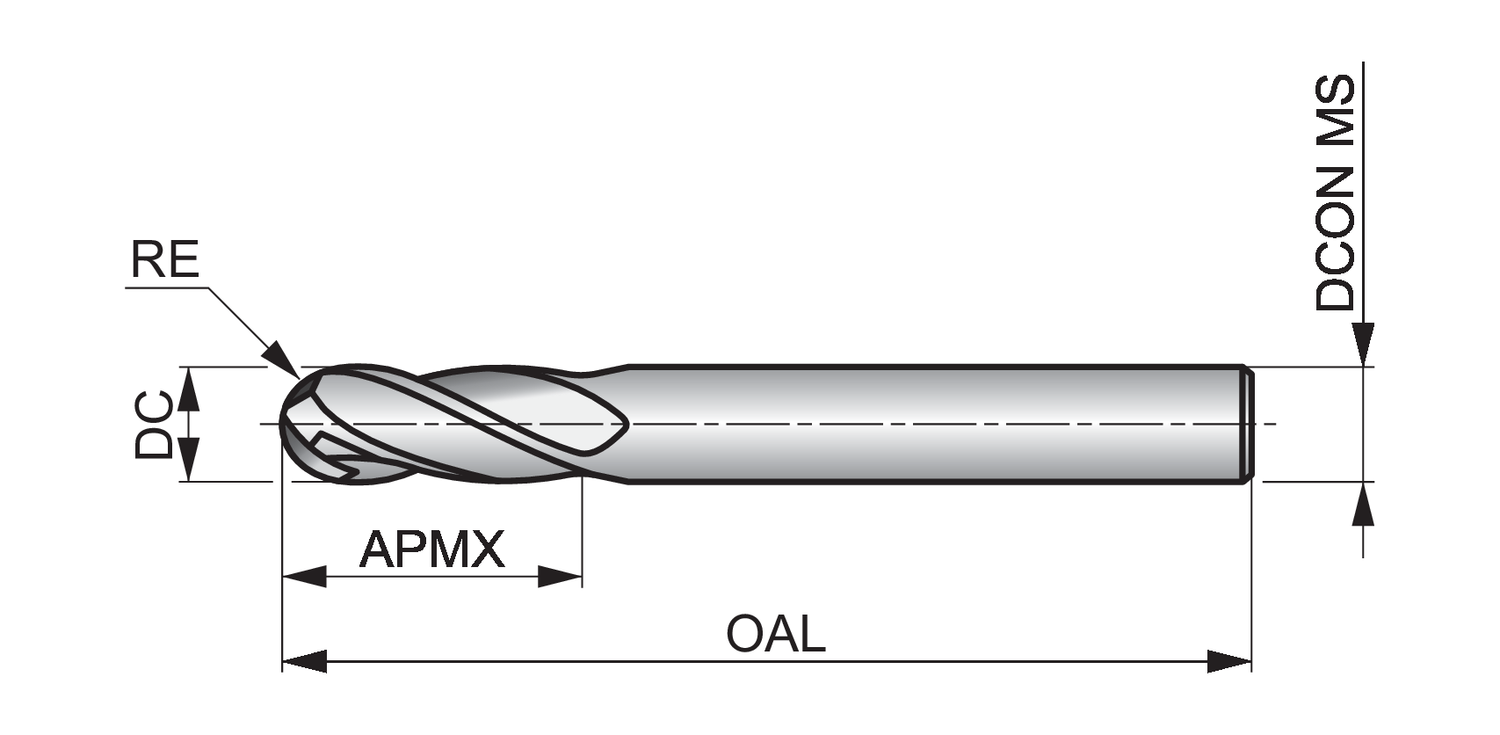

Connection diameter - inch (DCON MS)

0.315

Connection diameter - millimeter (DCON MS)

8

Corner radius - inch (RE)

0.1378

Corner radius - millimeter (RE)

3.5

Cut length

Short

Cutting diameter - inch (DC)

0.2756

Cutting diameter - millimeter (DC)

7

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

0.6299

Depth of cut maximum - millimeter (APMX)

16

EDP number

121047

Flute count (NOF)

4

Flute helix angle (FHA)

30

Material

HM

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

5982878

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S5117.0

Overall length - inch (OAL)

3.937

Overall length - millimeter (OAL)

100

Peripheral effective cutting edge count (ZEFP)

4

Radial rake angle (GAMF)

10

Shank

Cylindrical shank DIN 6535 HA
