6706673

Image for Illustration purposes only. Actual product may vary

View in markdown

Dormer S5215.0XR0.3 6706673 square end mill with corner radius, 5.00mm cutting diameter, 0.3mm corner radius, 4-flute, solid carbide (HM), 45° helix angle, for hardened materials (H). DORMER standard, 6mm max depth of cut, peripheral effective cutting edge count 4.

MODEL 6706673

SKU

6078479

WEIGHT

0.059 lb

UOM

each

$118.10 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Basic Standard

DORMER

Coating

TiSiN

Coating property (CTP)

1

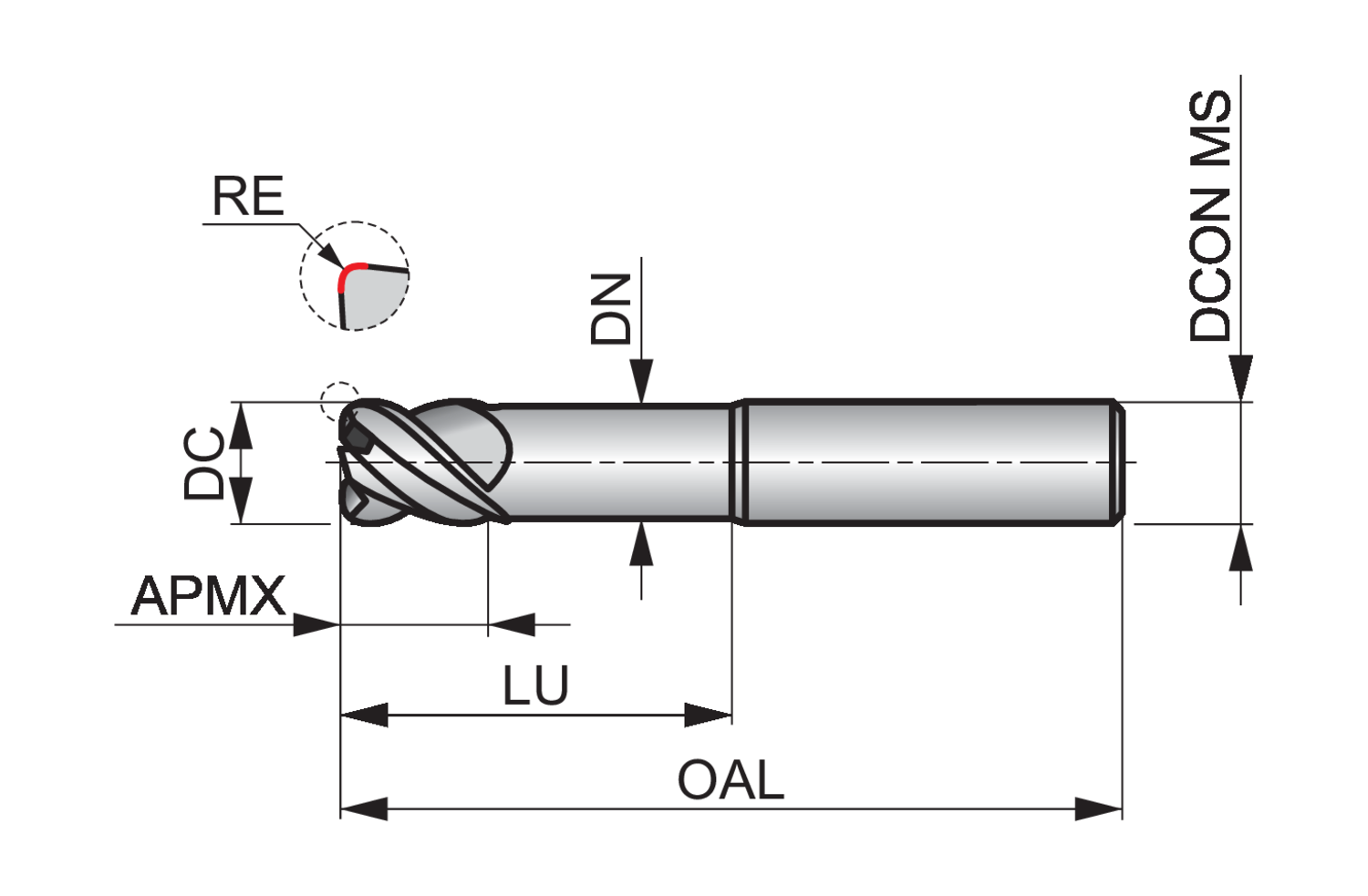

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

6

Corner radius - inch (RE)

0.0118

Corner radius - millimeter (RE)

0.3

Cut length

Extra short

Cutting diameter - inch (DC)

0.1969

Cutting diameter - millimeter (DC)

5

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

0.2362

Depth of cut maximum - millimeter (APMX)

6

EDP number

46706673

Flute count (NOF)

4

Flute helix angle (FHA)

45

Material

HM

Material application

H - Hardened materials

MID number

6706673

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Neck diameter - inch (DN)

0.1811

Neck diameter - millimeter (DN)

4.6

Ordering code ANSI

S5215.0XR0.3

Overall length - inch (OAL)

2.3622

Overall length - millimeter (OAL)

60

Peripheral effective cutting edge count (ZEFP)

4

Radial rake angle (GAMF)

-10

Shank

Cylindrical shank DIN 6535 HA

Usable Length - millimeter (LU)

18

S521 4-flute milling cutters have a 45 degree helix for high performance profiling on CNC machines and a short flute design with corner radius, great for standard profile milling where a fillet radius is required.

They have a titanium silicon nitride coating for increased tool life and improved performance when milling difficult to machine materials.

Manufactured from premium carbide for great performance and longer tool life, S521 corner radius milling cutters are designed specifically for high speed machining in hardened tool steels up to 63HRC
