Dormer S52610.0 6706793 10mm diameter 6-flute solid carbide square end mill with 50° helix angle and 45mm max depth of cut. Designed for finishing hardened materials (H). 10mm cylindrical shank. DORMER standard.

Basic Standard

DORMER

Coating

TiSiN

Coating property (CTP)

1

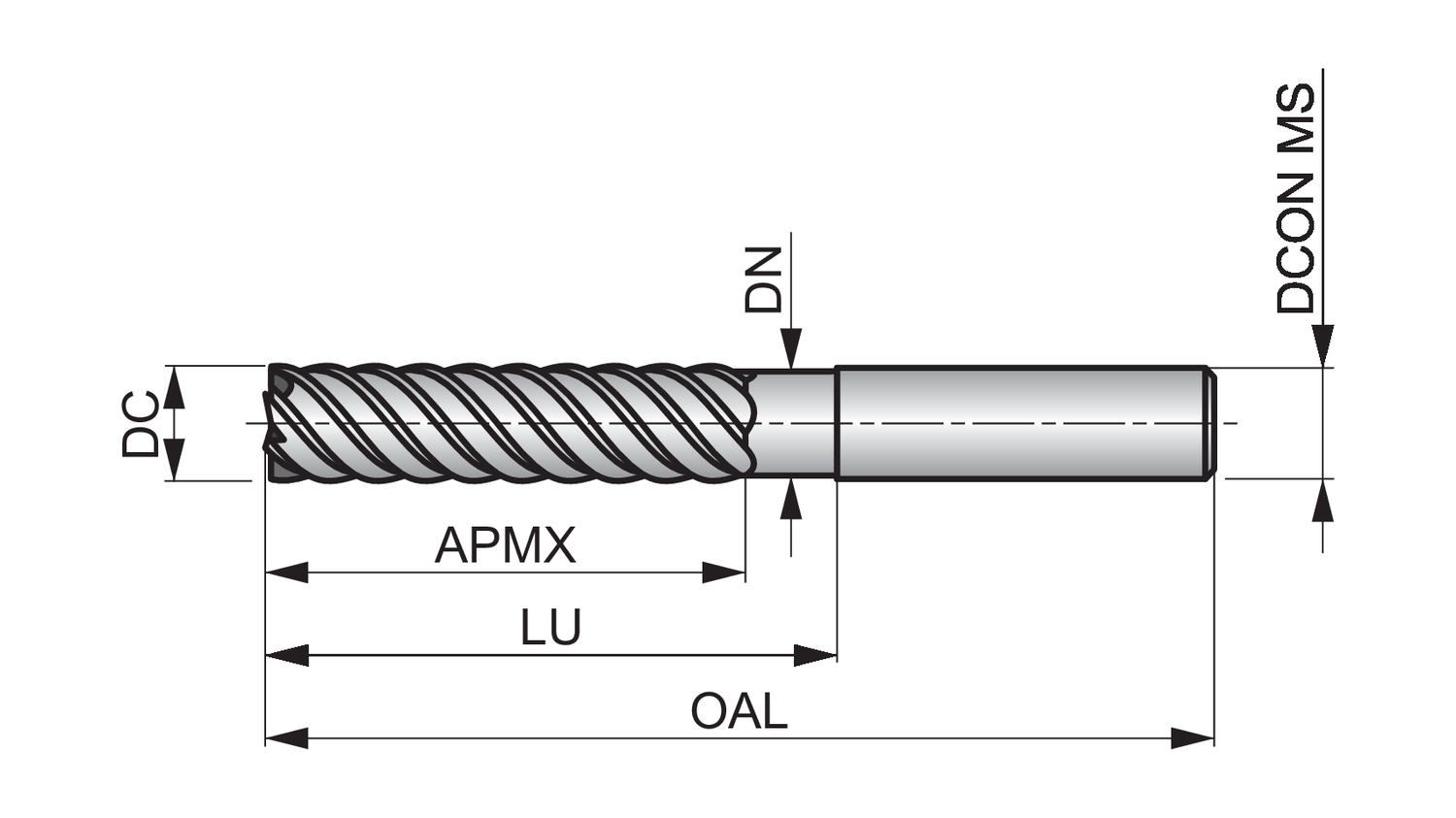

Connection diameter - inch (DCON MS)

0.3937

Connection diameter - millimeter (DCON MS)

10

Cut length

Long

Cutting diameter - inch (DC)

0.3937

Cutting diameter - millimeter (DC)

10

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

1.7717

Depth of cut maximum - millimeter (APMX)

45

EDP number

46706793

Flute count (NOF)

6

Flute helix angle (FHA)

50

Material

HM

Material application

H - Hardened materials

MID number

6706793

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Neck diameter - inch (DN)

0.3622

Neck diameter - millimeter (DN)

9.2

Ordering code ANSI

S52610.0

Overall length - inch (OAL)

3.937

Overall length - millimeter (OAL)

100

Peripheral effective cutting edge count (ZEFP)

6

Radial rake angle (GAMF)

-26

Shank

Cylindrical shank DIN 6535 HA

Usable Length - millimeter (LU)

60
