Dormer S5264.0 6706790 4.00mm cutting diameter solid carbide square end mill with 6 flutes and 50° helix angle, designed for finishing hardened materials. 6mm connection diameter, 19mm maximum depth of cut, and -26° radial rake angle. DORMER standard.

Basic Standard

DORMER

Coating

TiSiN

Coating property (CTP)

1

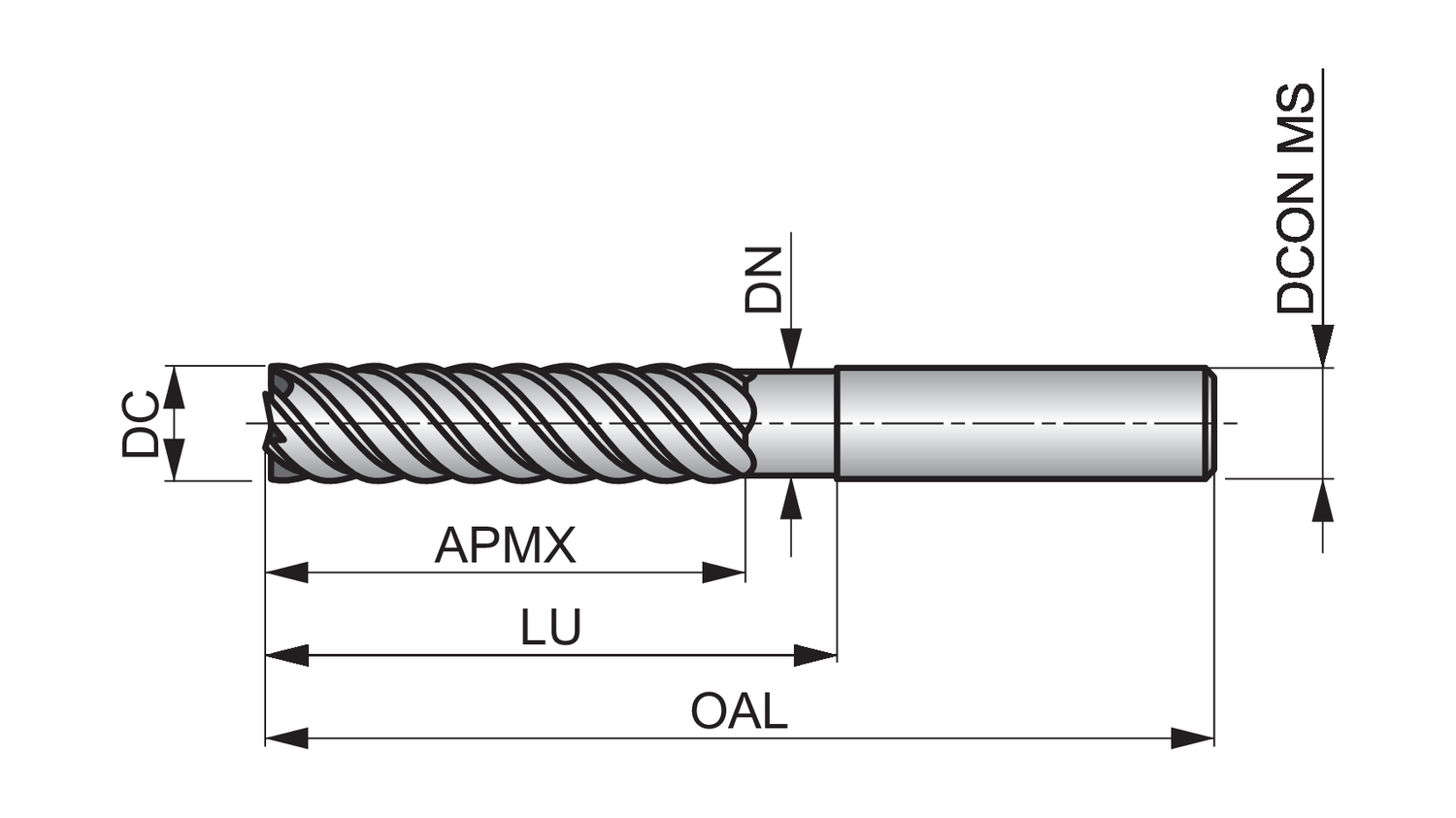

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

6

Cut length

Long

Cutting diameter - inch (DC)

0.1575

Cutting diameter - millimeter (DC)

4

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

0.748

Depth of cut maximum - millimeter (APMX)

19

EDP number

46706790

Flute count (NOF)

6

Flute helix angle (FHA)

50

Material

HM

Material application

H - Hardened materials

MID number

6706790

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Neck diameter - inch (DN)

0.1457

Neck diameter - millimeter (DN)

3.7

Ordering code ANSI

S5264.0

Overall length - inch (OAL)

2.9528

Overall length - millimeter (OAL)

75

Peripheral effective cutting edge count (ZEFP)

6

Radial rake angle (GAMF)

-26

Shank

Cylindrical shank DIN 6535 HA

Usable Length - millimeter (LU)

32
