Dormer S5298.0 6706509 Ball-Nosed End Mill 8.00 mm
MODEL 6706509
$95.77 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiSiN
Coating property (CTP)
1

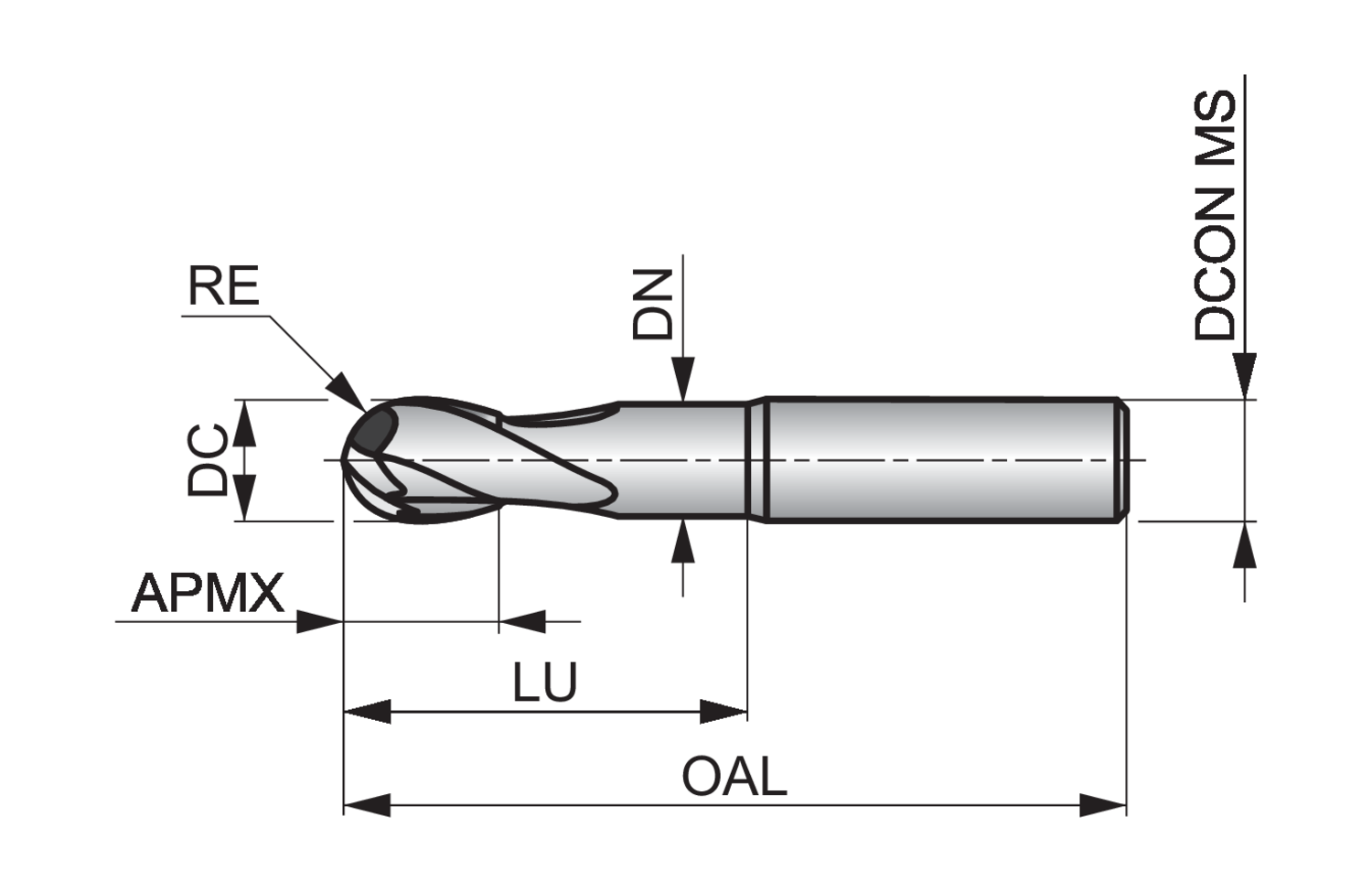

Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
Connection diameter tolerance machine side (TCDCONMS)
h6
Corner radius - inch (RE)
0.1575
Corner radius - millimeter (RE)
4
Cut length
Extra short
Cutting diameter - inch (DC)
0.315
Cutting diameter - millimeter (DC)
8
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.4724
Depth of cut maximum - millimeter (APMX)
12
EDP number
46706509
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
H - Hardened materials
MID number
6706509
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.2913
Neck diameter - millimeter (DN)
7.4
Ordering code ANSI
S5298.0
Overall length - inch (OAL)
2.5197
Overall length - millimeter (OAL)
64
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-10
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
30
S529 2-flute slot drills have a ball nose geometry for high performance contouring of complex surfaces and have a short, 2-flute design, providing high rigidity for increased strength and reduced vibration.
Manufactured from premium carbide material, providing longer tool life and superior performance, the tools have a titanium silicon nitride coating, which further enhances tool life and also improves performance when milling difficult to machine materials.
S529 application slot drills are specifically for high speed machining in hardened tool steels up to 63HRC
