Dormer S53612.0XR2.0 6706841 square end mill, 12mm cutting diameter, 6-flute, solid carbide, high feed design for hardened materials. 75mm overall length, 12mm shank, 25° helix angle, h9 tolerance. For H-class hardened materials.

Basic Standard

DORMER

Coating

TiSiN

Coating property (CTP)

1

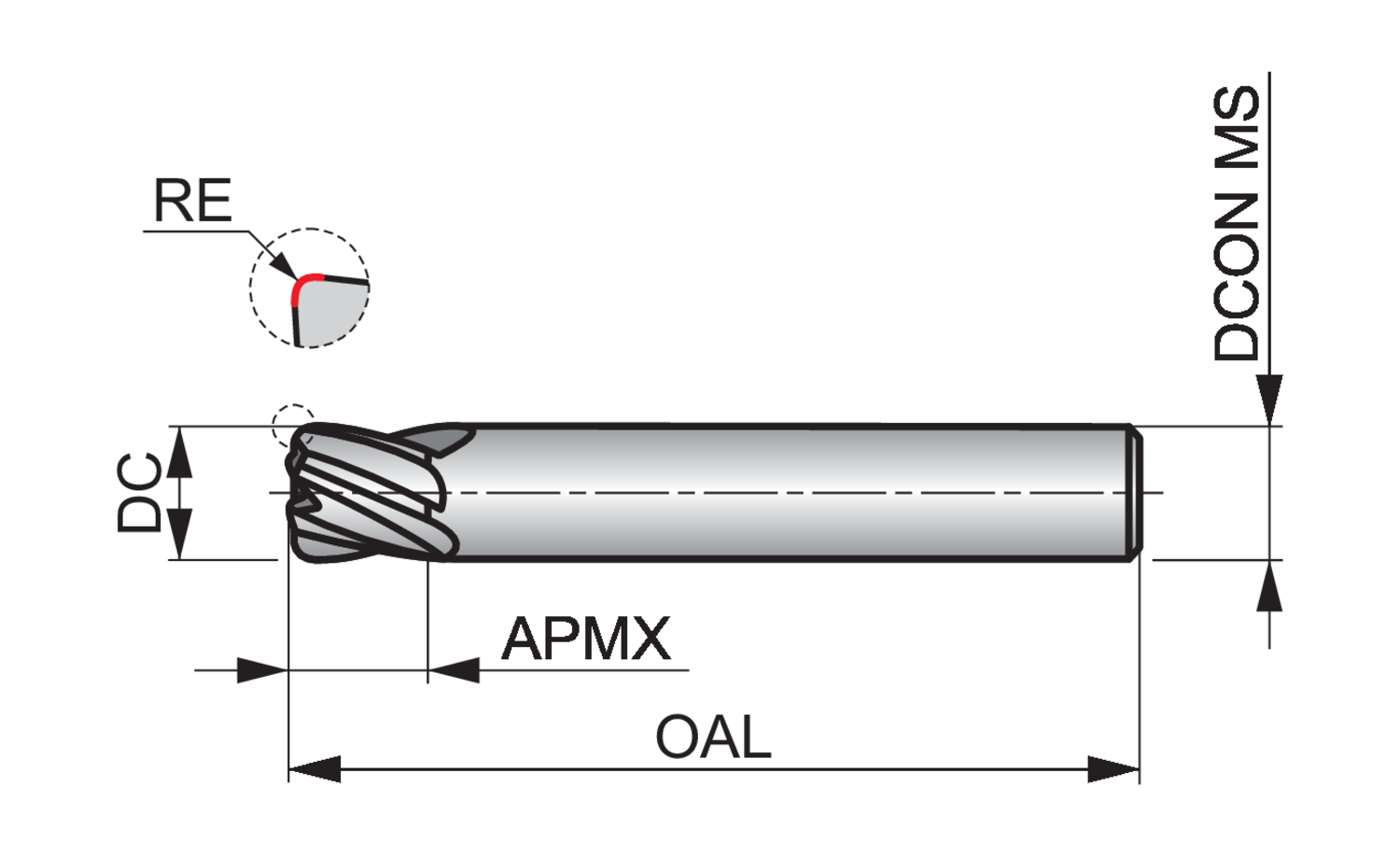

Connection diameter - inch (DCON MS)

0.4724

Connection diameter - millimeter (DCON MS)

12

Connection diameter tolerance machine side (TCDCONMS)

h6

Corner radius - inch (RE)

0.0787

Corner radius - millimeter (RE)

2

Cut length

Extra short

Cutting diameter - inch (DC)

0.4724

Cutting diameter - millimeter (DC)

12

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

0.4724

Depth of cut maximum - millimeter (APMX)

12

EDP number

46706841

Flute count (NOF)

6

Flute helix angle (FHA)

25

Material

HM

Material application

H - Hardened materials

MID number

6706841

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S53612.0XR2.0

Overall length - inch (OAL)

2.9528

Overall length - millimeter (OAL)

75

Peripheral effective cutting edge count (ZEFP)

6

Profile radius - millimeter (PRFRAD)

0

Radial rake angle (GAMF)

0

Shank

Cylindrical shank DIN 6535 HA
