Dormer S61016.0 6706602 square end mill, 16.00mm cutting diameter, 2-flute, solid carbide (HM), 30° helix angle, 20° radial rake, 32mm max depth of cut, 16mm shank, for non-ferrous metals (N). DORMER standard.

Basic Standard

DORMER

Coating

Polished

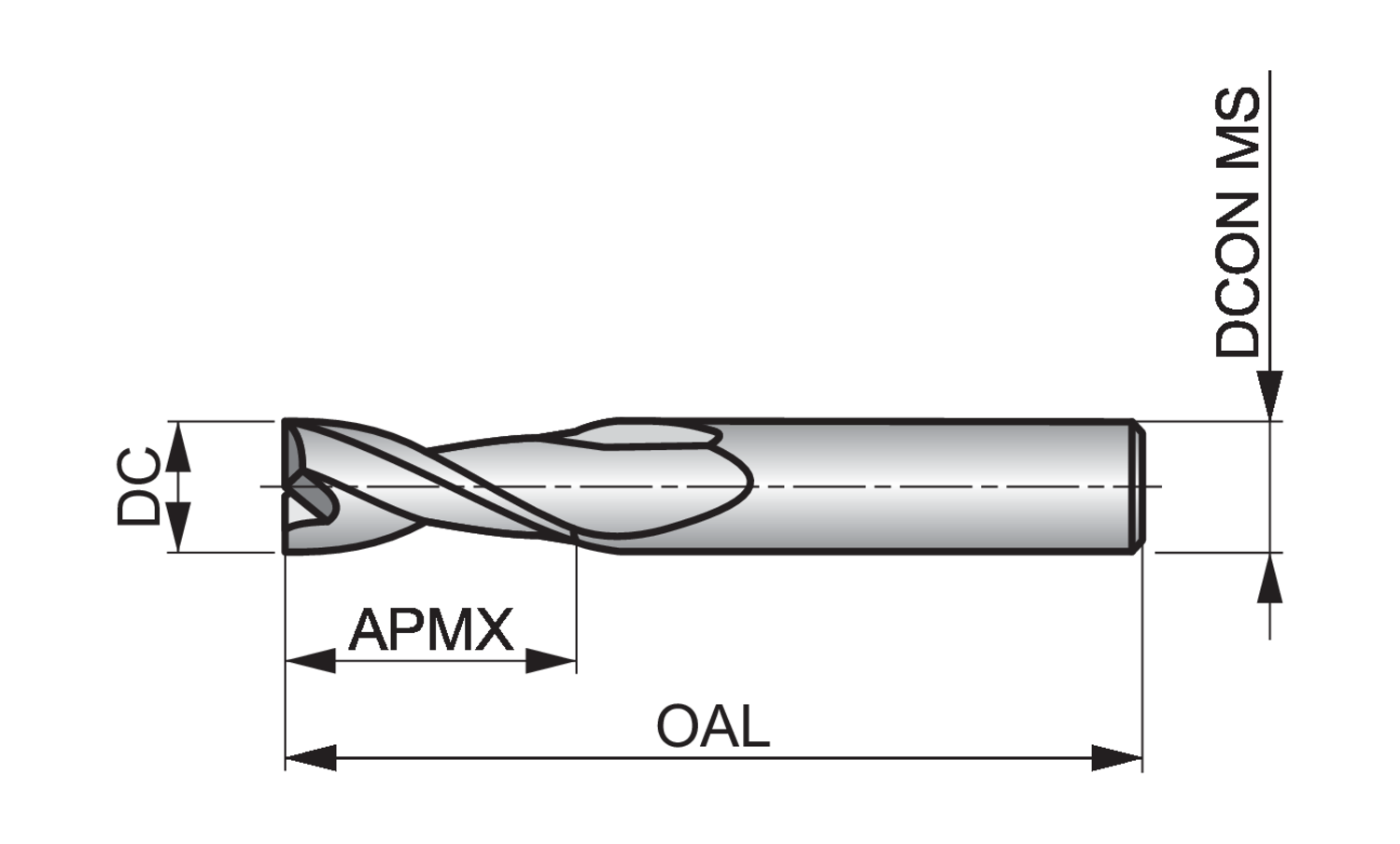

Connection diameter - inch (DCON MS)

0.6299

Connection diameter - millimeter (DCON MS)

16

Corner radius - inch (RE)

0.0039

Corner radius - millimeter (RE)

0.1

Cut length

Short

Cutting diameter - inch (DC)

0.6299

Cutting diameter - millimeter (DC)

16

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

1.2598

Depth of cut maximum - millimeter (APMX)

32

EDP number

46706602

Flute count (NOF)

2

Flute helix angle (FHA)

30

Material

HM

Material application

N - Non-ferrous metals

MID number

6706602

Mill Profile

W - Non-ferrous Cutter Type for Soft Malleable Materials

Ordering code ANSI

S61016.0

Overall length - inch (OAL)

3.5433

Overall length - millimeter (OAL)

90

Peripheral effective cutting edge count (ZEFP)

2

Radial rake angle (GAMF)

20

Shank

Cylindrical shank DIN 6535 HA
