Image for Illustration purposes only. Actual product may vary
Dormer S6113.0XD3 8030271 End Mill
MODEL 8030271
$54.23 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Polished

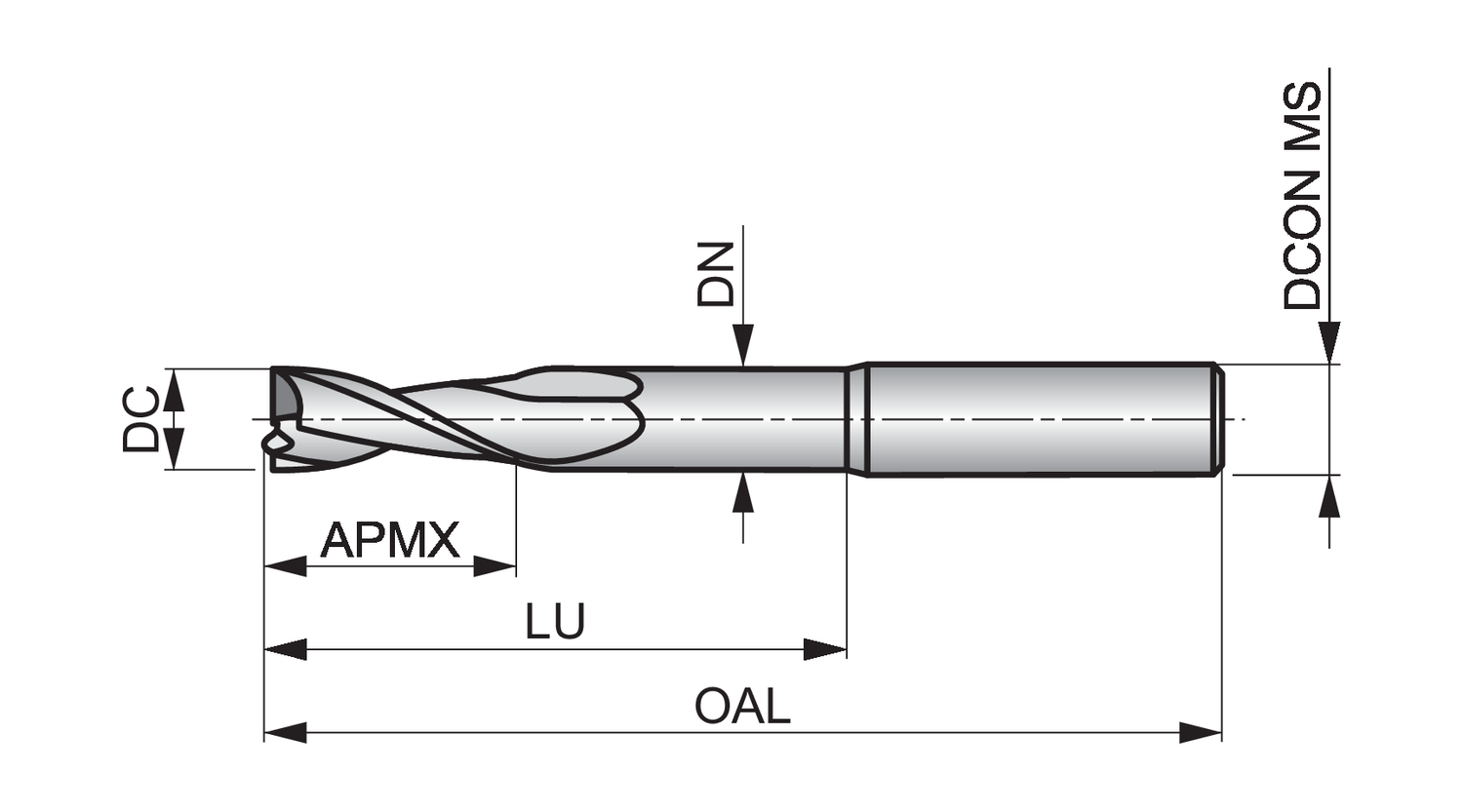

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Coolant supply property (CSP)
0
Corner radius - inch (RE)
0.0039
Corner radius - millimeter (RE)
0.1
Cut length
Short
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
Cutting diameter tolerance class (TCDC)
h9
Cutting pitch differential (CPDF)
0
Depth of cut maximum - inch (APMX)
0.3543
Depth of cut maximum - millimeter (APMX)
9
EDP number
8030271
Flute count (NOF)
2
Flute helix angle (FHA)
30
Flute helix unequal
0
Material
HM
Material application
N - Non-ferrous metals
MID number
8030271
Mill Profile
W - Non-ferrous Cutter Type for Soft Malleable Materials
Neck diameter - inch (DN)
0.1102
Neck diameter - millimeter (DN)
2.8
Ordering code ANSI
S6113.0XD3
Overall length - inch (OAL)
1.5748
Overall length - millimeter (OAL)
40
Radial rake angle (GAMF)
20
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
15
Short series End mill with 2 flutes, diameter 3mm with 9mm length of cut, 40mm overall length, 15mm reach with neck relief and 0.1mm corner radii, according to DORMER standard with a 3mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling, ramping and helical milling in non-ferrous metals
