Dormer S6118.0 6706585 End Mill 8.00 mm
MODEL 6706585
$84.02 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Polished

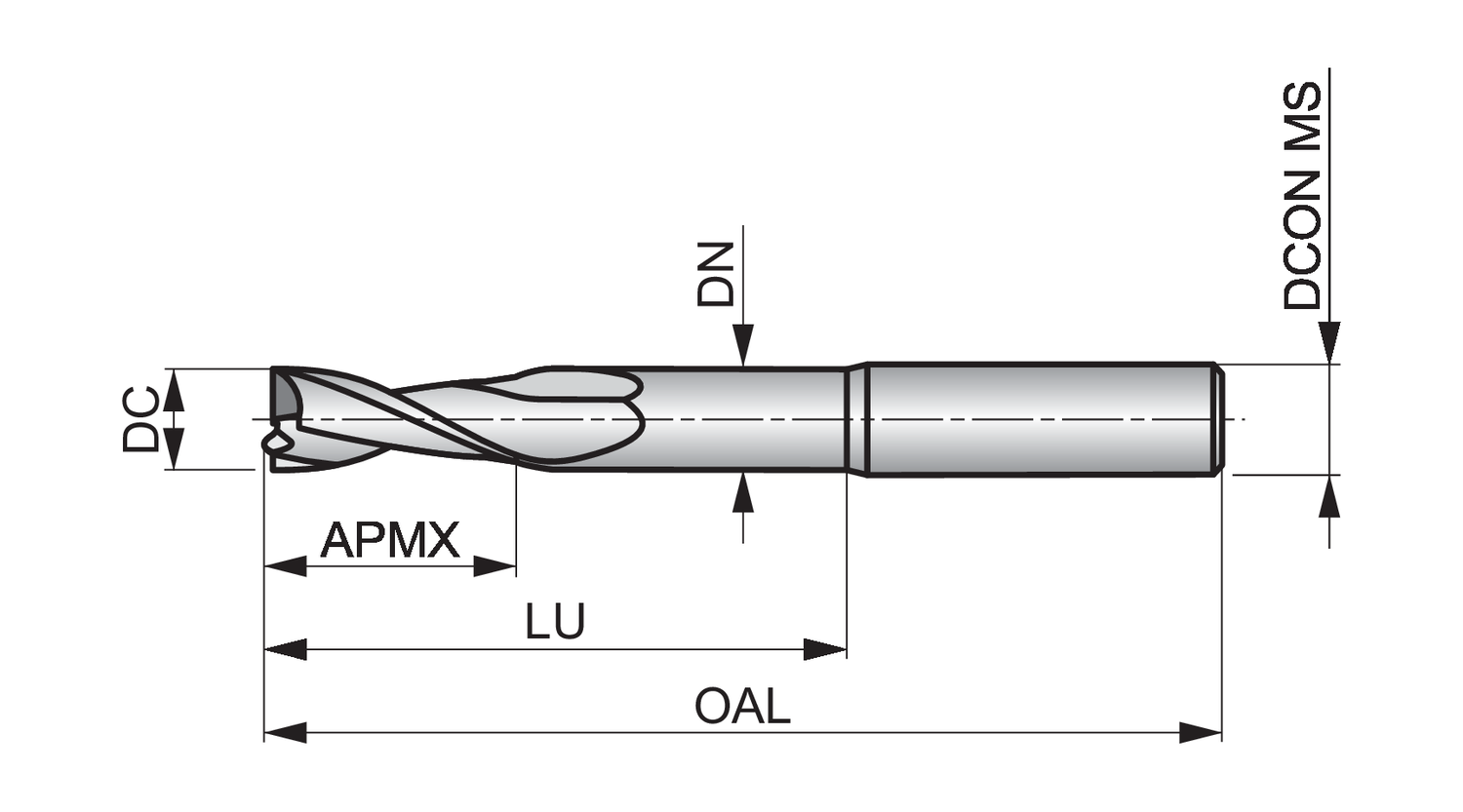

Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
Corner radius - inch (RE)
0.0039
Corner radius - millimeter (RE)
0.1
Cut length
Short
Cutting diameter - inch (DC)
0.315
Cutting diameter - millimeter (DC)
8
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.7874
Depth of cut maximum - millimeter (APMX)
20
EDP number
46706585
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
N - Non-ferrous metals
MID number
6706585
Mill Profile
W - Non-ferrous Cutter Type for Soft Malleable Materials
Neck diameter - inch (DN)
0.2913
Neck diameter - millimeter (DN)
7.4
Ordering code ANSI
S6118.0
Overall length - inch (OAL)
3.1496
Overall length - millimeter (OAL)
80
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
20
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
40
Dormer’s range of carbide milling cutters includes S611 2-flute slot drills, with a long reach flute design, providing high rigidity for milling and profiling in hard to reach areas.
Manufactured from premium carbide, you will get great performance and a long tool life, whilst the bright polished finish will make sure you get a clean and accurate result by preventing workpiece material from sticking to the cutting edges of the tools.
S611 2-flute carbide slot drills have a high hook geometry for high performance machining in soft materials and the design means these tools are specifically for milling in non-ferrous materials such as aluminium
