Dormer S6144.0XD4 8030297 End Mill
MODEL 8030297
$48.65 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

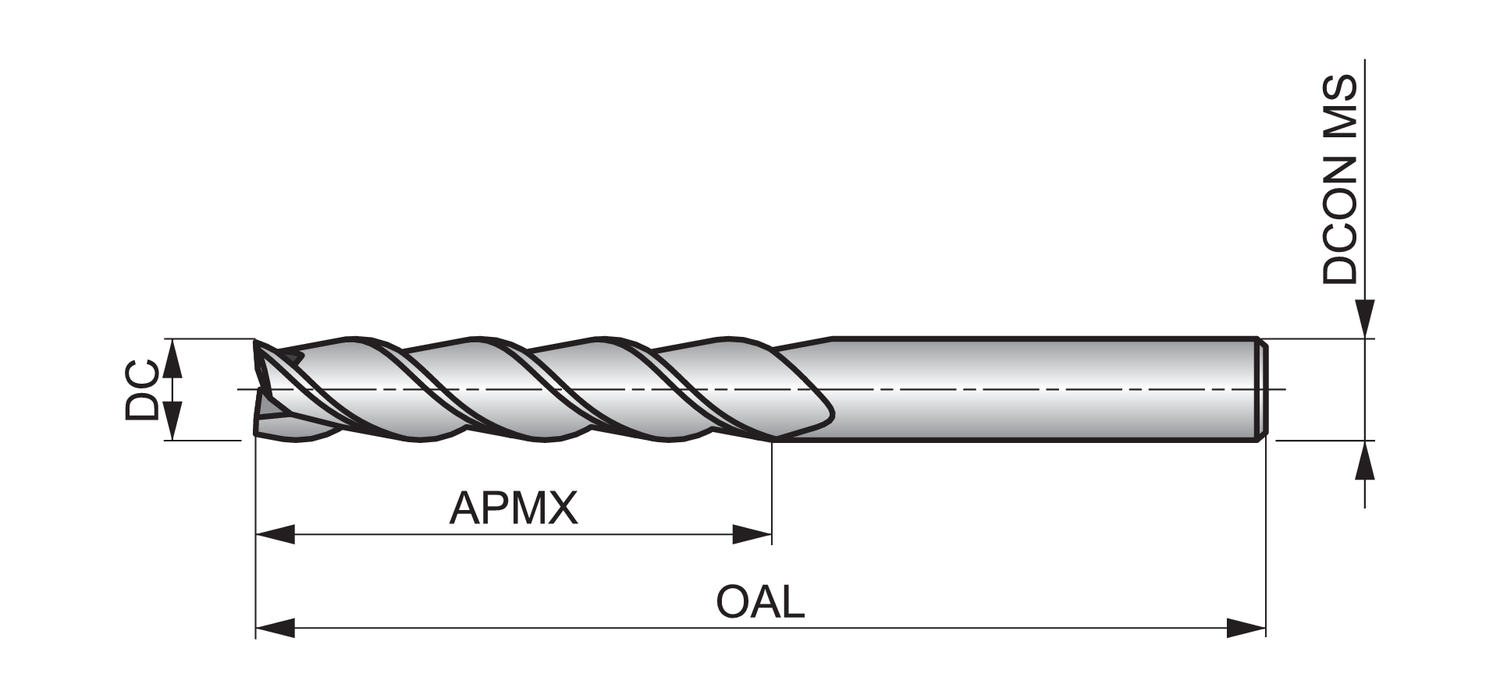

Connection diameter - inch (DCON MS)
0.1575
Connection diameter - millimeter (DCON MS)
4
Cut length
Extra long
Cutting diameter - inch (DC)
0.1575
Cutting diameter - millimeter (DC)
4
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.748
Depth of cut maximum - millimeter (APMX)
19
EDP number
8030297
Flute count (NOF)
3
Flute helix angle (FHA)
40
Material application
N - Non-ferrous metals
Material code (BMC)
HM
MID number
8030297
Mill Profile
W - Non-ferrous Cutter Type for Soft Malleable Materials
Ordering code ANSI
S6144.0XD4
Overall length - inch (OAL)
2.3622
Overall length - millimeter (OAL)
60
Radial rake angle (GAMF)
13
Shank
Cylindrical shank DIN 6535 HA
Part of Dormer’s extensive range of milling cutters, S614 long series 3-flute cutters enable deeper walls and pockets to be machined.
The three flute design improves metal removal rate at higher cutting speeds whilst the positive geometry gives you smooth cutting action, great for high performance on non-ferrous materials.
S614 milling cutters come with a specific design, capable of contouring walls with high accuracy, and will give clean and accurate results, thanks to the bright finish which reduces friction and prevents workpiece material from sticking to the cutting edges of the tool
