Dormer S62910.0 6706535 Ball-Nosed End Mill 10.00 mm
MODEL 6706535
$109.29 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

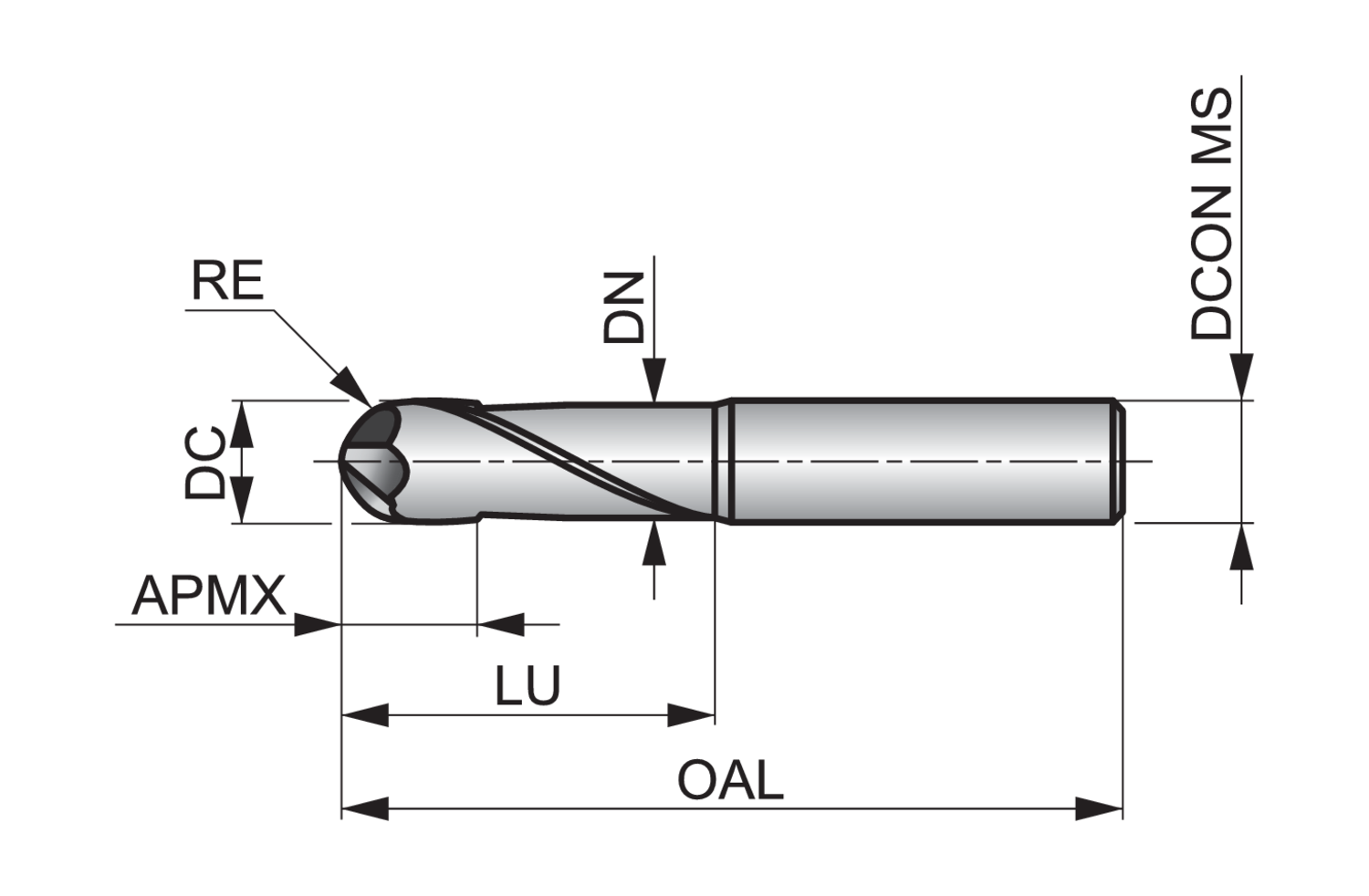

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Corner radius - inch (RE)
0.1969
Corner radius - millimeter (RE)
5
Cut length
Extra short
Cutting diameter - inch (DC)
0.3937
Cutting diameter - millimeter (DC)
10
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.4724
Depth of cut maximum - millimeter (APMX)
12
EDP number
46706535
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
N - Non-ferrous metals
MID number
6706535
Mill Profile
W - Non-ferrous Cutter Type for Soft Malleable Materials
Neck diameter - inch (DN)
0.3622
Neck diameter - millimeter (DN)
9.2
Ordering code ANSI
S62910.0
Overall length - inch (OAL)
2.9528
Overall length - millimeter (OAL)
75
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
15
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
35
S629 2-flute milling cutters from Dormer are manufactured from premium carbide with superior performance and extended tool life.
The bright polished finish prevents workpiece material from sticking to the cutting edges of the tool to ensure you get a cleaner, more accurate result.
The short, 2-flute design makes for a highly rigid tool for increased strength and reduced vibration, whilst the ball nose geometry makes them ideal for high performance contouring of complex surfaces.
The S629 ball nose milling cutter is specifically intended for milling in non-ferrous materials such as aluminium
