Image for Illustration purposes only. Actual product may vary
Dormer S63820.3 6706885 End Mill 20.30 mm
MODEL 6706885
$414.81 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Polished

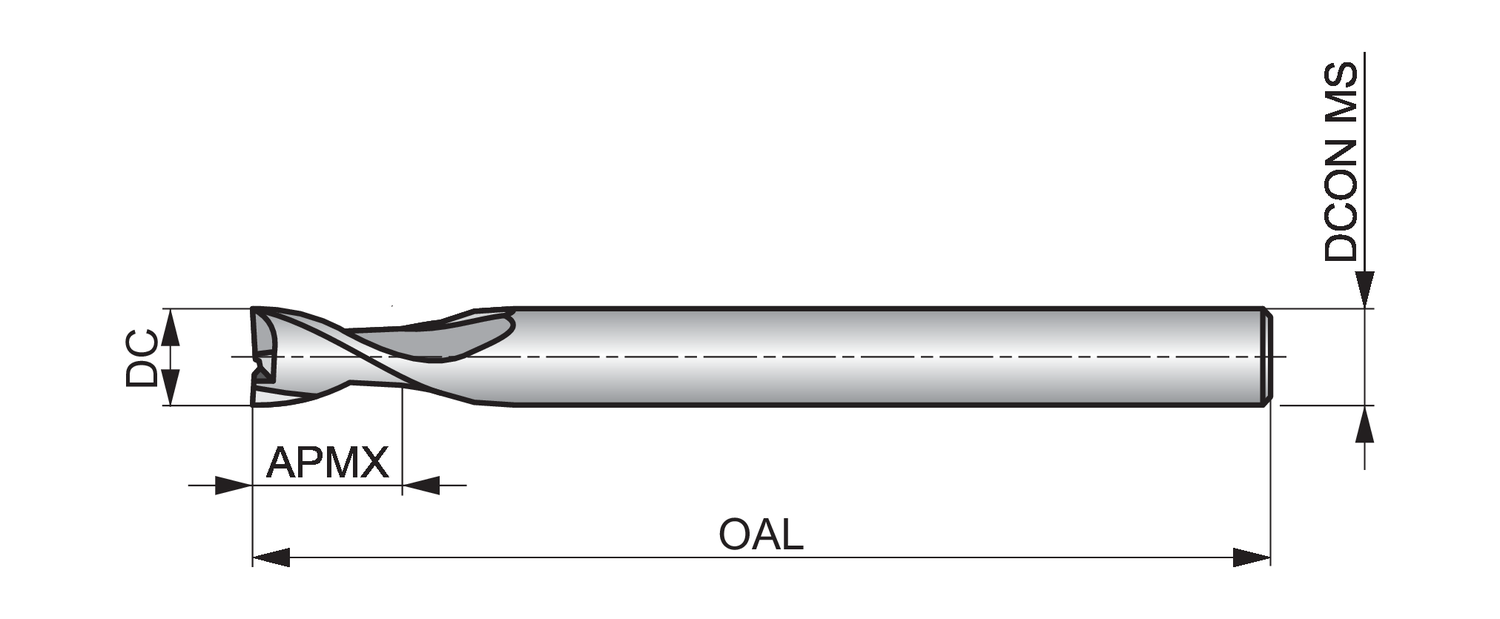

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Corner radius - inch (RE)
0.0039
Corner radius - millimeter (RE)
0.1
Cut length
Extra short
Cutting diameter - inch (DC)
0.7992
Cutting diameter - millimeter (DC)
20.3
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.9843
Depth of cut maximum - millimeter (APMX)
25
EDP number
46706885
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
N - Non-ferrous metals
MID number
6706885
Mill Profile
W - Non-ferrous Cutter Type for Soft Malleable Materials
Ordering code ANSI
S63820.3
Overall length - inch (OAL)
4.9213
Overall length - millimeter (OAL)
125
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
20
Shank
Cylindrical shank DIN 6535 HA
S638 2-flute milling cutters are one of the many tools in Dormer’s range of carbide cutters.
They have a long reach, reduced shank which provides shank clearance when machining against deep walls, and a high hook geometry which gives you high performance machining in soft materials.
The premium carbide used in manufacture ensures great performance and a long tool life, whilst the bright polished finish will make sure you get a clean, accurate result be preventing workpiece material from sticking to the cutting edges of the tool.
S638 2-flute milling cutters are application products – designed specifically for milling in aluminium and other non-ferrous materials
