8030327

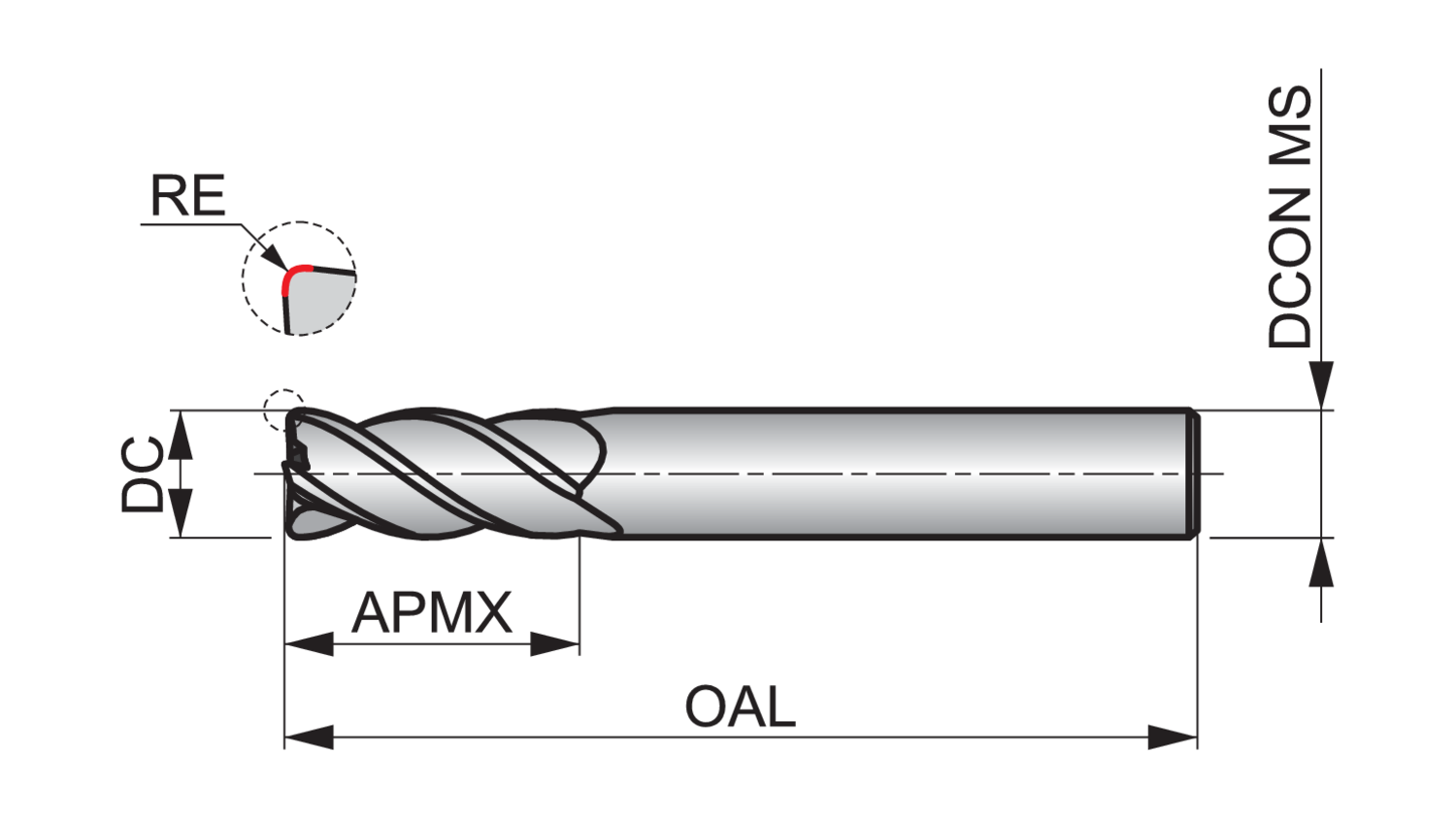

Image for Illustration purposes only. Actual product may vary

View in markdown

Dormer S66212.0XR2.0 8030327 square end mill with 12.0mm cutting diameter and 2.0mm corner radius. Designed for N non-ferrous metals. Corner radius geometry for improved edge strength and reduced chipping in aluminum and other non-ferrous alloys.

MODEL 8030327

SKU

6078746

WEIGHT

0.253 lb

UOM

each

$171.57 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Basic Standard

DORMER

Coating

Bright

Connection diameter - inch (DCON MS)

0.4724

Connection diameter - millimeter (DCON MS)

12

Corner radius - inch (RE)

0.0787

Corner radius - millimeter (RE)

2

Cut length

Short

Cutting diameter - inch (DC)

0.4724

Cutting diameter - millimeter (DC)

12

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

1.0236

Depth of cut maximum - millimeter (APMX)

26

EDP number

8030327

Flute count (NOF)

4

Flute helix angle (FHA)

40

Material application

N - Non-ferrous metals

Material code (BMC)

HM

MID number

8030327

Mill Profile

W - Non-ferrous Cutter Type for Soft Malleable Materials

Ordering code ANSI

S66212.0XR2.0

Overall length - inch (OAL)

3.2677

Overall length - millimeter (OAL)

83

Radial rake angle (GAMF)

10

Shank

Cylindrical shank DIN 6535 HA

With a corner radius to reduce chipping and improve tool life, S622 milling cutters from Dormer have a positive geometry giving smooth cutting for high performance milling of non-ferrous materials.

They are capable of slotting, ramping, plunging and contouring, and will give clean and accurate results thanks to the bright finish which prevents workpiece material from sticking to the cutting edges of the tool and also reduces friction.

S662 cutters come with a differential pitch to reduce chatter and vibrations for improved surface finish and tool life
