Image for Illustration purposes only. Actual product may vary
Dormer S7103.0 6706986 End Mill 3.00 mm
MODEL 6706986
$40.60 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlCrN
Coating property (CTP)
1

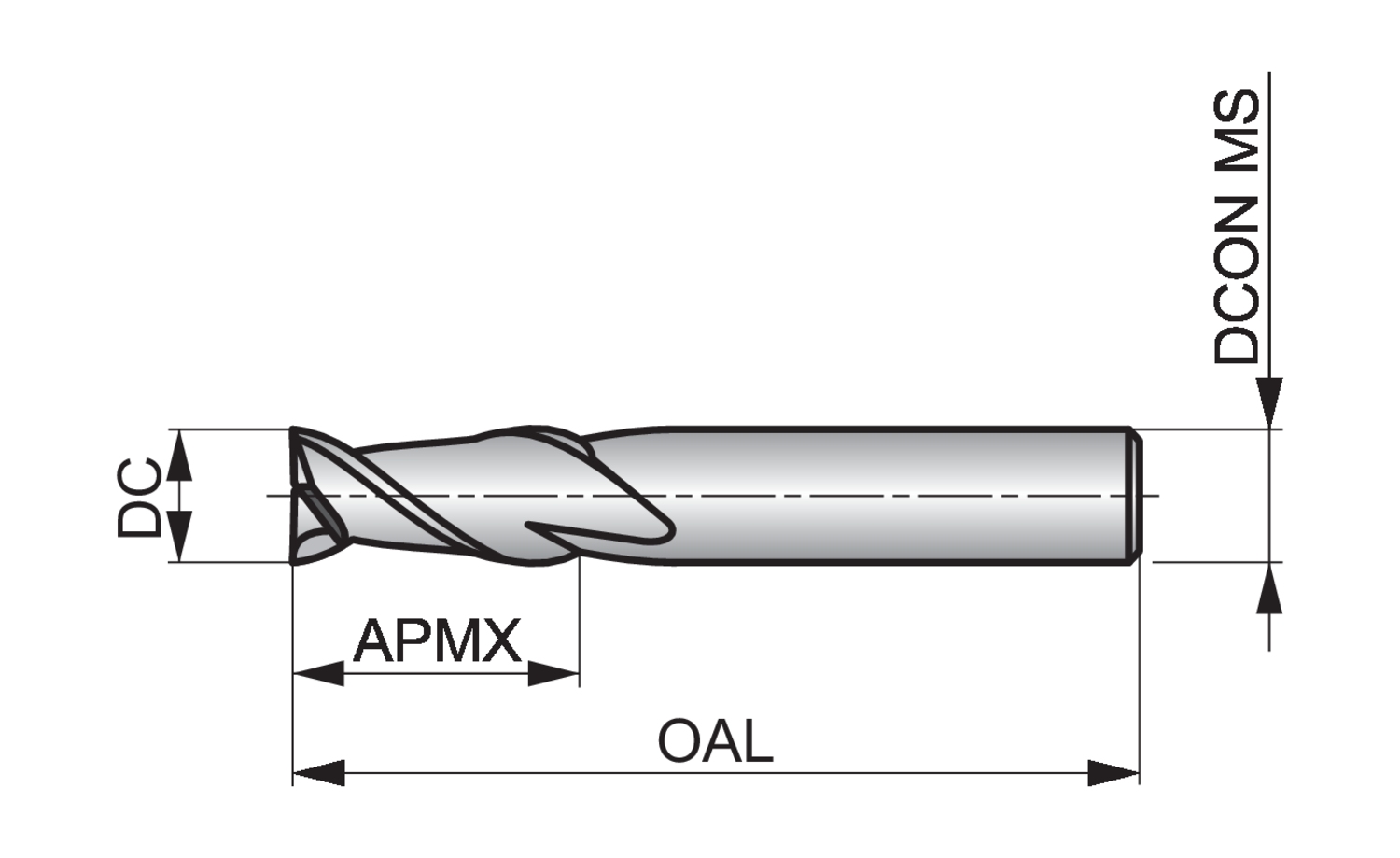

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Cut length
Short
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.3543
Depth of cut maximum - millimeter (APMX)
9
EDP number
46706986
Flute count (NOF)
2
Flute helix angle (FHA)
40
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6706986
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S7103.0
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
10
Shank
Cylindrical shank DIN 6535 HA
S710 2-flute milling cutters are very versatile and can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron.
They have an aluminium chrome nitride coating which increases the life of the tools and gives improved performance when milling difficult to machine materials.
Manufactured from premium carbide to further extend tool life and give you great performance, they have a medium length flute design which gives the high rigidity needed for milling standard slots.
S710 2-flute milling cutters come with a 40 degree helix, designed to give you high performance slotting on CNC machines
