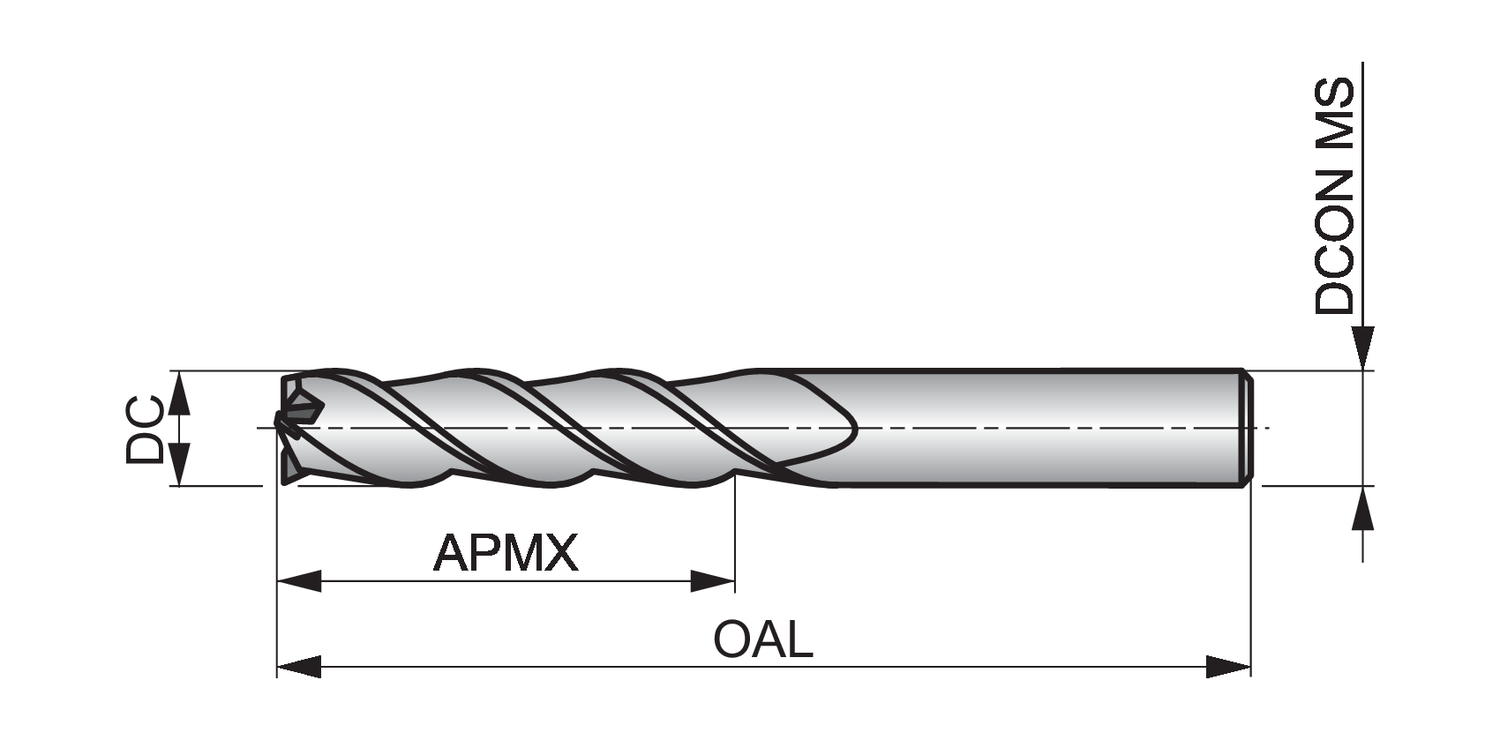

Dormer S71416.0 6706624 square end mill, 16.00mm cutting diameter, 3-flute, solid carbide (HM), 40° helix angle, 57mm max depth of cut, 16mm shank. Suitable for cast iron, stainless steel, steel, and high-temperature alloys. DORMER standard.

Basic Standard

DORMER

Coating

AlCrN

Coating property (CTP)

1

Connection diameter - inch (DCON MS)

0.6299

Connection diameter - millimeter (DCON MS)

16

Cut length

Long

Cutting diameter - inch (DC)

0.6299

Cutting diameter - millimeter (DC)

16

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

2.2441

Depth of cut maximum - millimeter (APMX)

57

EDP number

46706624

Flute count (NOF)

3

Flute helix angle (FHA)

40

Material

HM

Material application

K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys

MID number

6706624

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S71416.0

Overall length - inch (OAL)

4.9213

Overall length - millimeter (OAL)

125

Peripheral effective cutting edge count (ZEFP)

3

Radial rake angle (GAMF)

10

Shank

Cylindrical shank DIN 6535 HA
