Image for Illustration purposes only. Actual product may vary
Dormer S71612.0 7002469 End Mill 12.00 mm
MODEL 7002469
$128.09 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlCrN
Coating property (CTP)
1

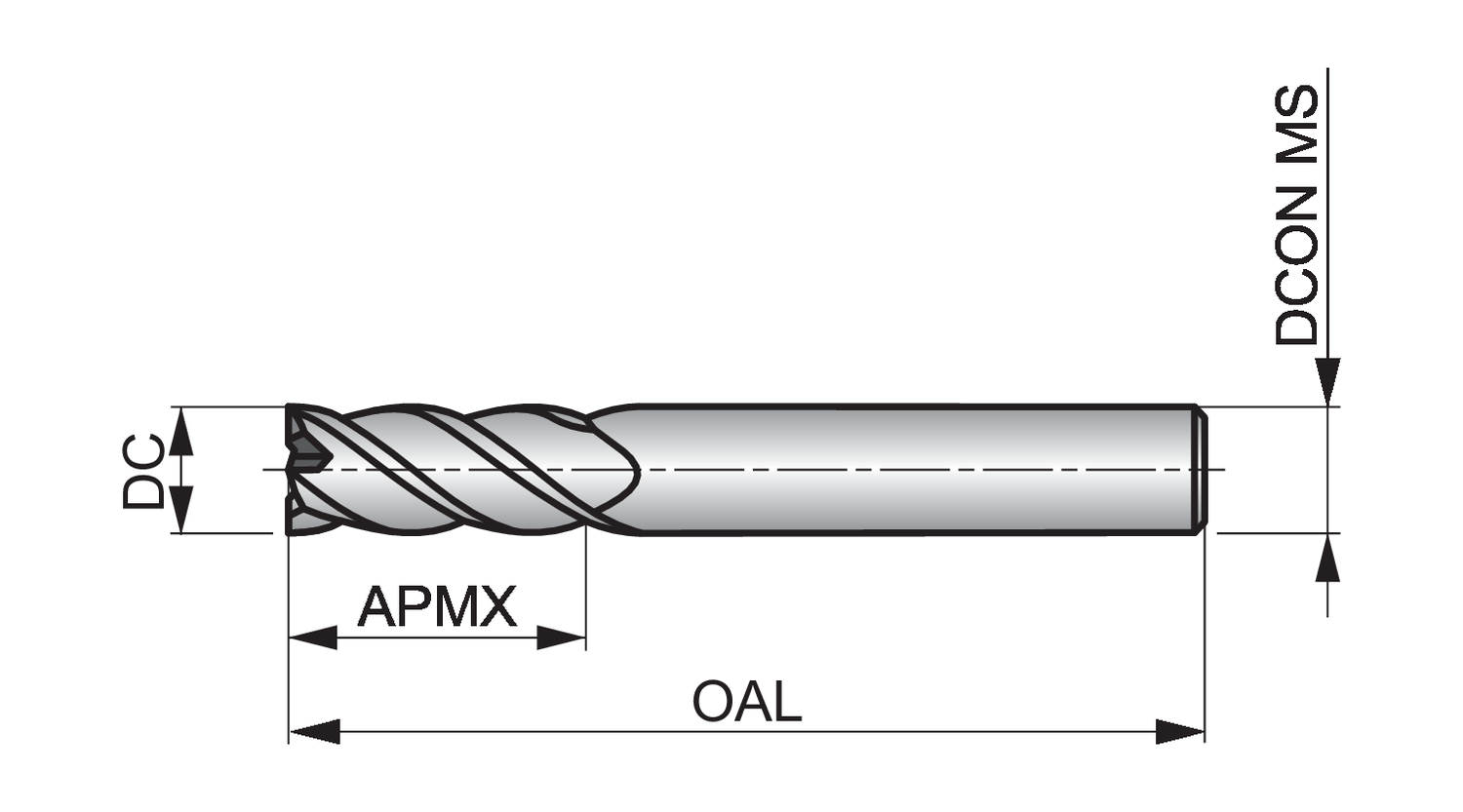

Connection diameter - inch (DCON MS)
0.4724
Connection diameter - millimeter (DCON MS)
12
Cut length
Short
Cutting diameter - inch (DC)
0.4724
Cutting diameter - millimeter (DC)
12
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.9843
Depth of cut maximum - millimeter (APMX)
25
EDP number
47002469
Flute count (NOF)
4
Flute helix angle (FHA)
40
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
7002469
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S71612.0
Overall length - inch (OAL)
2.9528
Overall length - millimeter (OAL)
75
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
10
Shank
Cylindrical shank DIN 6535 HA
S716 4-flute milling cutters are manufactured from premium carbide for extended tool life and great performance.
The aluminium nitride coating further improves tool life and gives better performance when milling difficult to machine materials.
The tools are suitable for plunging, ramping and profile milling in stainless steels, cast iron and steels and have a medium length flute, designed to provide good rigidity for standard profile milling.
S716 milling cutters have a 40 degree helix which makes them great for high performance slotting and profiling on CNC machines
