Dormer S71710.0 6706704 square end mill, 10.00mm cutting diameter, 4-flute, solid carbide (HM), 40° helix angle, 10mm shank, 31mm max depth of cut. Suitable for K (cast iron), M (stainless steel), P (steel/cast steel), and S (high-temperature alloys) materials. DORMER standard.

Basic Standard

DORMER

Coating

AlCrN

Coating property (CTP)

1

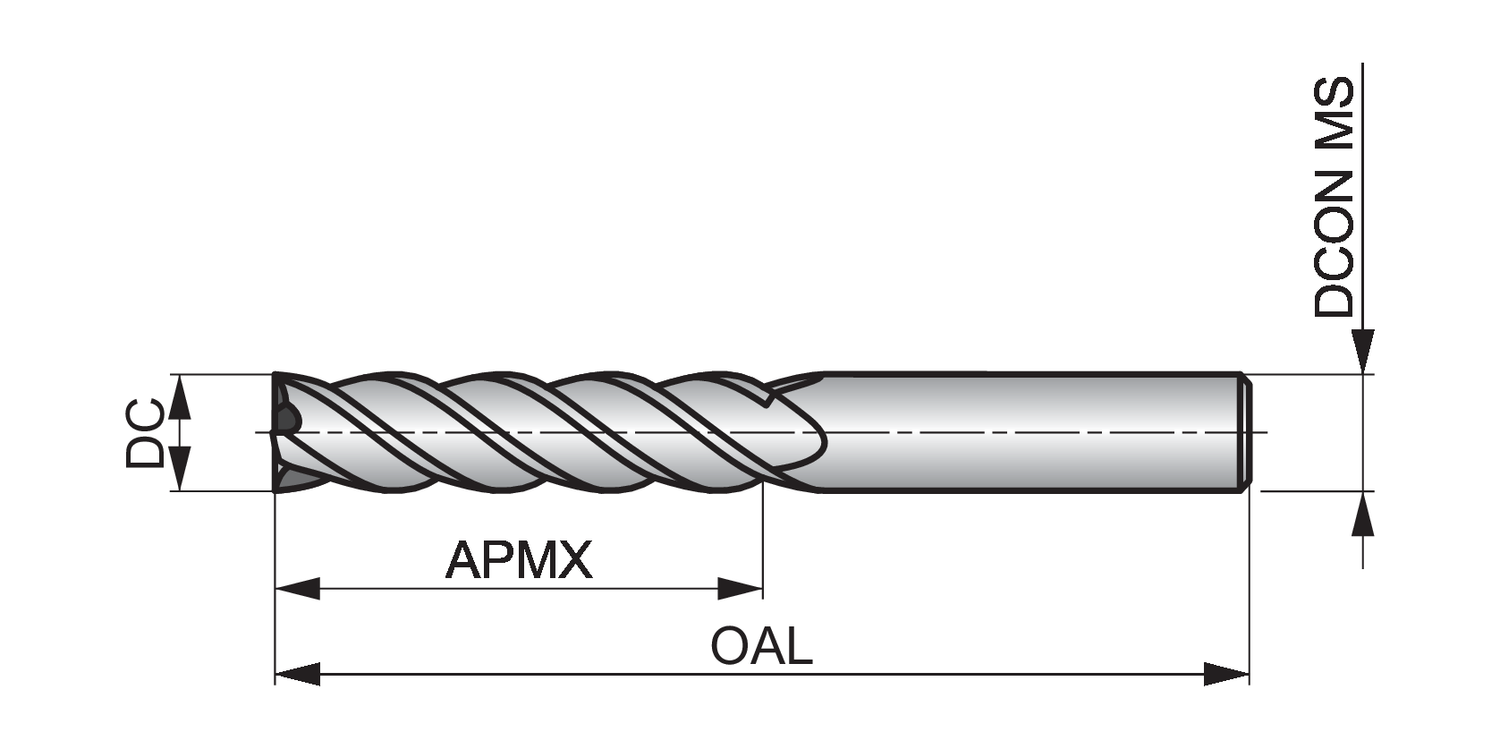

Connection diameter - inch (DCON MS)

0.3937

Connection diameter - millimeter (DCON MS)

10

Cut length

Long

Cutting diameter - inch (DC)

0.3937

Cutting diameter - millimeter (DC)

10

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

1.2205

Depth of cut maximum - millimeter (APMX)

31

EDP number

46706704

Flute count (NOF)

4

Flute helix angle (FHA)

40

Material

HM

Material application

K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys

MID number

6706704

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S71710.0

Overall length - inch (OAL)

2.9528

Overall length - millimeter (OAL)

75

Peripheral effective cutting edge count (ZEFP)

4

Radial rake angle (GAMF)

10

Shank

Cylindrical shank DIN 6535 HA
