Dormer S71716.0 6706707 square end mill, 16.00mm cutting diameter, 4-flute, solid carbide (HM), 40° helix angle, 10° radial rake, 57mm max depth of cut, 16mm shank. Suitable for K (cast iron), M (stainless steel), P (steel/cast steel), and S (high-temperature alloys) materials. DORMER standard.

Basic Standard

DORMER

Coating

AlCrN

Coating property (CTP)

1

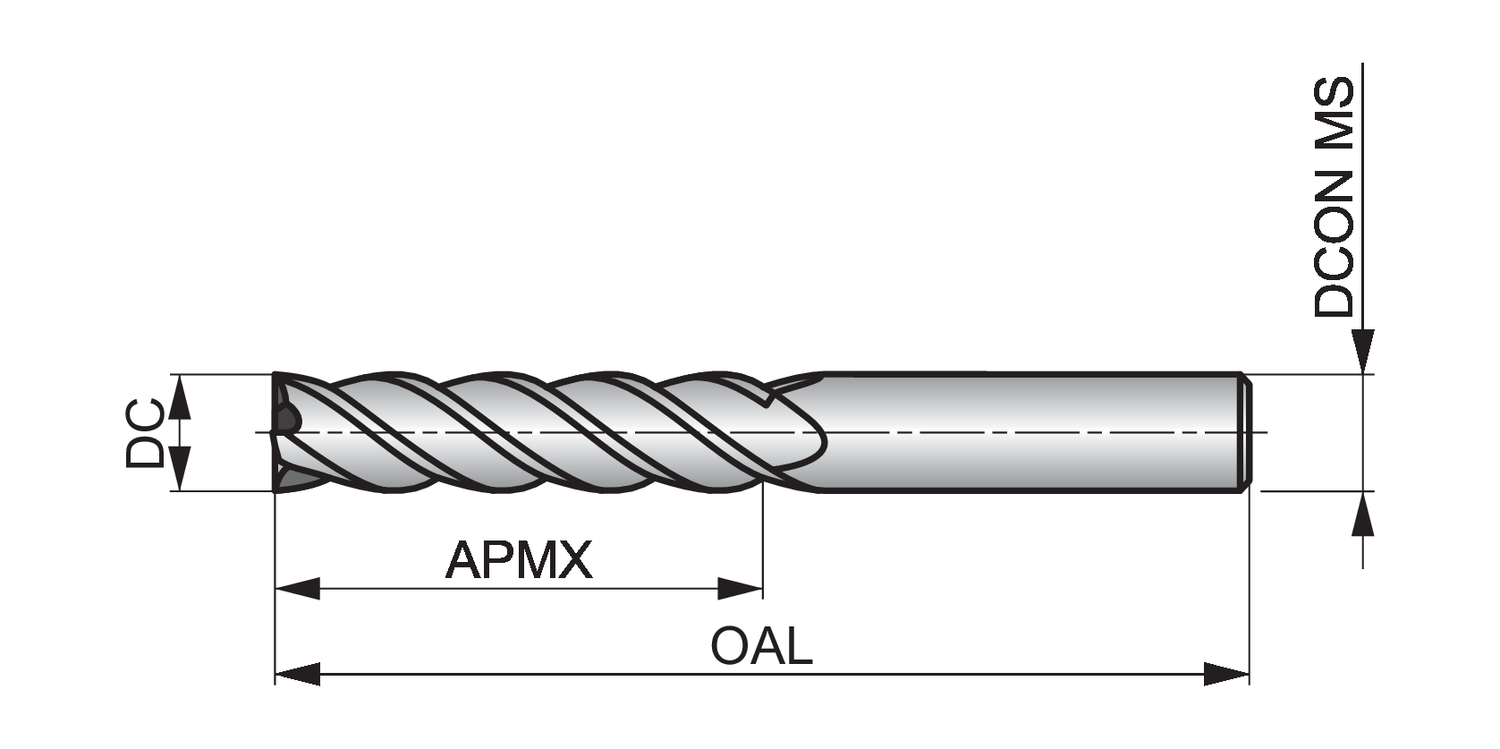

Connection diameter - inch (DCON MS)

0.6299

Connection diameter - millimeter (DCON MS)

16

Cut length

Long

Cutting diameter - inch (DC)

0.6299

Cutting diameter - millimeter (DC)

16

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

2.2441

Depth of cut maximum - millimeter (APMX)

57

EDP number

46706707

Flute count (NOF)

4

Flute helix angle (FHA)

40

Material

HM

Material application

K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys

MID number

6706707

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S71716.0

Overall length - inch (OAL)

4.9213

Overall length - millimeter (OAL)

125

Peripheral effective cutting edge count (ZEFP)

4

Radial rake angle (GAMF)

10

Shank

Cylindrical shank DIN 6535 HA
