Dormer S71816.0 6706777 square end mill, 16.00mm cutting diameter, 4-flute, solid carbide (HM), 40° helix angle, 10° radial rake, 75mm max depth of cut, 16mm shank. Suitable for K (cast iron), M (stainless steel), P (steel/cast steel), and S (high-temperature alloys) materials. DORMER standard.

Name: Dormer S71816.0 6706777 square end mill, 16.00mm cutting diameter, 4-flute, solid carbide (HM), 40° helix angle, 10° radial rake, 75mm max depth of cu
Brand: Dormer Pramet
Price: 406.0 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 6706777

BRAND

Dormer Pramet

SKU

6078840

WEIGHT

0.849 lb

UOM

each

$406.00 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Coating

AlCrN

Coating property (CTP)

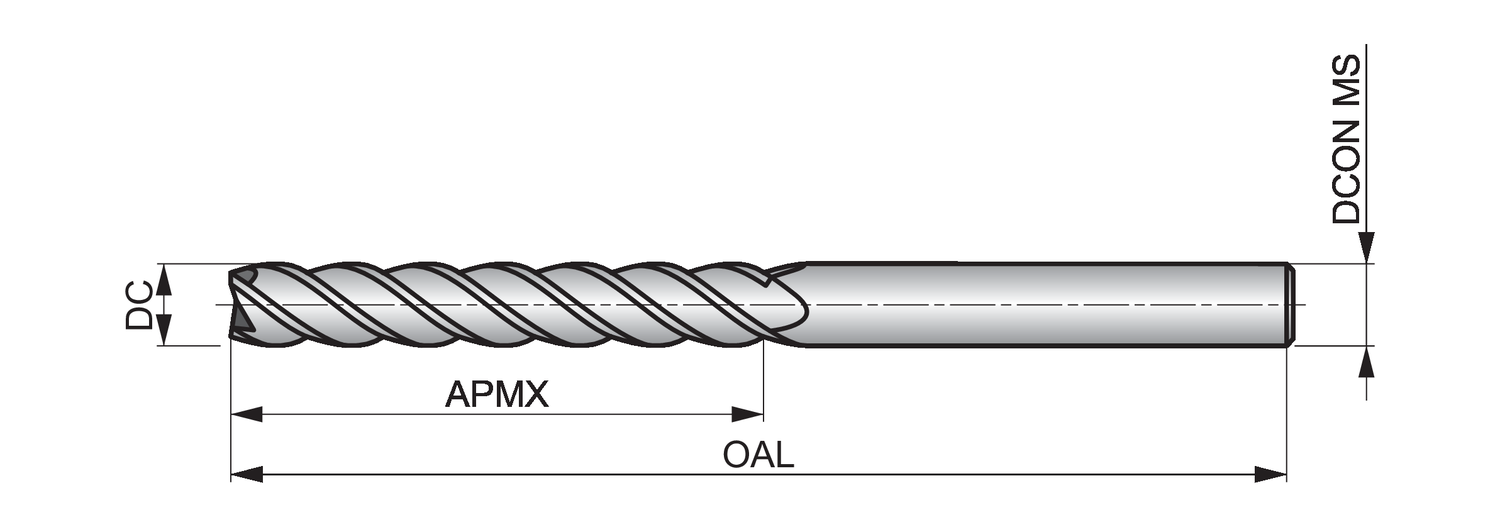

Connection diameter - inch (DCON MS)

0.6299

Connection diameter - millimeter (DCON MS)

Cut length

Extra long

Cutting diameter - inch (DC)

0.6299

Cutting diameter - millimeter (DC)

Cutting diameter tolerance class (TCDC)

Depth of cut maximum - inch (APMX)

2.9528

Depth of cut maximum - millimeter (APMX)

EDP number

46706777

Flute count (NOF)

Flute helix angle (FHA)

Material

Material application

K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys

MID number

6706777

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S71816.0

Overall length - inch (OAL)

5.9055

Overall length - millimeter (OAL)

150

Peripheral effective cutting edge count (ZEFP)

Radial rake angle (GAMF)

Shank

Cylindrical shank DIN 6535 HA

S718 4-flute cutters are part of the Dormer range of carbide milling cutters.

Manufactured from premium carbide, the tools will provide superior performance and a long tool life, whilst the aluminium chrome nitride coating further improves performance and extends tool life.

The cutters are suitable for plunging, ramping and profile milling in steels, stainless steels and cast iron.

With an extra long series flute design, S718 milling cutters provide the rigidity needed for profile milling deep walls, whilst the 40 degree helix will ensure high performance profiling on CNC machines
