Dormer S722HB4.0 8030352 End Mill
MODEL 8030352
$62.87 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlCrN

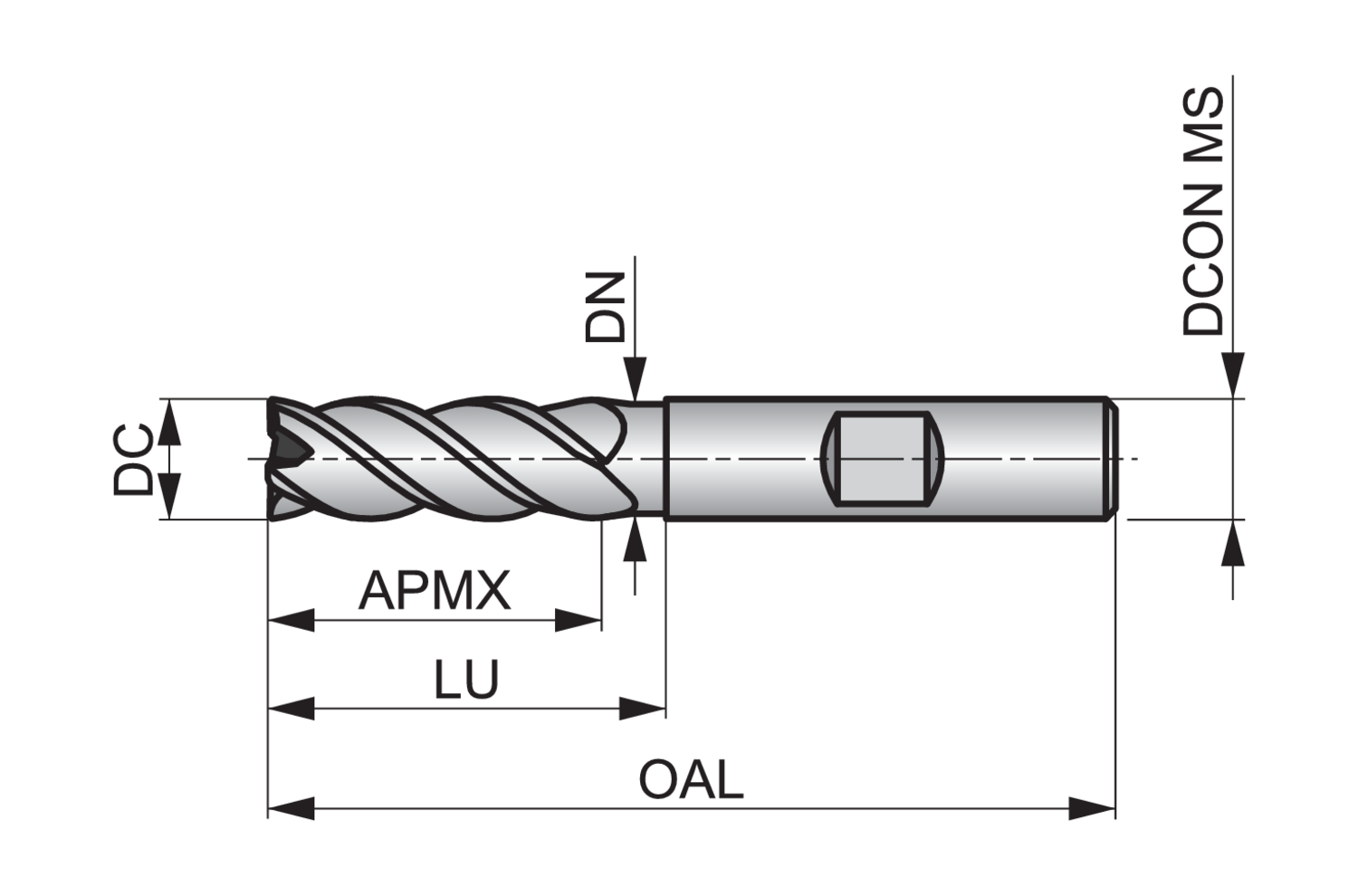

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Corner radius - inch (RE)
0.0039
Corner radius - millimeter (RE)
0.1
Cut length
Medium
Cutting diameter - inch (DC)
0.1575
Cutting diameter - millimeter (DC)
4
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.4331
Depth of cut maximum - millimeter (APMX)
11
EDP number
8030352
Flute count (NOF)
4
Flute helix angle (FHA)
40
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
Material code (BMC)
HM
MID number
8030352
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.1457
Neck diameter - millimeter (DN)
3.7
Ordering code ANSI
S722HB4.0
Overall length - inch (OAL)
2.2441
Overall length - millimeter (OAL)
57
Radial rake angle (GAMF)
7
Shank
Cylindrical shank DIN 6535 HB
Usable Length - millimeter (LU)
20
S722HB milling cutters have a DIN 6535 HB shank for secure holding to achieve high metal removal rates, with a very versatile design for slotting, ramping, plunging and contouring.
The aluminium chromium nitride coating reduces friction and provides excellent wear resistance for increased tool life, whilst the positive geometry results in a smooth cutting action to cut down on work hardening.
S722HB milling cutters have a neck recess so the tool avoids contact with the walls when shoulder milling
