Dormer S73912.0 6706892 12mm cutting diameter solid carbide square end mill with 2 flutes and 40° helix angle. 60° tool cutting edge angle, 10° radial rake, h9 tolerance on cutting diameter, h6 shank tolerance. Suitable for chamfering applications in cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys.

Name: Dormer S73912.0 6706892 12mm cutting diameter solid carbide square end mill with 2 flutes and 40° helix angle. 60° tool cutting edge angle, 10° radial
Brand: Dormer Pramet
Price: 178.62 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 6706892

BRAND

Dormer Pramet

SKU

6078860

WEIGHT

0.227 lb

UOM

each

$178.62 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Coating

AlTiN

Coating property (CTP)

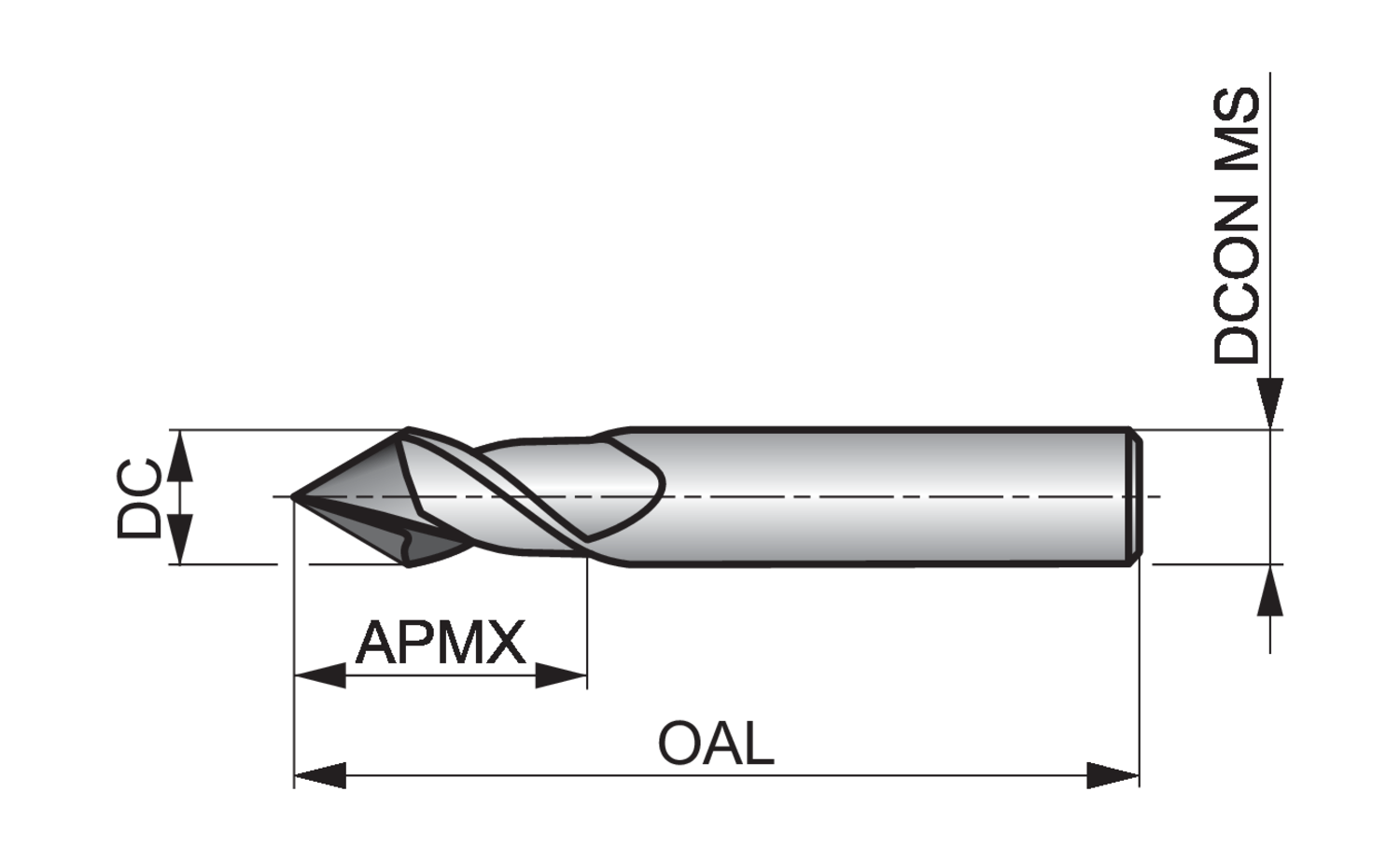

Connection diameter - inch (DCON MS)

0.4724

Connection diameter - millimeter (DCON MS)

Connection diameter tolerance machine side (TCDCONMS)

Cut length

Short

Cutting diameter - inch (DC)

0.4724

Cutting diameter - millimeter (DC)

Cutting diameter tolerance class (TCDC)

Depth of cut maximum - inch (APMX)

0.9843

Depth of cut maximum - millimeter (APMX)

EDP number

46706892

Flute count (NOF)

Flute helix angle (FHA)

Material

MID number

6706892

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S73912.0

Overall length - inch (OAL)

2.9528

Overall length - millimeter (OAL)

Peripheral effective cutting edge count (ZEFP)

Radial rake angle (GAMF)

Shank

Cylindrical shank DIN 6535 HA

Tool cutting edge angle (KAPR)

Dormer’s S739 2-flute chamfer mills have a 60 degree point for high performance chamfer milling on CNC machines and a short 2-flute design, providing high rigidity for increased strength and reduced vibration.

Made from premium carbide giving superior performance and longer tool life, the tools have an aluminium titanium nitride coating which prevents workpiece material from sticking to the cutting surfaces of the tool so you get clean, accurate results.

S739 2-flute milling cutters are suitable for contour milling in steels, stainless steels and cast irons
