6706843

Image for Illustration purposes only. Actual product may vary

View in markdown

Dormer S7633.0XR0.3 6706843 square end mill with corner radius, 3.00mm cutting diameter, 0.3mm corner radius, 4 flutes, solid carbide (HM), 40° helix angle. Suitable for K (cast iron), M (stainless steel), P (steel/cast steel), and S (high-temperature alloys) materials. DORMER standard, 9mm max depth of cut.

MODEL 6706843

SKU

6078899

WEIGHT

0.015 lb

UOM

each

$84.02 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Basic Standard

DORMER

Coating

AlCrN

Coating property (CTP)

1

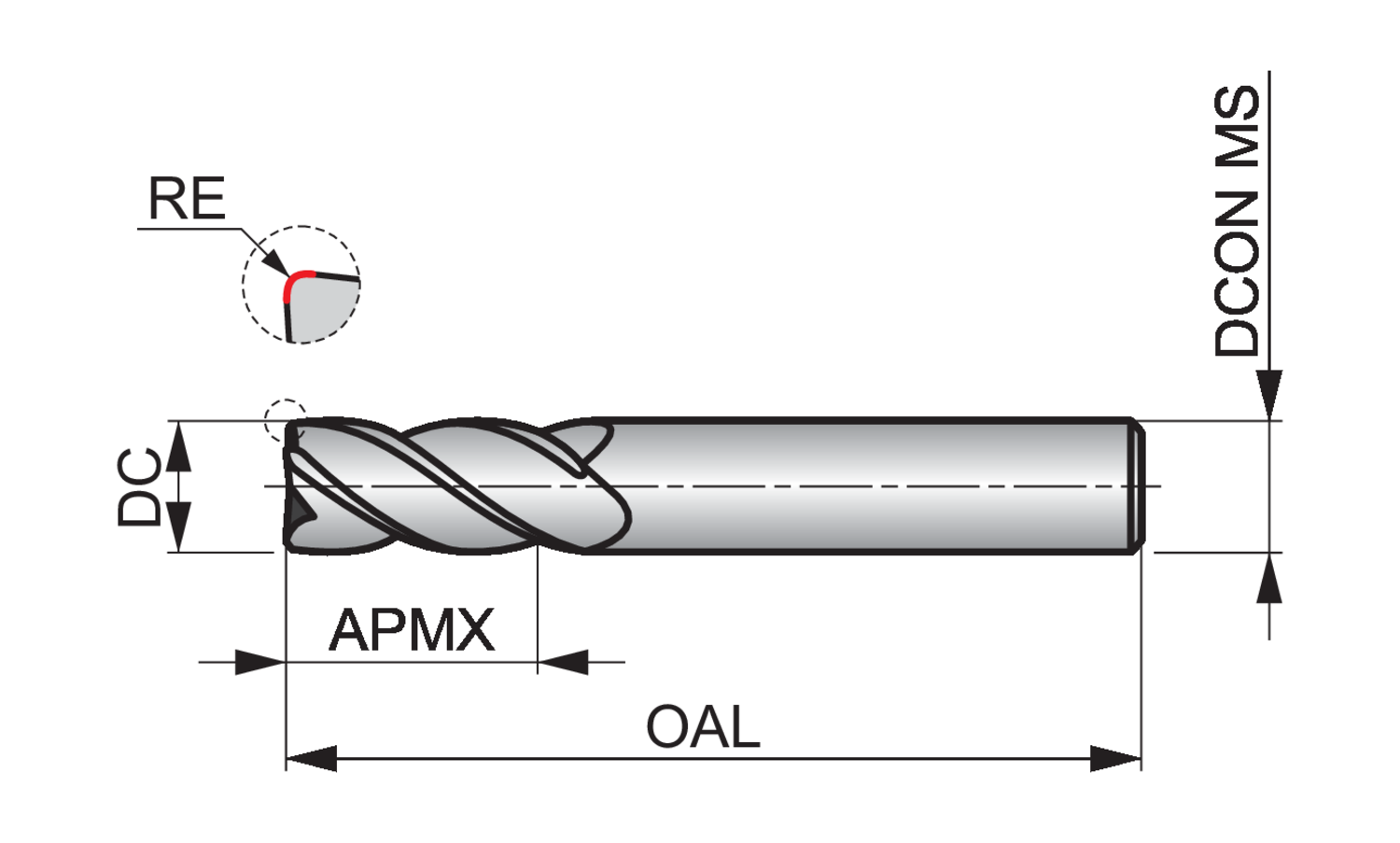

Connection diameter - inch (DCON MS)

0.1181

Connection diameter - millimeter (DCON MS)

3

Corner radius - inch (RE)

0.0118

Corner radius - millimeter (RE)

0.3

Cut length

Short

Cutting diameter - inch (DC)

0.1181

Cutting diameter - millimeter (DC)

3

Cutting diameter tolerance class (TCDC)

h9

Cutting pitch differential (CPDF)

1

Depth of cut maximum - inch (APMX)

0.3543

Depth of cut maximum - millimeter (APMX)

9

EDP number

46706843

Flute count (NOF)

4

Flute helix angle (FHA)

40

Material

HM

Material application

K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys

MID number

6706843

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S7633.0XR0.3

Overall length - inch (OAL)

1.5748

Overall length - millimeter (OAL)

40

Peripheral effective cutting edge count (ZEFP)

4

Radial rake angle (GAMF)

10

Shank

Cylindrical shank DIN 6535 HA

Part of Dormer’s extensive range of carbide cutters, S763 4-flute milling cutters have a medium length flute with corner radius, giving high rigidity and making them perfect for standard profile milling where a fillet radius is required.

They are manufactured from premium carbide to give you longer tool life and improved performance, whilst the aluminium chrome nitride coating further improves performance when milling materials which are difficult to machine.

They come with a 40 degree helix with unequal flute divide which is designed to reduce vibration for a better surface finish when CNC machining.

Suitable for plunging, ramping and profile milling in stainless steels, steels and cast iron, S763 4-flute corner radius end mills are truly versatile products
