6707018

Image for Illustration purposes only. Actual product may vary

View in markdown

Dormer S7675.0XR0.5 6707018 square end mill with 5.00mm cutting diameter and 0.5mm corner radius, 4-flute solid carbide (HM) design for high-performance machining. Suitable for steel, stainless steel, cast iron, and high-temperature alloys. DORMER standard with unequal flute helix and differential cutting pitch for reduced vibration and improved surface finish.

MODEL 6707018

SKU

6078951

WEIGHT

0.057 lb

UOM

each

$107.52 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Basic Standard

DORMER

Coating

TiSiN

Coating property (CTP)

1

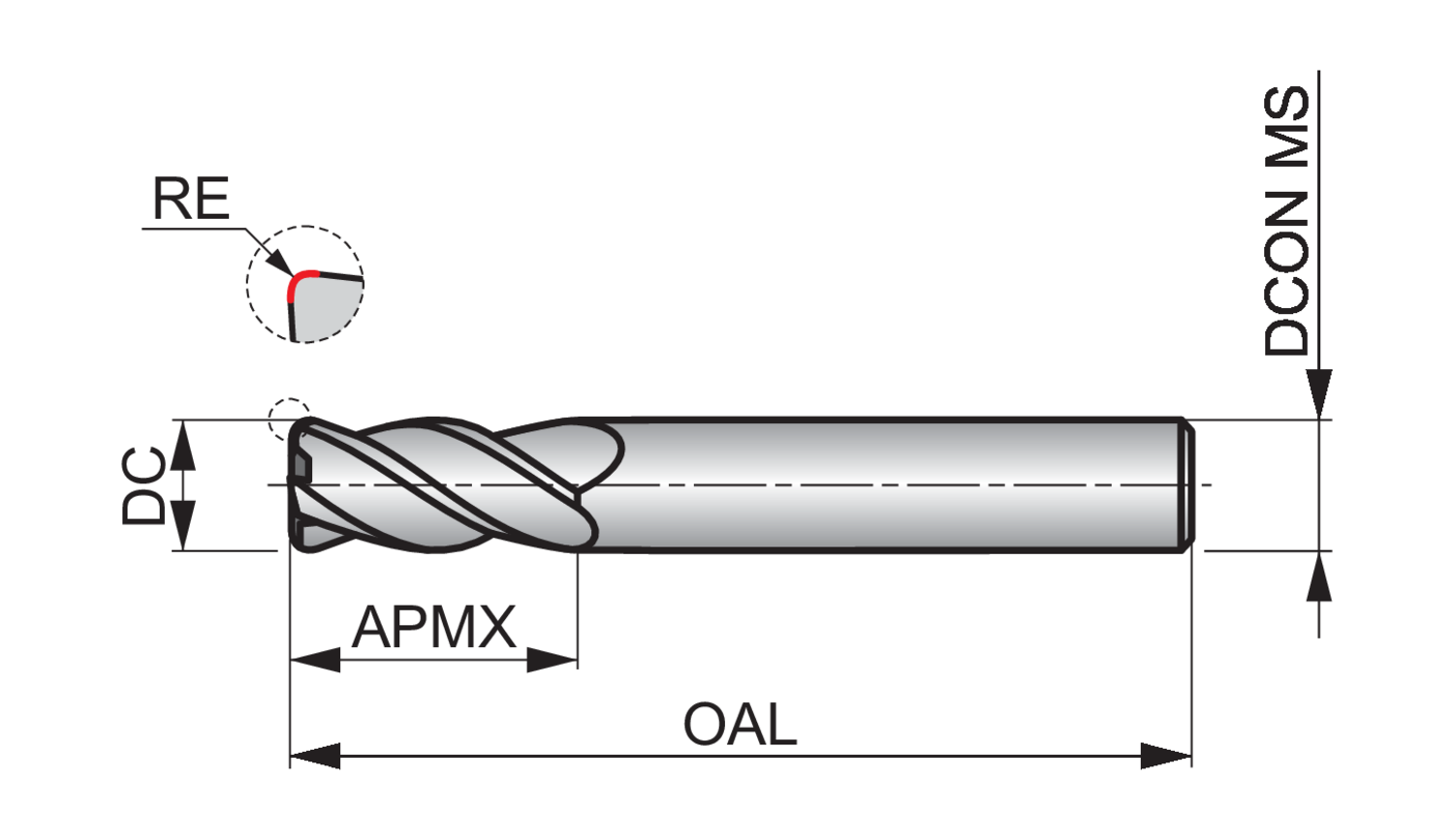

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

6

Corner radius - inch (RE)

0.0197

Corner radius - millimeter (RE)

0.5

Cut length

Short

Cutting diameter - inch (DC)

0.1969

Cutting diameter - millimeter (DC)

5

Cutting diameter tolerance class (TCDC)

h9

Cutting pitch differential (CPDF)

1

Depth of cut maximum - inch (APMX)

0.5118

Depth of cut maximum - millimeter (APMX)

13

EDP number

46707018

Flute count (NOF)

4

Flute helix unequal

1

Material

HM

Material application

K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys

MID number

6707018

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S7675.0XR0.5

Overall length - inch (OAL)

2.2441

Overall length - millimeter (OAL)

57

Peripheral effective cutting edge count (ZEFP)

4

Radial rake angle (GAMF)

10

Shank

Cylindrical shank DIN 6535 HA

S767 4-flute corner radius milling cutters have a medium length flute with corner radius, for high rigidity for standard profile milling where a fillet radius is needed.

They are manufactured from premium carbide for great performance and longer tool life, further improved by the titanium silicon nitride coating, which also gives great performance when milling materials which are difficult to machine.S767 milling cutters have both an unequal helix and unequal flute divide.

These features are designed to reduce vibration and improve surface finish when used in CNC machines.

S767 tools can be used for plunging, ramping and profile milling in stainless steels, cast iron and steels
