Dormer S772HB16.0 8030392 square end mill with 16mm cutting diameter, designed for trochoidal milling in cast iron, stainless steel, steel, and high-temperature alloys. Suitable for P, M, K, and S material groups.

Name: Dormer S772HB16.0 8030392 square end mill with 16mm cutting diameter, designed for trochoidal milling in cast iron, stainless steel, steel, and high-t
Brand: Dormer Pramet
Price: 397.78 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 8030392

BRAND

Dormer Pramet

SKU

6078976

WEIGHT

0.657 lb

UOM

each

$397.78 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Coating

AlCrN

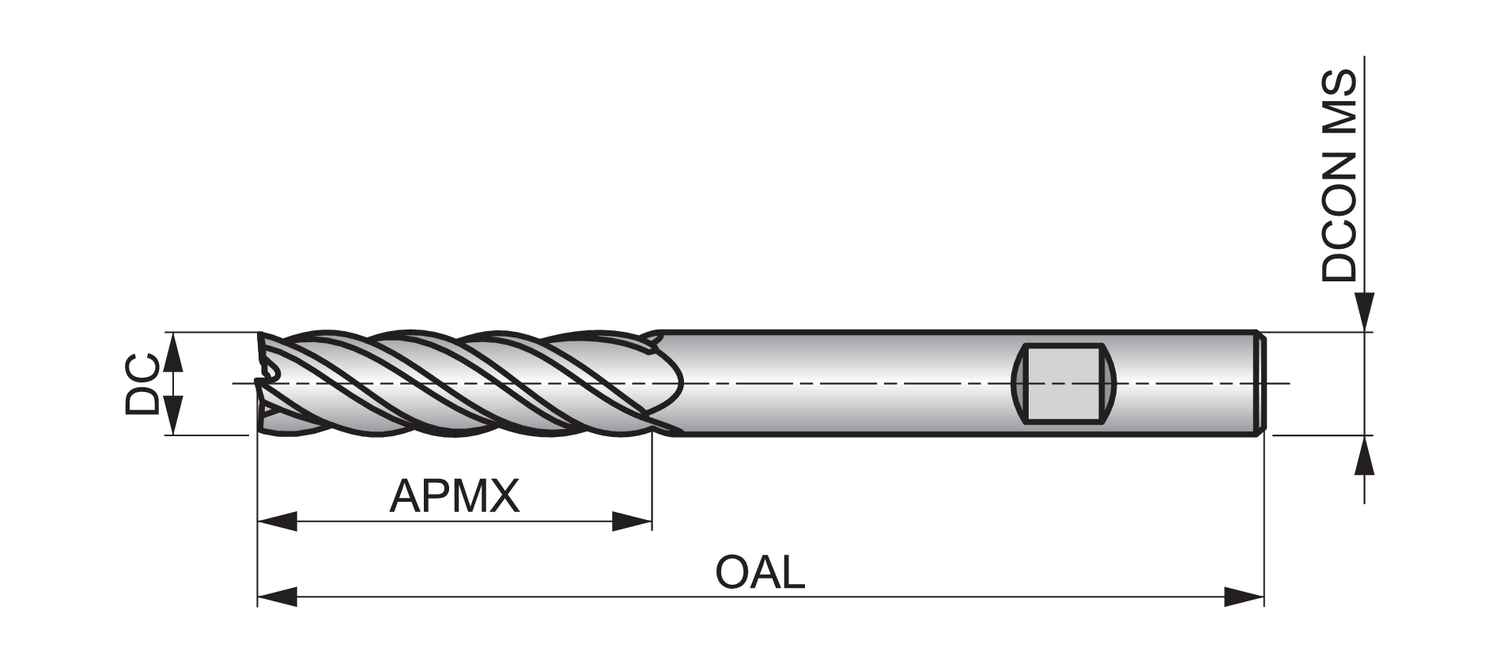

Connection diameter - inch (DCON MS)

0.6299

Connection diameter - millimeter (DCON MS)

Corner radius - inch (RE)

0.0118

Corner radius - millimeter (RE)

0.3

Cut length

Long

Cutting diameter - inch (DC)

0.6299

Cutting diameter - millimeter (DC)

Cutting diameter tolerance class (TCDC)

Depth of cut maximum - inch (APMX)

2.1654

Depth of cut maximum - millimeter (APMX)

EDP number

8030392

Flute count (NOF)

Flute helix unequal

Material application

K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys

Material code (BMC)

MID number

8030392

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S772HB16.0

Overall length - inch (OAL)

4.9213

Overall length - millimeter (OAL)

125

Radial rake angle (GAMF)

Shank

Cylindrical shank DIN 6535 HB

S772HB 5-flute milling cutters from Dormer come with positive geometry, promoting a smooth cutting action when machining stainless steels and super-alloys.

The unequal helix reduces chatter and vibrations for better surface finish and improved tool life, whilst the 5-flute design also helps reduce vibration at higher fed rates.

S772HB milling cutters come with a corner radius to reduce chipping and improve tool life, and have an aluminium chromium nitride coating to reduce friction and providing excellent wear resistance to increase tool life
