Dormer S79116.0 8030342 Barrel End Mill
MODEL 8030342
$418.93 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlCrN

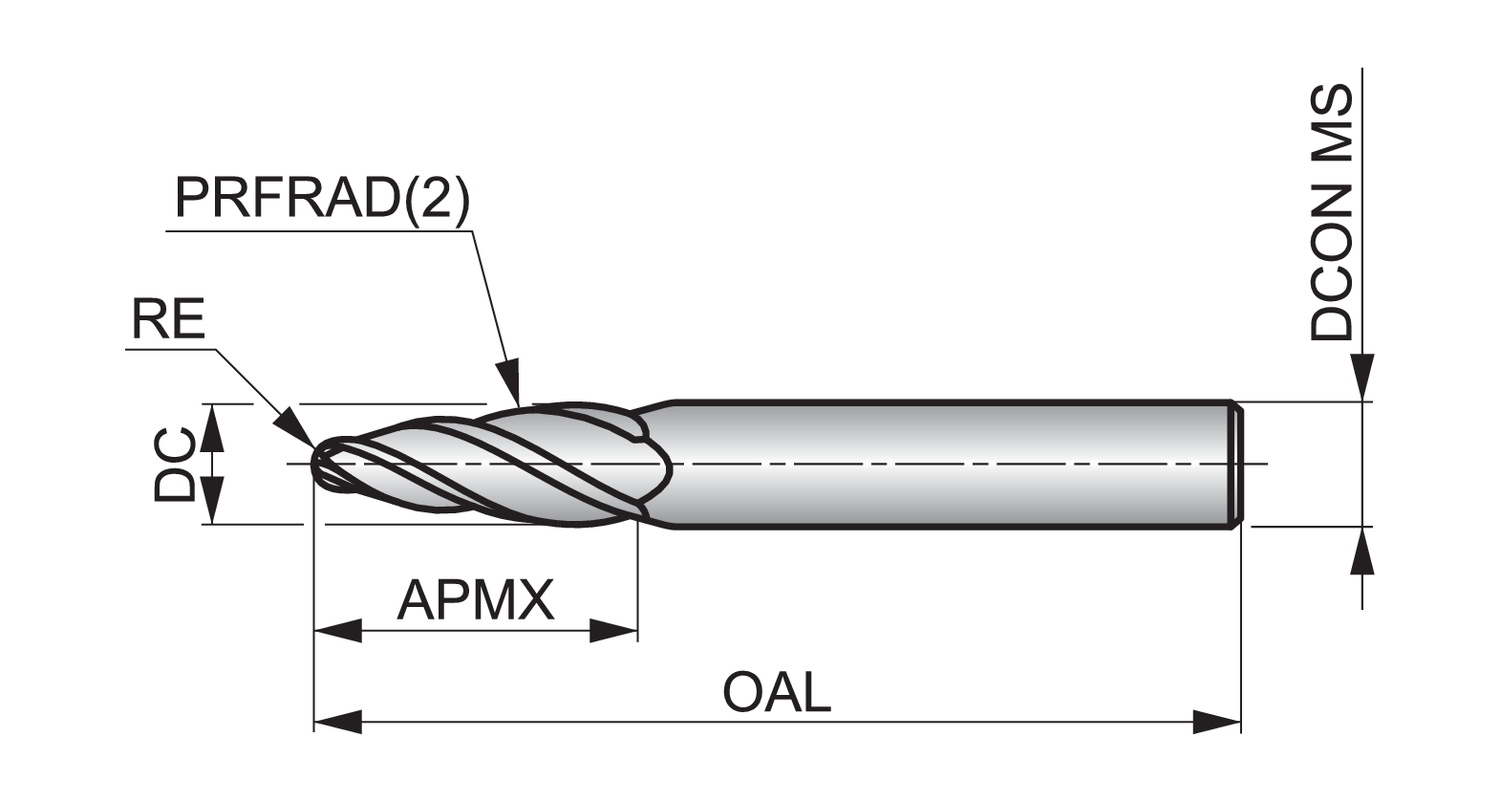

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Corner radius - inch (RE)
0.1181
Corner radius - millimeter (RE)
3
Cut length
Medium
Cutting diameter - inch (DC)
0.6299
Cutting diameter - millimeter (DC)
16
Depth of cut maximum - inch (APMX)
1.2205
Depth of cut maximum - millimeter (APMX)
31
EDP number
8030342
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
Material code (BMC)
HM
MID number
8030342
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S79116.0
Overall length - inch (OAL)
3.5433
Overall length - millimeter (OAL)
90
Profile radius - millimeter (PRFRAD)
75
Radial rake angle (GAMF)
8
Shank
Cylindrical shank DIN 6535 HA
Suitable for 5-axis machining of complex components, S791 milling cutters from Dormer have a barrel form.
The large tangential radius provides greater contact, reducing the number of passes by up to 50%, whilst the nose radius provides greater accuracy and can also be used as a general ball nose cutter.
S791 barrel form machine utters have positive geometry for a smooth cutting action to reduce the possibility of work hardening, and an aluminium chromium nitride coating to reduce friction and provide excellent wear resistance, leading to increased tool life
