8030338

Image for Illustration purposes only. Actual product may vary

View in markdown

Dormer S7916.0 8030338 square end mill for machining cast iron, stainless steel, non-ferrous metals, and steel. Barrel end mill design.

MODEL 8030338

SKU

6078985

WEIGHT

0.048 lb

UOM

each

$129.26 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Basic Standard

DORMER

Coating

AlCrN

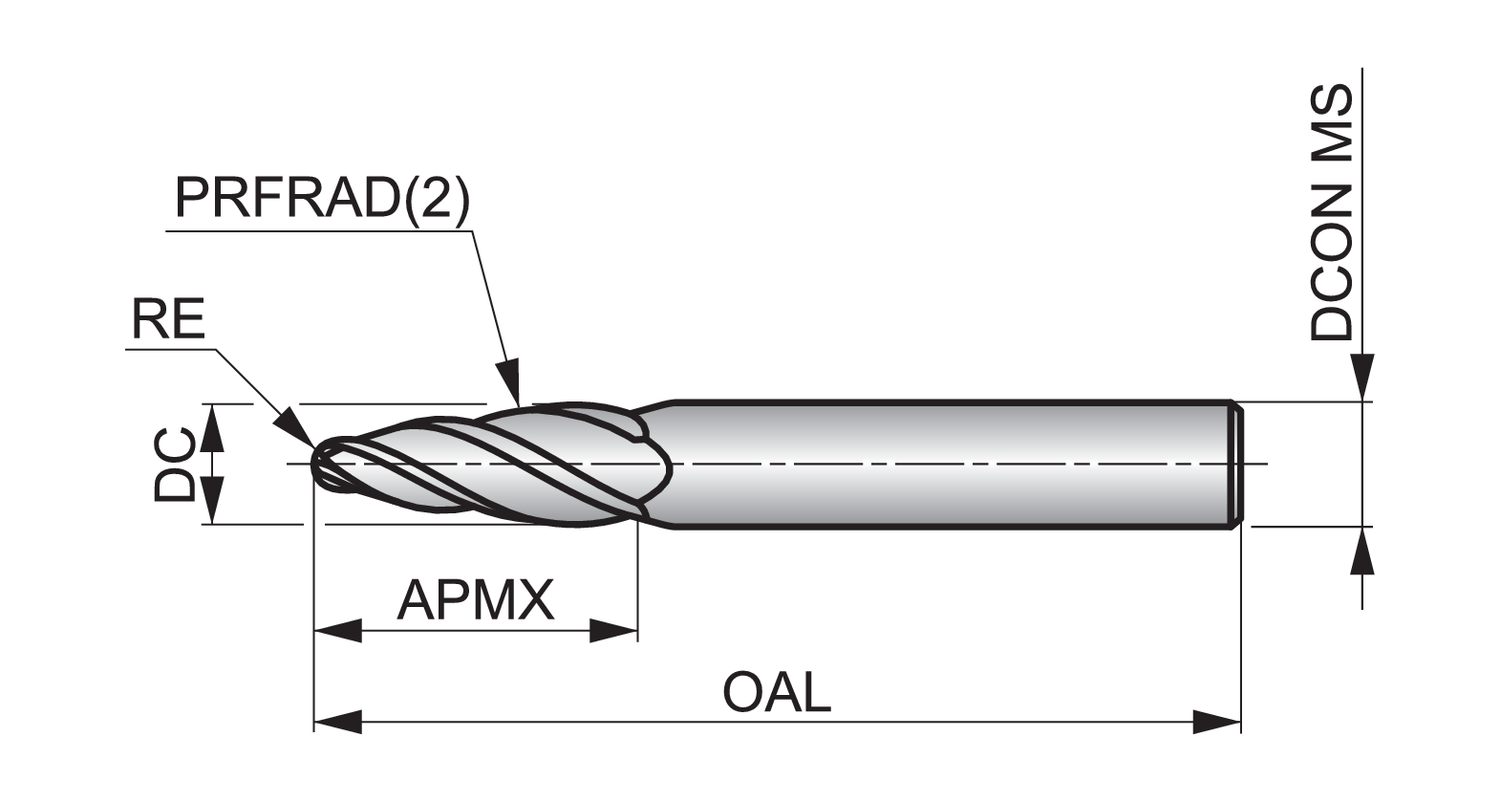

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

6

Corner radius - inch (RE)

0.0394

Corner radius - millimeter (RE)

1

Cut length

Medium

Cutting diameter - inch (DC)

0.2362

Cutting diameter - millimeter (DC)

6

Depth of cut maximum - inch (APMX)

0.8661

Depth of cut maximum - millimeter (APMX)

22

EDP number

8030338

Flute count (NOF)

3

Flute helix angle (FHA)

30

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

Material code (BMC)

HM

MID number

8030338

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S7916.0

Overall length - inch (OAL)

2.6378

Overall length - millimeter (OAL)

67

Profile radius - millimeter (PRFRAD)

95

Radial rake angle (GAMF)

8

Shank

Cylindrical shank DIN 6535 HA

Suitable for 5-axis machining of complex components, S791 milling cutters from Dormer have a barrel form.

The large tangential radius provides greater contact, reducing the number of passes by up to 50%, whilst the nose radius provides greater accuracy and can also be used as a general ball nose cutter.

S791 barrel form machine utters have positive geometry for a smooth cutting action to reduce the possibility of work hardening, and an aluminium chromium nitride coating to reduce friction and provide excellent wear resistance, leading to increased tool life
