Dormer S802HB14.0 5983282 14mm solid carbide square end mill, 2-flute, DIN 6527 K standard, 28° helix angle, 14mm cutting diameter, 14mm depth of cut, 14mm shank diameter with h6 tolerance. Suitable for K (cast iron), M (stainless steel), N (non-ferrous metals), and P (steel and cast steel) material applications.

Name: Dormer S802HB14.0 5983282 14mm solid carbide square end mill, 2-flute, DIN 6527 K standard, 28° helix angle, 14mm cutting diameter, 14mm depth of cut,
Brand: Dormer Pramet
Price: 211.52 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5983282

BRAND

Dormer Pramet

SKU

6079008

WEIGHT

0.333 lb

UOM

each

$211.52 Each

Prices are subject to change

THIS ORDER SHIPS FREE

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DIN 6527 K

Coating

AlCrN

Coating property (CTP)

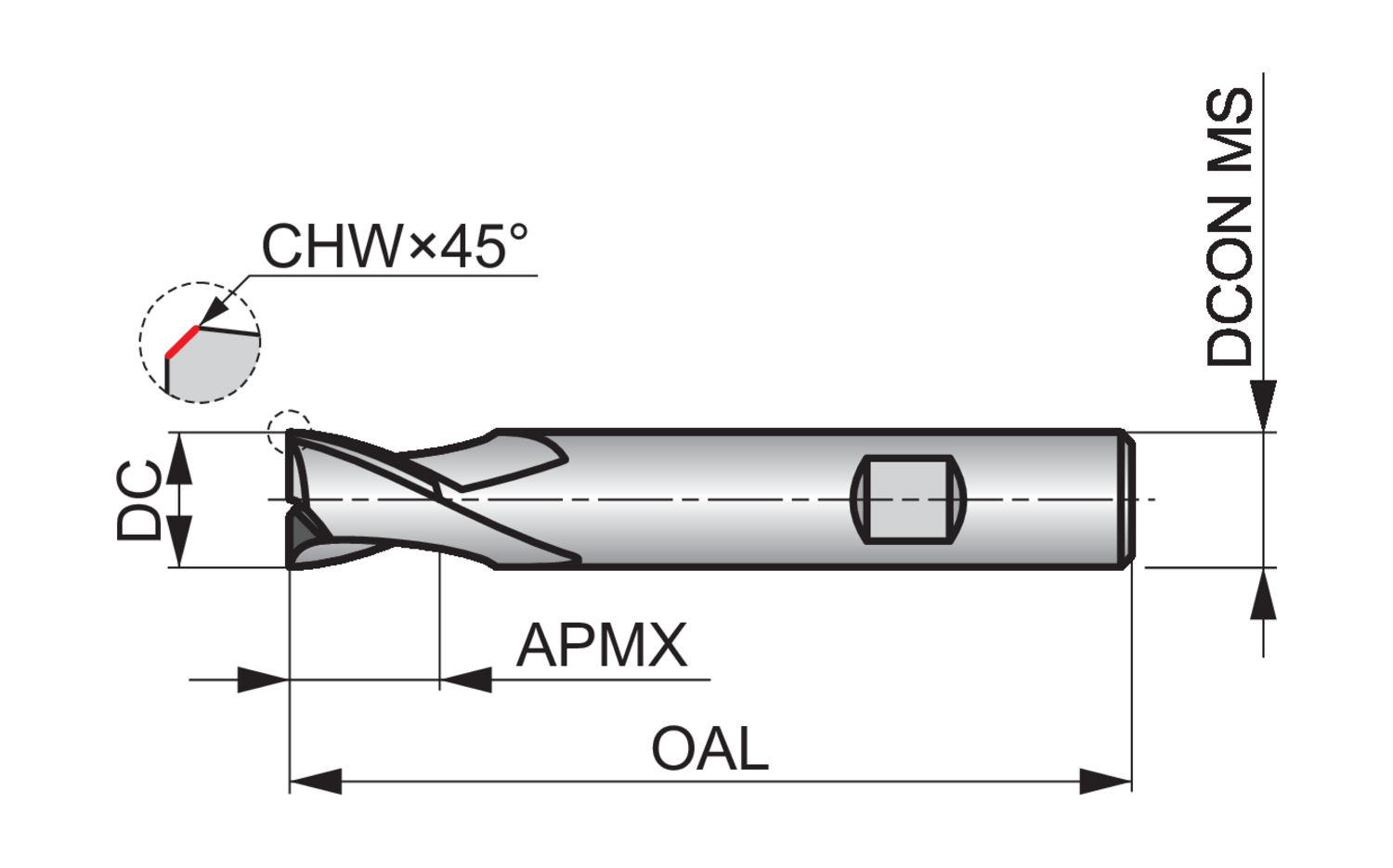

Connection diameter - inch (DCON MS)

0.5512

Connection diameter - millimeter (DCON MS)

Connection diameter tolerance machine side (TCDCONMS)

Corner chamfer width - millimeter (CHW)

0.2

Cut length

Extra short

Cutting diameter - inch (DC)

0.5512

Cutting diameter - millimeter (DC)

Cutting diameter tolerance class (TCDC)

Depth of cut maximum - inch (APMX)

0.5512

Depth of cut maximum - millimeter (APMX)

EDP number

640913

Flute count (NOF)

Flute helix angle (FHA)

Material

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

5983282

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S802HB14.0

Overall length - inch (OAL)

2.9528

Overall length - millimeter (OAL)

Peripheral effective cutting edge count (ZEFP)

Radial rake angle (GAMF)

Shank

Cylindrical shank DIN 6535 HB

Part of Dormer’s extensive carbide milling cutter range, S802HB 2-flute slot drills, with a DIN6535HB shank, have a very accurate diameter, suitable for milling standard keyway slots to a P9 tolerance, and a short length flute for rigidity when milling shallow slots.

They are very versatile and can be used for plunging, ramping and profile milling in a number of different materials, including steels, stainless steels, cast iron and non-ferrous materials.

S802HB 2-flute slot drills are manufactured from premium carbide and have a special Alcrona coating.

Together they will give you extended tool life and superior performance, particularly when milling materials which are difficult to machine
