Dormer S804HA4.0 5982586 solid carbide square end mill, 4.00mm cutting diameter, 4-flute, 34° helix angle, DIN 6527 K standard. Suitable for machining cast iron, stainless steel, non-ferrous metals, and steel. 6mm connection diameter, 8mm max depth of cut, radial rake angle 9°.
MODEL 5982586
$48.59 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 6527 K
Coating
AlCrN
Coating property (CTP)
1

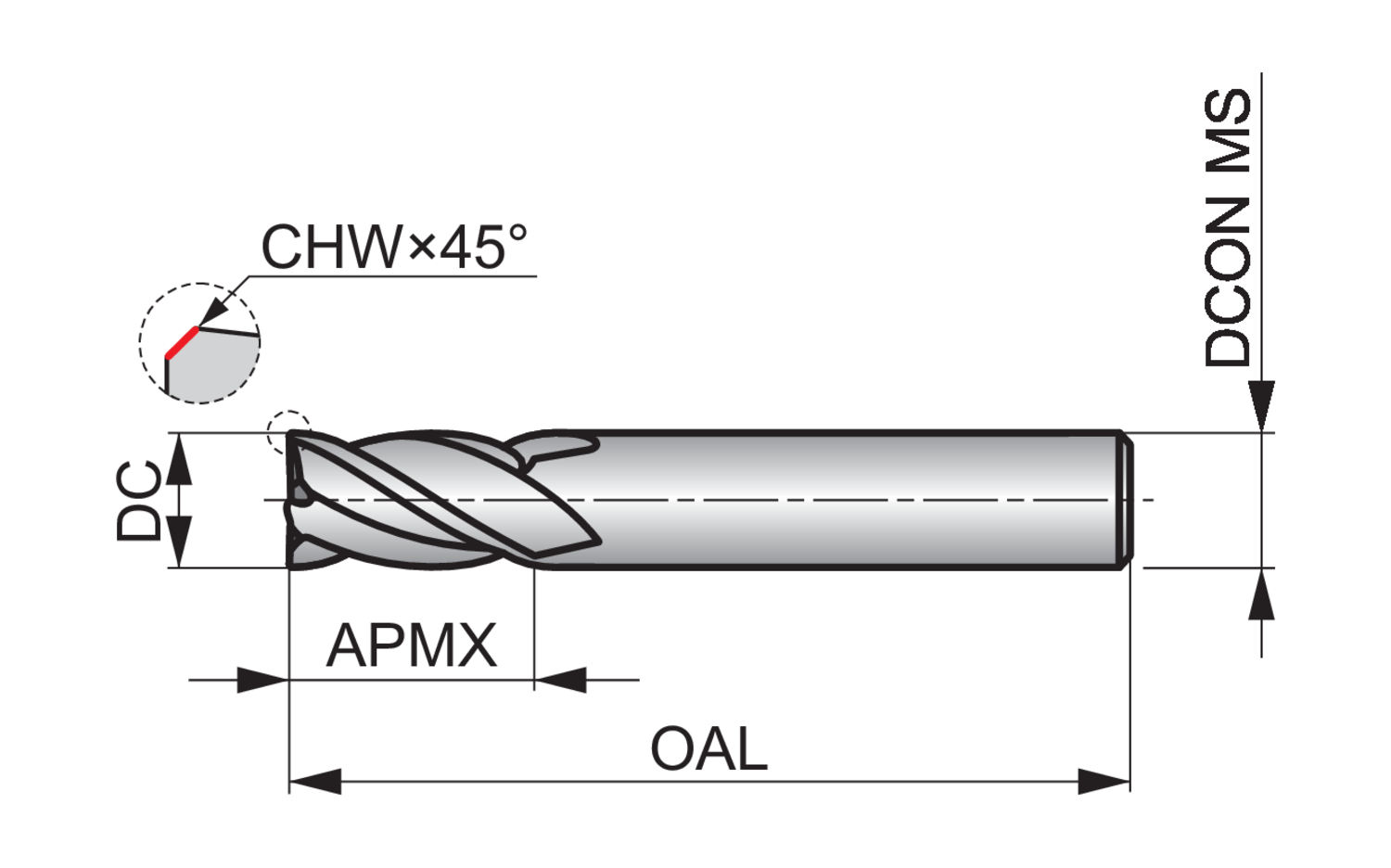

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Corner chamfer width - millimeter (CHW)
0.13
Cut length
Extra short
Cutting diameter - inch (DC)
0.1575
Cutting diameter - millimeter (DC)
4
Cutting diameter tolerance class (TCDC)
h10
Depth of cut maximum - inch (APMX)
0.315
Depth of cut maximum - millimeter (APMX)
8
EDP number
641620
Flute count (NOF)
4
Flute helix angle (FHA)
34
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5982586
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S804HA4.0
Overall length - inch (OAL)
2.126
Overall length - millimeter (OAL)
54
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
9
Shank
Cylindrical shank DIN 6535 HA
S804HA 4-flute milling cutters are manufactured from premium carbide for superior performance and longer tool life.
The cutters have a very strong design and can be used for both slotting and profile milling.
They are suitable for plunging, ramping and profile milling in cast iron, non-ferrous materials, steels and stainless steels; further evidence of their versatility.
The short flute length provides high rigidity for shallow profile milling applications.
S804HA 4-flute end mills have a special Alcrona coating, with benefits of improved performance when milling materials which are difficult to machine and further improvements in tool life
