Dormer S813HA20.0 5983536 square end mill, 20mm cutting diameter, 3-flute, solid carbide, DIN 6527 L standard. 28° helix angle, 9° radial rake, h6 shank tolerance. Suitable for cast iron, stainless steel, non-ferrous metals, and steel.
MODEL 5983536
$297.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 6527 L
Coating
AlCrN
Coating property (CTP)
1
Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Connection diameter tolerance machine side (TCDCONMS)
h6

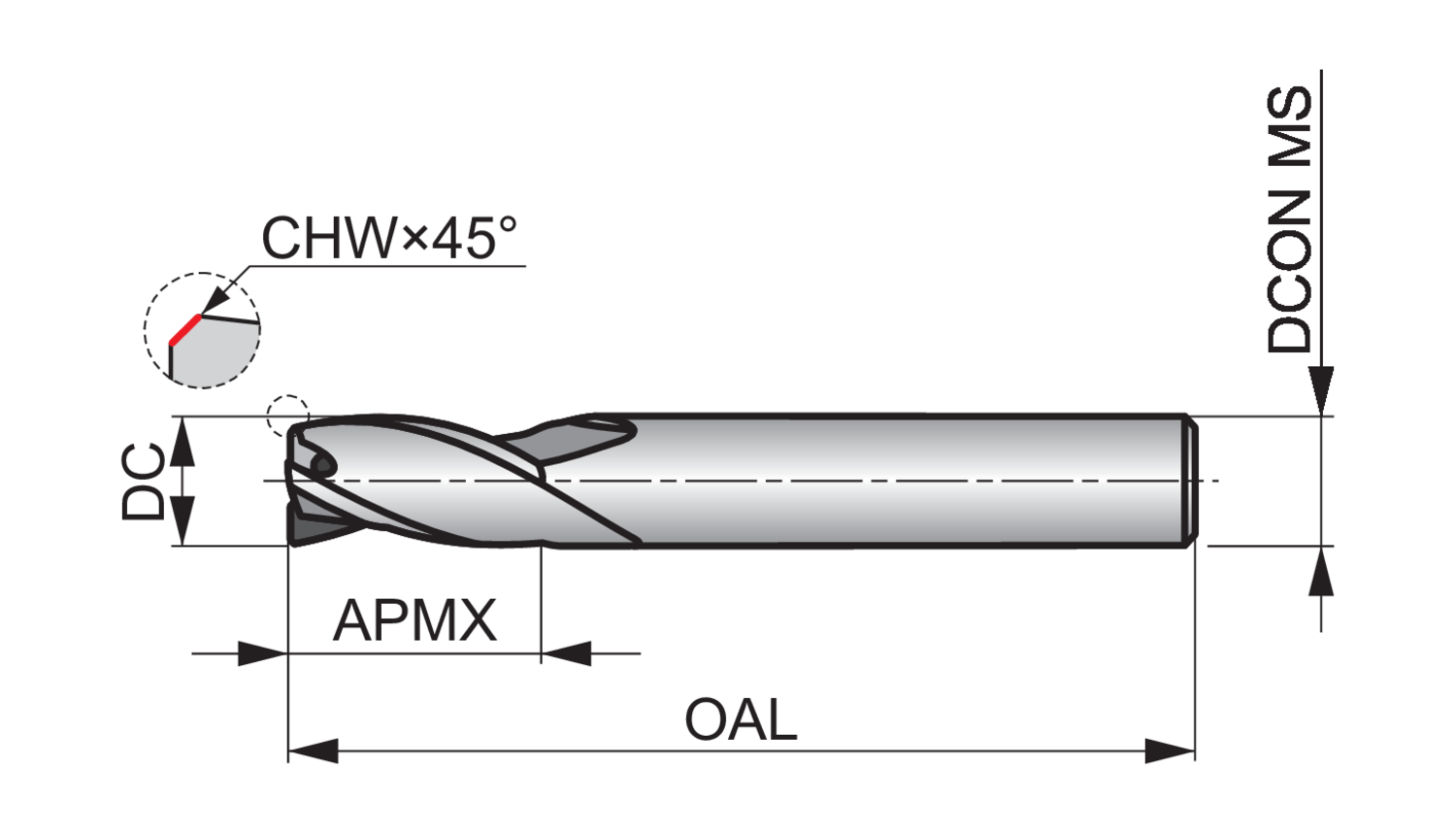

Corner chamfer width - millimeter (CHW)
0.3
Cut length
Short
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
1.2598
Depth of cut maximum - millimeter (APMX)
32
EDP number
642320
Flute count (NOF)
3
Flute helix angle (FHA)
28
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5983536
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S813HA20.0
Overall length - inch (OAL)
4.0945
Overall length - millimeter (OAL)
104
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
9
Shank
Cylindrical shank DIN 6535 HA
One of Dormer’s range of solid carbide drills, the S813HA 3-flute cutter has an accurate diameter capable of milling keyway slots to a P9 tolerance, whilst the medium length flute gives you great rigidity for the operation.
The premium carbide used in manufacture will give superior performance and longer tool life.
This is further improved thanks to the special Alcrona coating, which also adds to the performance when milling difficult to machine materials.
With versatility in mind, S813HA 3-flute slot drills can be used for plunging, ramping and profile milling in steels, stainless steels, cast iron and non-ferrous materials
