Dormer S813HB14.0 5983516 square end mill, 14mm cutting diameter, 3-flute, solid carbide, DIN 6527 L standard. 28° helix angle, 9° radial rake, h6 shank tolerance. For cast iron, stainless steel, non-ferrous metals, and steel.

Basic Standard

DIN 6527 L

Coating

AlCrN

Coating property (CTP)

1

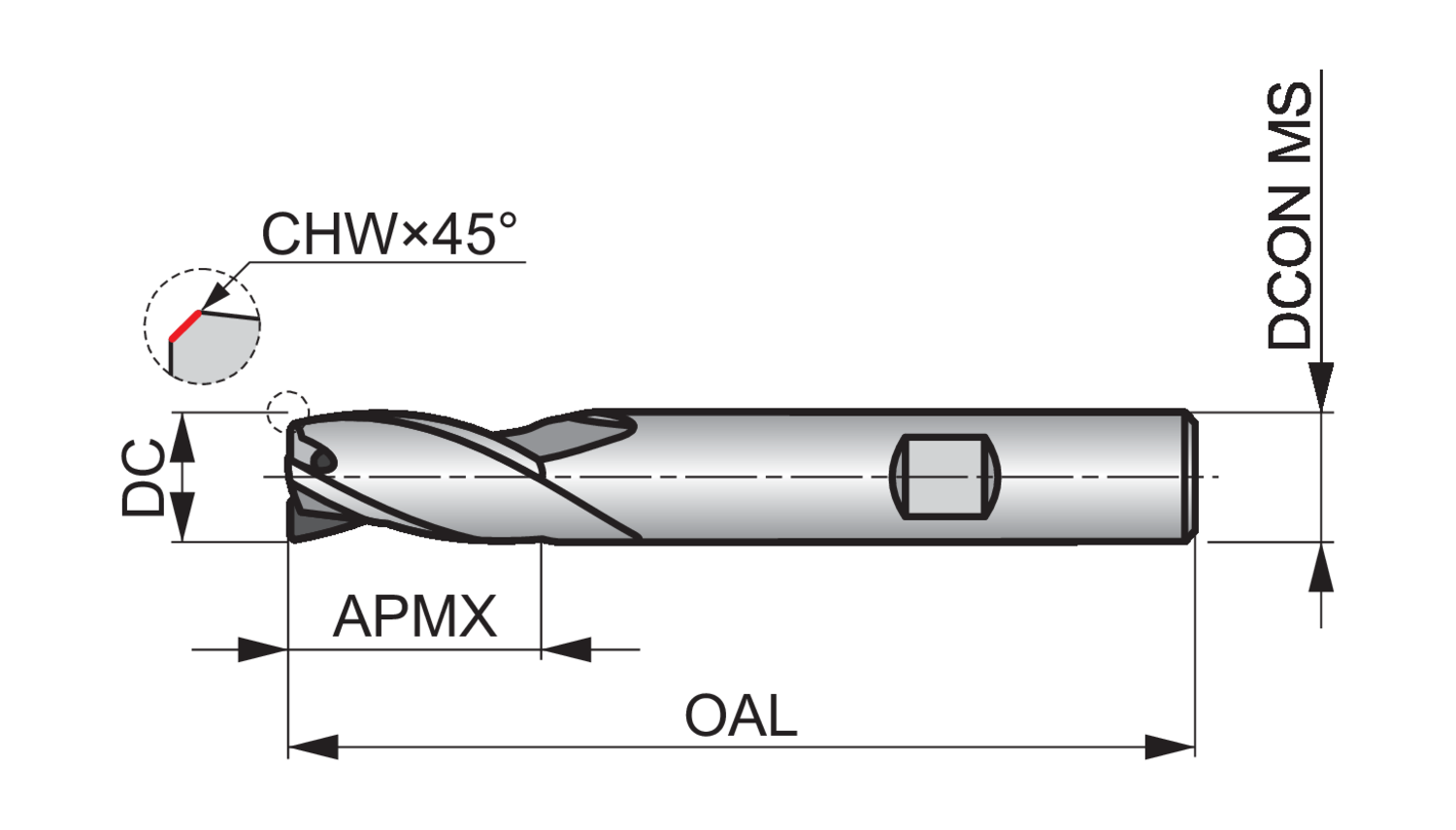

Connection diameter - inch (DCON MS)

0.5512

Connection diameter - millimeter (DCON MS)

14

Connection diameter tolerance machine side (TCDCONMS)

h6

Corner chamfer width - millimeter (CHW)

0.2

Cut length

Short

Cutting diameter - inch (DC)

0.5512

Cutting diameter - millimeter (DC)

14

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

0.8661

Depth of cut maximum - millimeter (APMX)

22

EDP number

642467

Flute count (NOF)

3

Flute helix angle (FHA)

28

Material

HM

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

5983516

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S813HB14.0

Overall length - inch (OAL)

3.2677

Overall length - millimeter (OAL)

83

Peripheral effective cutting edge count (ZEFP)

3

Radial rake angle (GAMF)

9

Shank

Cylindrical shank DIN 6535 HB
