Dormer S82212.0 7106964 square end mill, 12mm cutting diameter, 2-flute, solid carbide (HM), 28° helix angle, 9° radial rake, h6 shank tolerance, 25mm max depth of cut. For K, M, N, P, S materials. DORMER standard.

Basic Standard

DORMER

Coating

AlCrN

Coating property (CTP)

1

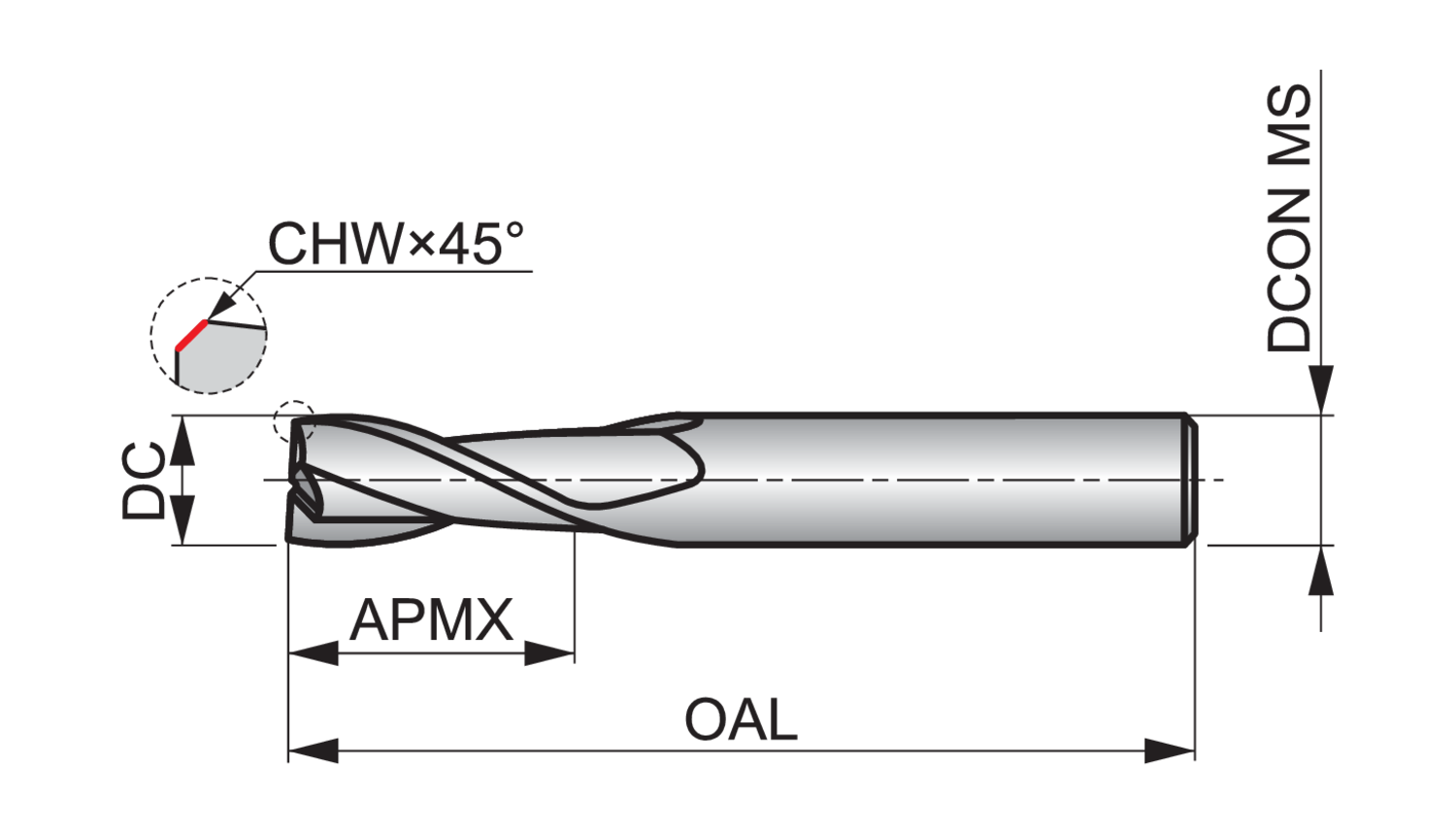

Connection diameter - inch (DCON MS)

0.4724

Connection diameter - millimeter (DCON MS)

12

Connection diameter tolerance machine side (TCDCONMS)

h6

Corner chamfer width - millimeter (CHW)

0.2

Cut length

Medium

Cutting diameter - inch (DC)

0.4724

Cutting diameter - millimeter (DC)

12

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

0.9843

Depth of cut maximum - millimeter (APMX)

25

EDP number

47106964

Flute count (NOF)

2

Flute helix angle (FHA)

28

Material

HM

MID number

7106964

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S82212.0

Overall length - inch (OAL)

3.2677

Overall length - millimeter (OAL)

83

Peripheral effective cutting edge count (ZEFP)

2

Radial rake angle (GAMF)

9

Shank

Cylindrical shank DIN 6535 HA
