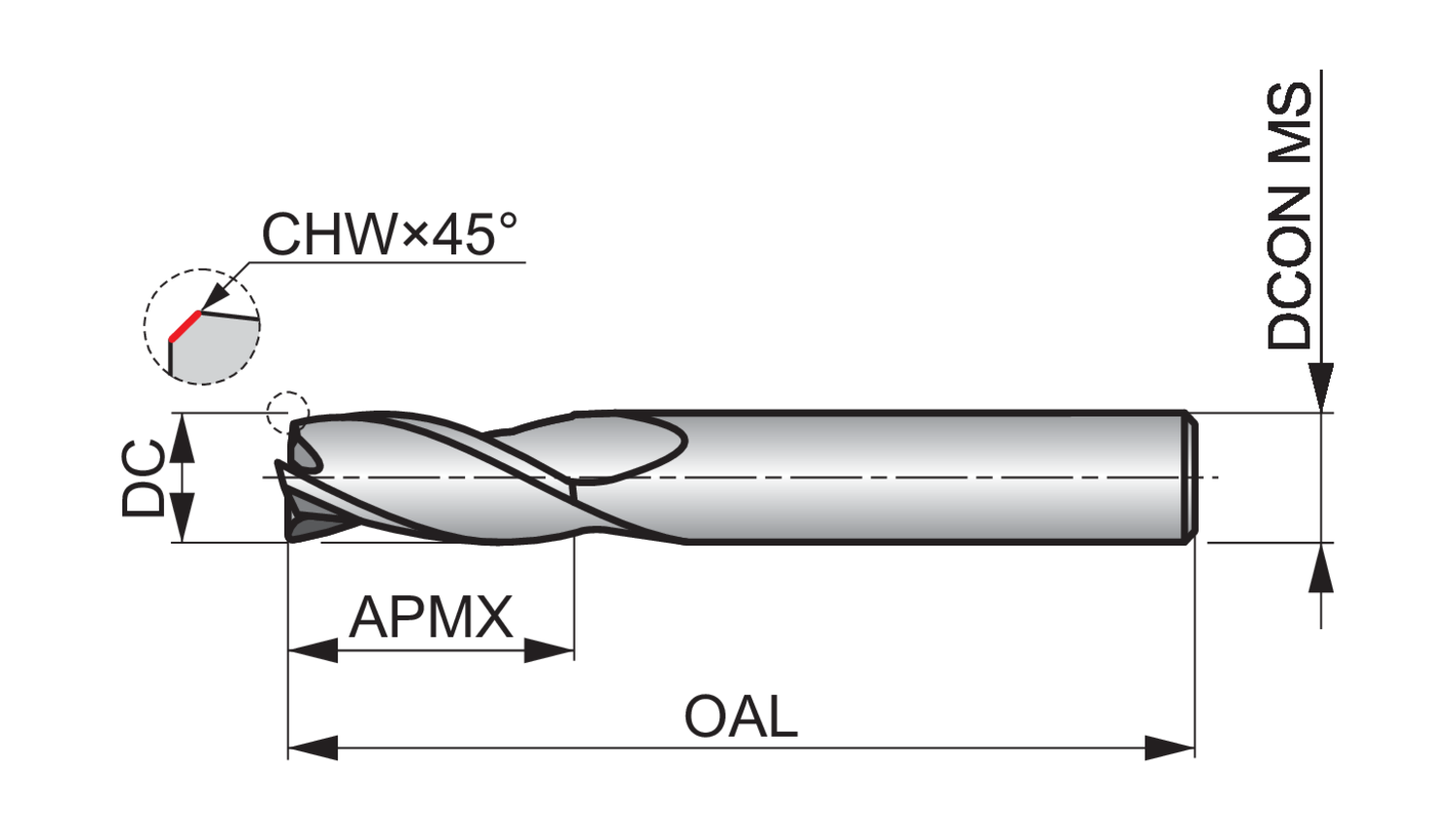

Dormer S82314.0 7106980 square end mill with 14mm cutting diameter, 3 flutes, solid carbide construction, and 28° helix angle. Designed for slot drilling in cast iron, stainless steel, non-ferrous metals, and steel. Features 30mm maximum depth of cut, 14mm shank diameter with h6 tolerance, and 9° radial rake angle. DORMER standard.

Basic Standard

DORMER

Coating

AlCrN

Coating property (CTP)

1

Connection diameter - inch (DCON MS)

0.5512

Connection diameter - millimeter (DCON MS)

14

Connection diameter tolerance machine side (TCDCONMS)

h6

Corner chamfer width - millimeter (CHW)

0.2

Cut length

Medium

Cutting diameter - inch (DC)

0.5512

Cutting diameter - millimeter (DC)

14

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

1.1811

Depth of cut maximum - millimeter (APMX)

30

EDP number

47106980

Flute count (NOF)

3

Flute helix angle (FHA)

28

Material

HM

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

7106980

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S82314.0

Overall length - inch (OAL)

3.2677

Overall length - millimeter (OAL)

83

Peripheral effective cutting edge count (ZEFP)

3

Radial rake angle (GAMF)

9

Shank

Cylindrical shank DIN 6535 HA
