Dormer S8237.0 7106975 solid carbide square end mill, 7mm cutting diameter, 3-flute, 28° helix angle, 8mm shank, h6 tolerance. For slot drilling in cast iron, stainless steel, non-ferrous metals, and steel. DORMER standard.
MODEL 7106975
$72.27 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlCrN
Coating property (CTP)
1

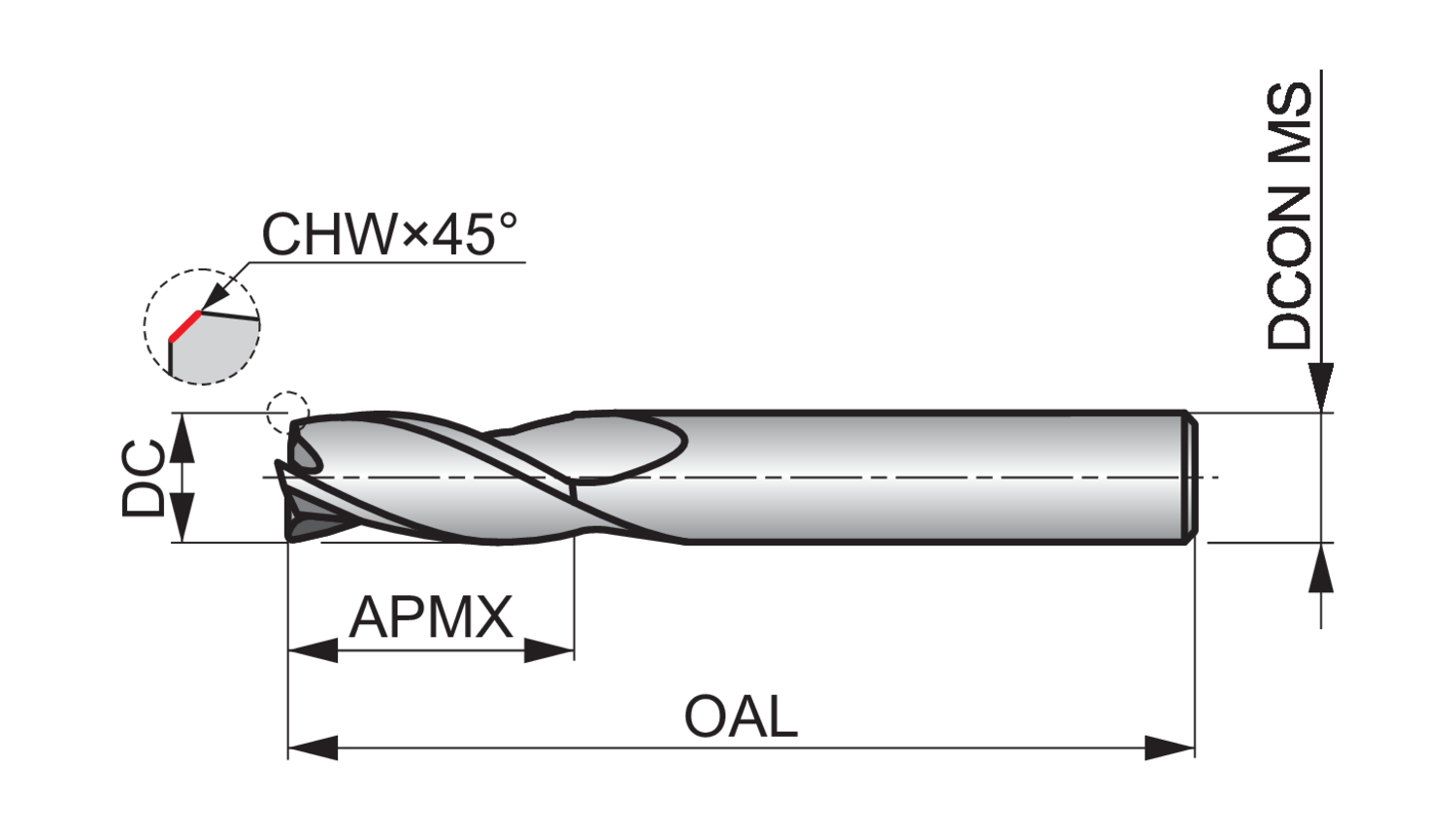

Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
Connection diameter tolerance machine side (TCDCONMS)
h6
Corner chamfer width - millimeter (CHW)
0.13
Cut length
Medium
Cutting diameter - inch (DC)
0.2756
Cutting diameter - millimeter (DC)
7
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.748
Depth of cut maximum - millimeter (APMX)
19
EDP number
47106975
Flute count (NOF)
3
Flute helix angle (FHA)
28
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7106975
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S8237.0
Overall length - inch (OAL)
2.4803
Overall length - millimeter (OAL)
63
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
9
Shank
Cylindrical shank DIN 6535 HA
S823 3-flute milling cutters from Dormer van be used for plunging, ramping and profile milling in steels, stainless steels, cast iron and non-ferrous material.
Manufactured from premium carbide for great performance and long tool life, the tools have a special Alcrona coating for even longer tool life and improved performance when milling difficult to machine materials.
The high rigidity from the longer length flute design makes S823 3-flute slot drills great for milling standard slots whilst the accurate diameter means standard keyway slots can be milled to P9 tolerance
