Dormer S92218.0 5982750 square end mill, 18.00mm cutting diameter, 2-flute, solid carbide (HM), 30° helix angle, 12° radial rake, 32mm max depth of cut, 18mm shank diameter. For K cast iron, N non-ferrous, P steel, S high-temp alloys. DORMER standard.

Basic Standard

DORMER

Coating

TiAlN

Coating property (CTP)

1

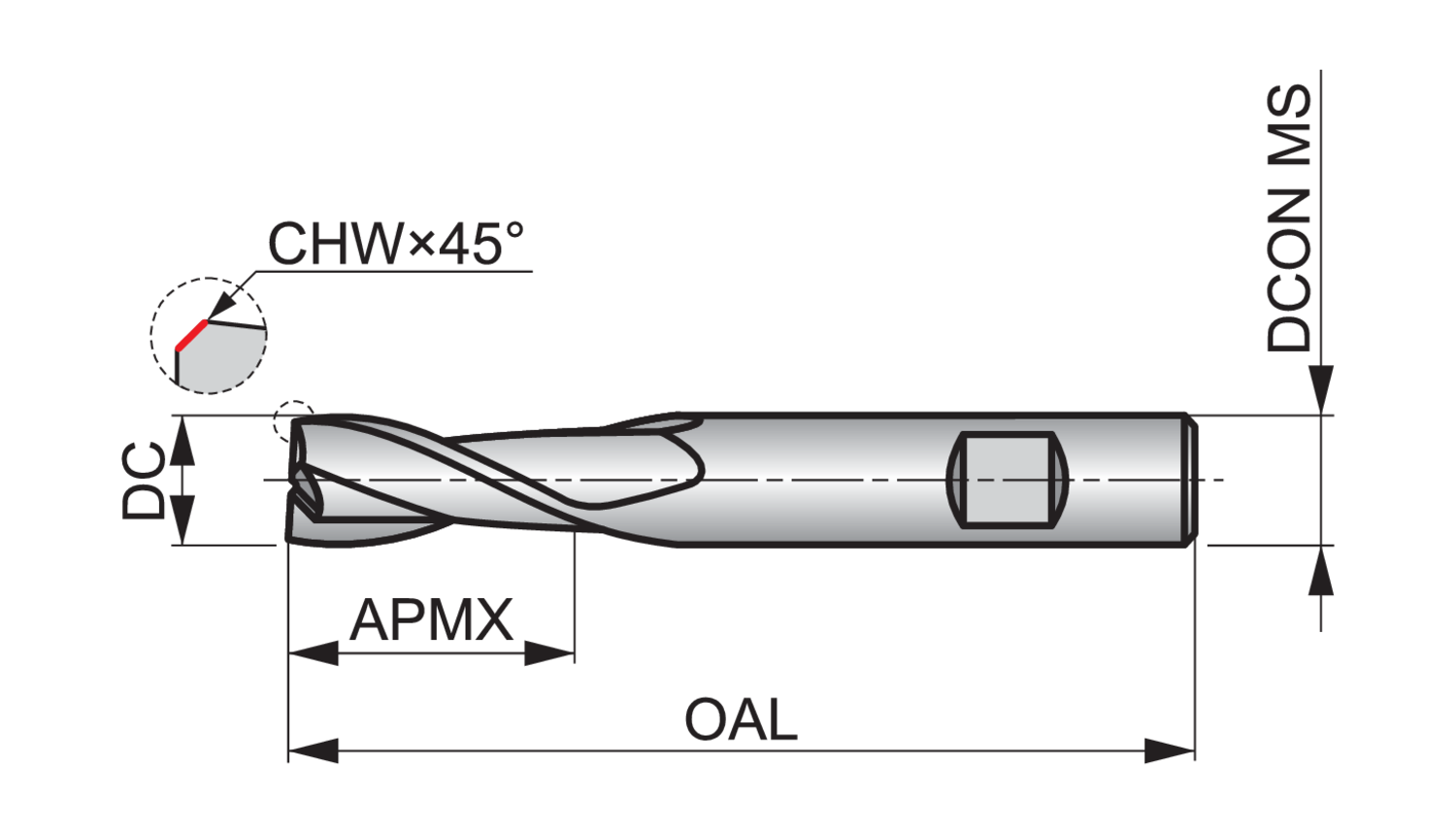

Connection diameter - inch (DCON MS)

0.7087

Connection diameter - millimeter (DCON MS)

18

Corner chamfer width - millimeter (CHW)

0.2

Cut length

Medium

Cutting diameter - inch (DC)

0.7087

Cutting diameter - millimeter (DC)

18

Cutting diameter tolerance class (TCDC)

h10

Depth of cut maximum - inch (APMX)

1.2598

Depth of cut maximum - millimeter (APMX)

32

EDP number

40041

Flute count (NOF)

2

Flute helix angle (FHA)

30

Material

HM

Material application

K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys

MID number

5982750

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S92218.0

Overall length - inch (OAL)

3.622

Overall length - millimeter (OAL)

92

Peripheral effective cutting edge count (ZEFP)

2

Radial rake angle (GAMF)

12

Shank

Cylindrical shank DIN 6535 HB
