Dormer S92220.0 5982759 20mm square end mill with 2 flutes, solid carbide (HM) construction, and 30° helix angle. 20mm shank diameter, 38mm max depth of cut. Suitable for cast iron, non-ferrous metals, steel, cast steel, and high-temperature alloys. DORMER standard.

Basic Standard

DORMER

Coating

TiAlN

Coating property (CTP)

1

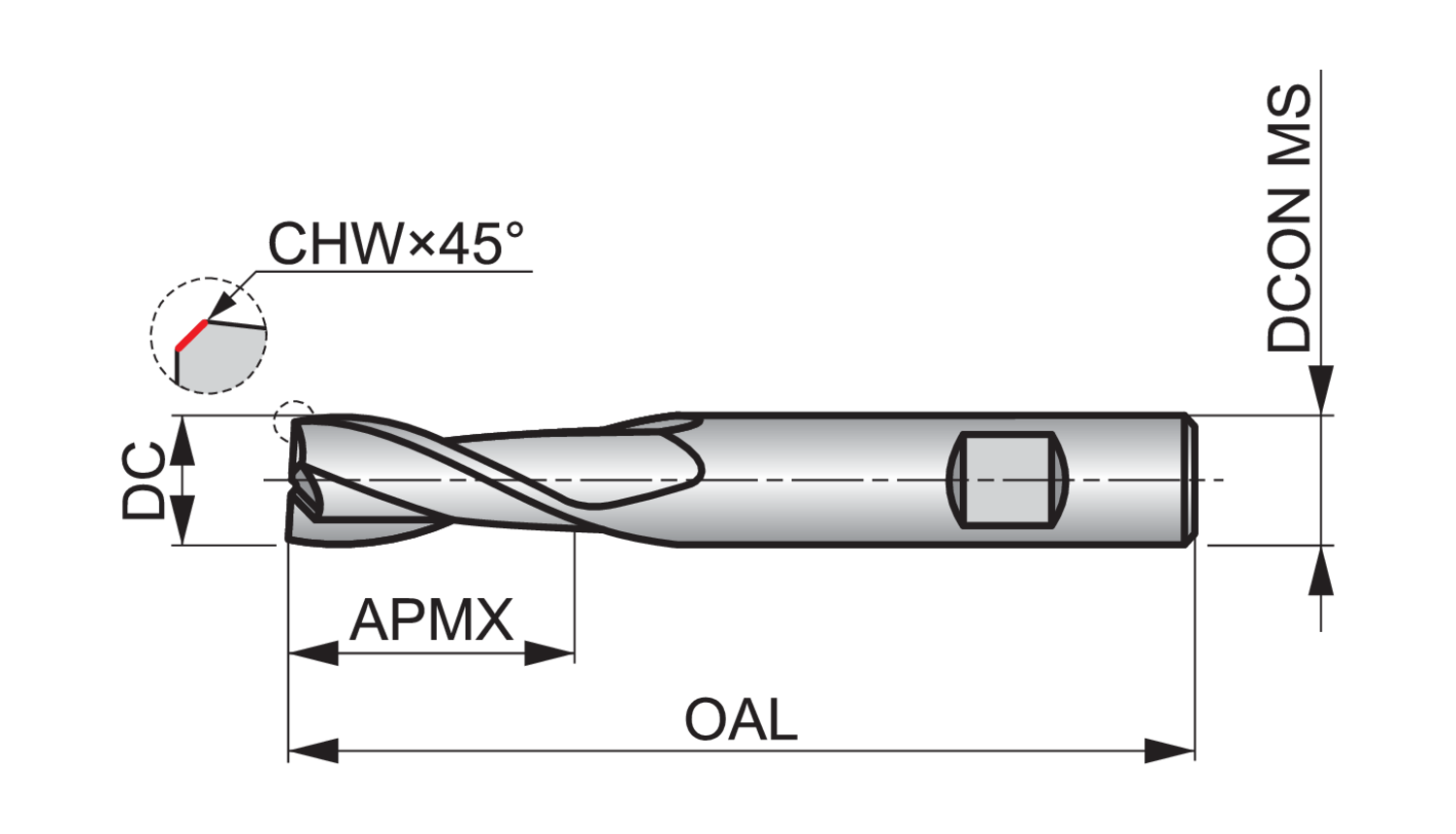

Connection diameter - inch (DCON MS)

0.7874

Connection diameter - millimeter (DCON MS)

20

Corner chamfer width - millimeter (CHW)

0.3

Cut length

Medium

Cutting diameter - inch (DC)

0.7874

Cutting diameter - millimeter (DC)

20

Cutting diameter tolerance class (TCDC)

h10

Depth of cut maximum - inch (APMX)

1.4961

Depth of cut maximum - millimeter (APMX)

38

EDP number

40058

Flute count (NOF)

2

Flute helix angle (FHA)

30

Material

HM

Material application

K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys

MID number

5982759

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S92220.0

Overall length - inch (OAL)

4.0945

Overall length - millimeter (OAL)

104

Peripheral effective cutting edge count (ZEFP)

2

Radial rake angle (GAMF)

12

Shank

Cylindrical shank DIN 6535 HB
