Dormer S9332.0 5982812 End Mill 2.00 mm
MODEL 5982812
$32.49 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiAlN
Coating property (CTP)
1

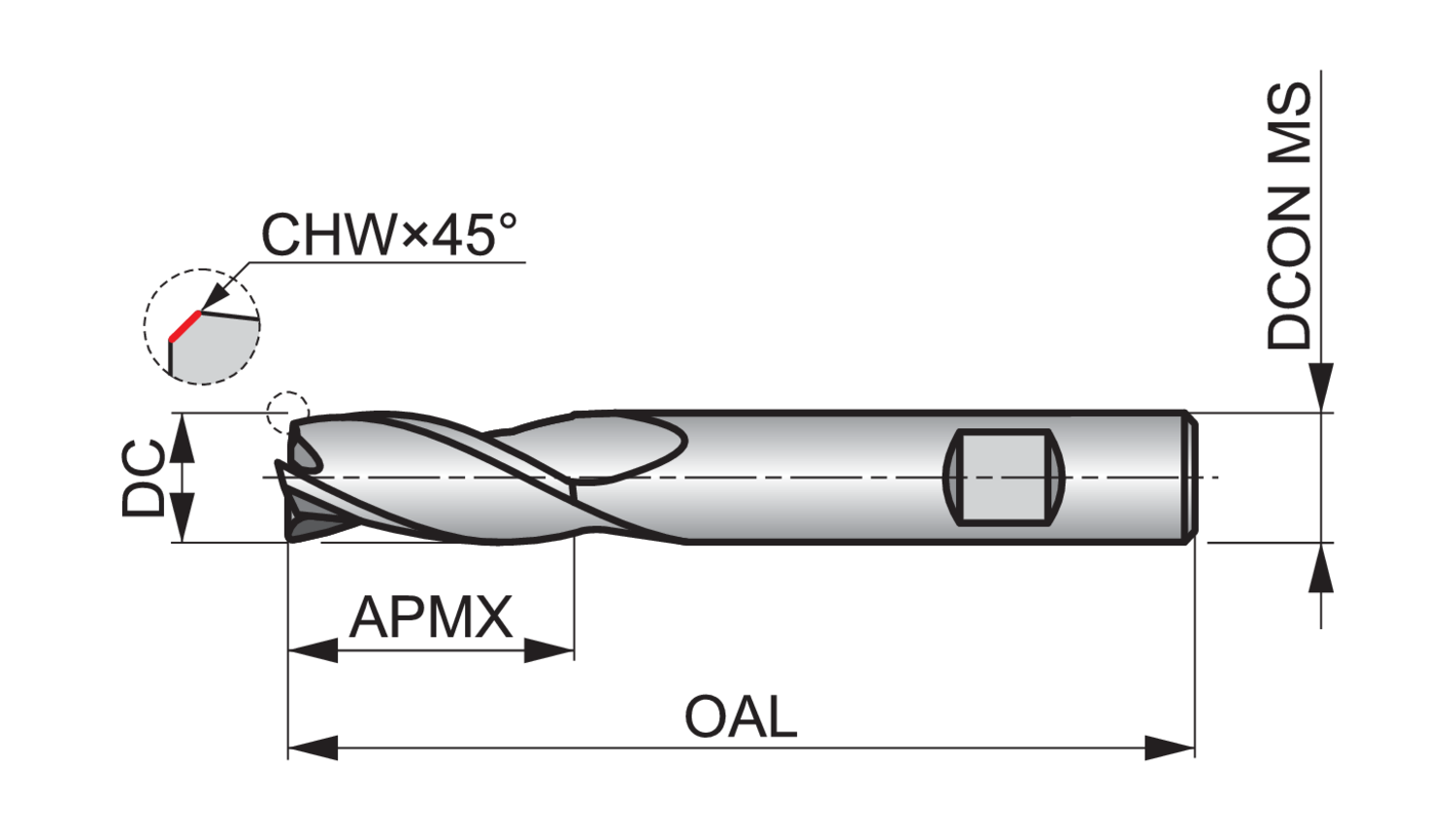

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Corner chamfer width - millimeter (CHW)
0.08
Cut length
Medium
Cutting diameter - inch (DC)
0.0787
Cutting diameter - millimeter (DC)
2
Cutting diameter tolerance class (TCDC)
h10
Depth of cut maximum - inch (APMX)
0.2362
Depth of cut maximum - millimeter (APMX)
6
EDP number
40065
Flute count (NOF)
3
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5982812
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S9332.0
Overall length - inch (OAL)
1.4961
Overall length - millimeter (OAL)
38
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
12
Shank
Cylindrical shank DIN 6535 HB
Part of Dormer’s great range of carbide milling cutters, S933 3-flute cutters are a good economical choice for general milling of slots on most types of machine and can be used for plunging, ramping and profile milling in stainless steels, steels and cast iron.
With a medium length flute design, the extra rigidity provided makes them great for milling standard slots and profiling.
S933 3-flute slot drills are manufactured from premium carbide for superior performance and longer tool life, whilst the titanium aluminium nitride coating further increases tool life and improves performance when milling materials which are difficult to machine
