Dormer S94410.0 5982862 End Mill 10.00 mm
MODEL 5982862
$83.09 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiAlN
Coating property (CTP)
1

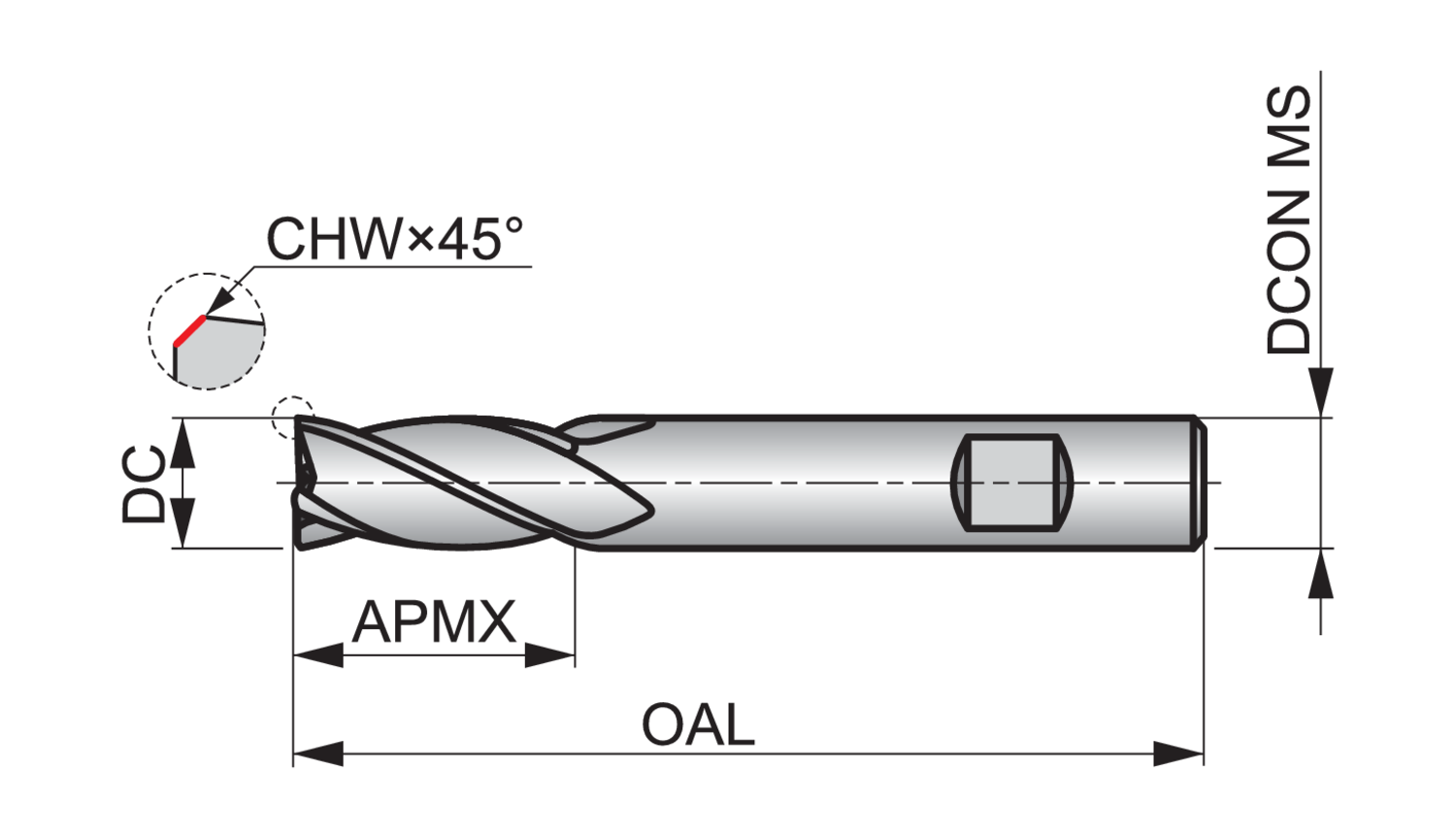

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Corner chamfer width - millimeter (CHW)
0.2
Cut length
Medium
Cutting diameter - inch (DC)
0.3937
Cutting diameter - millimeter (DC)
10
Cutting diameter tolerance class (TCDC)
h12
Depth of cut maximum - inch (APMX)
0.8661
Depth of cut maximum - millimeter (APMX)
22
EDP number
40300
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5982862
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S94410.0
Overall length - inch (OAL)
2.8346
Overall length - millimeter (OAL)
72
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
12
Shank
Cylindrical shank DIN 6535 HB
S944 4-flute milling cutters are manufactured from premium carbide for superior performance and longer tool life which is further extended by the titanium aluminium nitride coating, which also improves performance when milling difficult to machine materials.
The tools are very versatile and can be used to machine a wide range of materials including steels, stainless steels and cast iron, and are suitable for plunging, ramping and profile milling.
The rigid, medium length flute is great for standard profile milling and S944 4-flute cutters are a great economical range for general milling of slots on most types of machine
