Dormer D74732.0X.4 5985692 32.0mm diameter x 0.4mm cutting width HSS fine slitting saw, 80 teeth, DIN 1837 standard. Suitable for cutting cast iron, non-ferrous metals, and steel/cast steel. High speed steel construction for durability in general-purpose slitting applications.
MODEL 5985692
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$23.38 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
DIN 1837
Coating
Bright

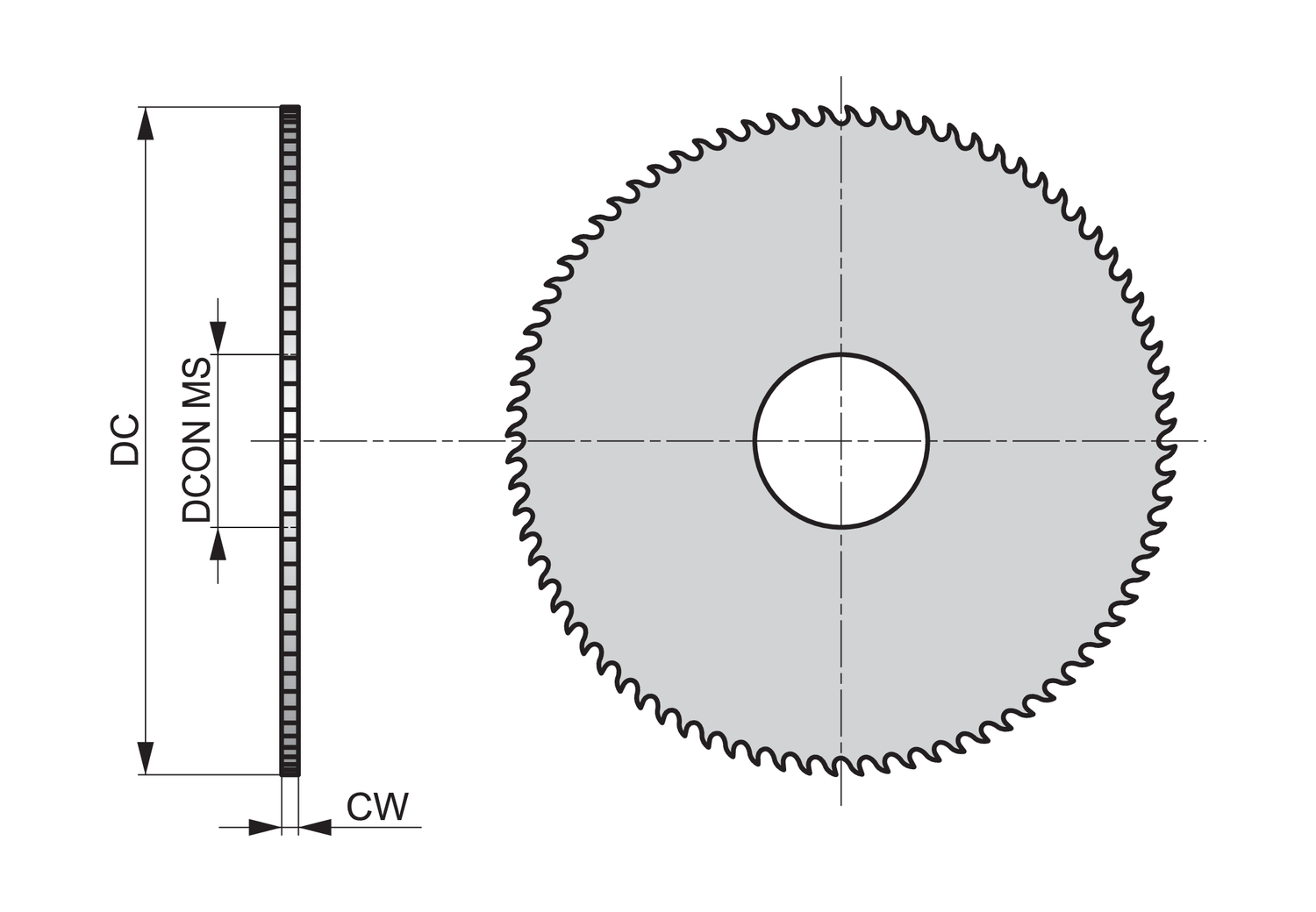

Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
Cutting diameter - inch (DC)
1.2598
Cutting diameter - millimeter (DC)
32
Cutting width - inch (CW)
0.0157
Cutting width - millimeter (CW)
0.4
EDP number
284421
Flute count (NOF)
80
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5985692
Mill Profile
Fine
Ordering code ANSI
D74732.0X.4
Peripheral effective cutting edge count (ZEFP)
80
Radial rake angle (GAMF)
5
D747 fine pitch slitting saws come with a neutral tooth geometry to help control chips and prevent rubbing when milling deep slots.
They are manufactured from High Speed steel which gives great tool strength and also improves wear resistance and performance, whilst the bright finish ensures a clean and accurate finish by preventing workpiece material from sticking to the cutting edges of the tool.
The fine pitch design of D747 slitting saws makes them ideal for narrow, deep slots, and can be used for horizontal milling slots in aluminium, steels, stainless steels and cast iron
