Dormer D750350.0X2.5 5985960 metal slitting saw, 350.00mm diameter, 2.5mm cutting width, 220 teeth, coarse tooth pitch. High Speed Steel (HSS) construction for cutting cast iron, non-ferrous metals, and steel. DORMER standard.
MODEL 5985960
$344.95 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
DORMER
Coating
Steam Tempered

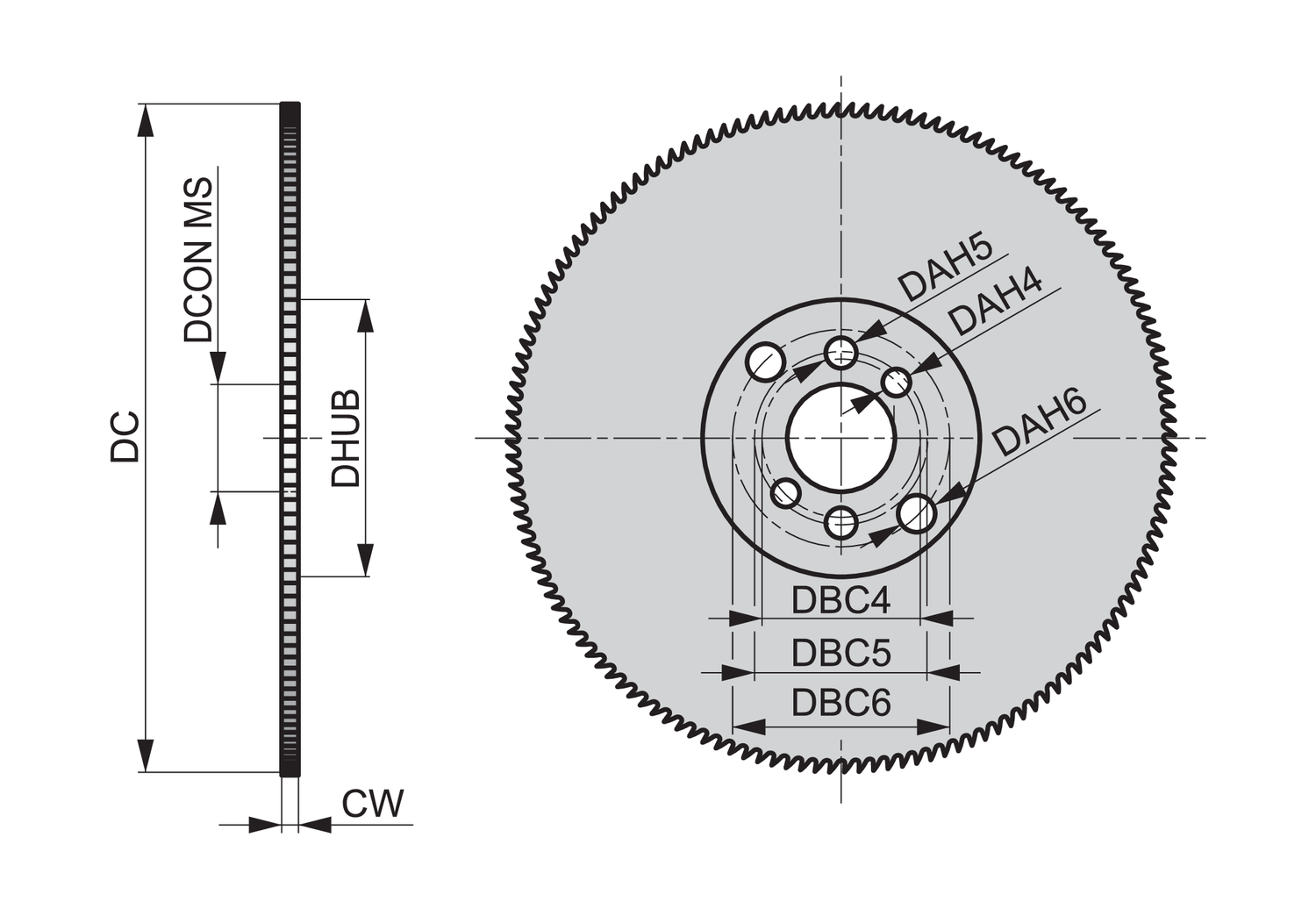

Connection diameter - inch (DCON MS)
1.2598
Connection diameter - millimeter (DCON MS)
32
Cutting diameter - inch (DC)
13.7795
Cutting diameter - millimeter (DC)
350
Cutting width - inch (CW)
0.0984
Cutting width - millimeter (CW)
2.5
Diameter access hole - millimeter (DAH)
8
EDP number
285732
Flute count (NOF)
220
Hub diameter - millimeter (DHUB)
120
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5985960
Mill Profile
Fine
Ordering code ANSI
D750350.0X2.5
Peripheral effective cutting edge count (ZEFP)
220
Radial rake angle (GAMF)
18
D750 slitting saws have an extra fine pitch design, ideal for thin section components and are suitable for slitting and cutting in steels, stainless steels, aluminium and cast iron.
Coming in ranges from 130 to 220 teeth, the neutral tooth geometry helps control chips and prevents rubbing when slitting tubes and pipes.
D759 extra fine pitch slitting saws have a steam oxide finish to help stop workpiece material from sticking to the cutting edges of the saw so you get a clean accurate result.
Finally, the High Speed steel used in manufacture gives you excellent tool strength, wear resistance and performance
