Dormer D751350.0X2.5X280 5986005 metal slitting saw with 350.00mm diameter, 2.5mm cutting width, and 280 coarse teeth. High Speed Steel (HSS) construction for cutting cast iron, non-ferrous metals, and steel. DORMER standard.

Name: Dormer D751350.0X2.5X280 5986005 metal slitting saw with 350.00mm diameter, 2.5mm cutting width, and 280 coarse teeth. High Speed Steel (HSS) construc
Brand: Dormer Pramet
Price: 386.26 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5986005

BRAND

Dormer Pramet

SKU

6079462

WEIGHT

3.924 lb

UOM

each

$386.26 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Coating

Steam Tempered

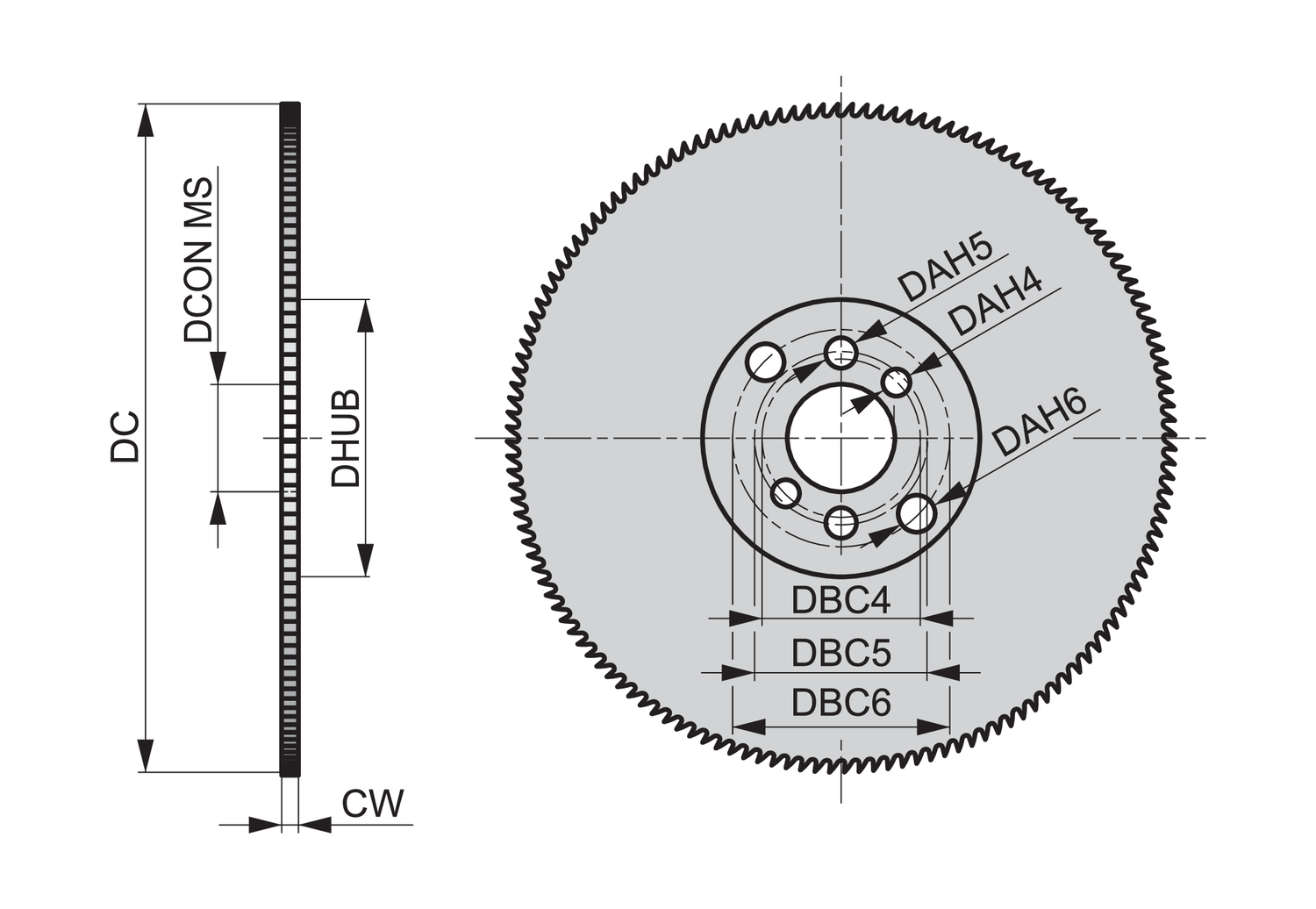

Connection diameter - inch (DCON MS)

1.2598

Connection diameter - millimeter (DCON MS)

Cutting diameter - inch (DC)

13.7795

Cutting diameter - millimeter (DC)

350

Cutting width - inch (CW)

0.0984

Cutting width - millimeter (CW)

2.5

Diameter access hole - millimeter (DAH)

EDP number

285862

Flute count (NOF)

280

Hub diameter - millimeter (DHUB)

120

Material

HSS

Material application

K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel

MID number

5986005

Mill Profile

Fine

Ordering code ANSI

D751350.0X2.5X280

Peripheral effective cutting edge count (ZEFP)

280

Radial rake angle (GAMF)

D751 extra fine pitch slitting saws can be used for slitting and cutting in steels, aluminium, cast iron and stainless steels and are manufactured from High Speed steel for great wear resistance, performance and tool strength.

For a clean and accurate result every time, the tools have a steam oxide finish to prevent workpiece material from sticking to the cutting edges of the tool.

Coming in a range of cutting teeth from 160 to 350, the dish ground, neutral tooth geometry helps control chips and prevents rubbing when slitting tubes and pipes, whilst the extra fine pitch design make D751 slitting saws ideal for thin section components
