Dormer D752300.0X2.5X160 5985821 metal slitting saw, 300.00mm diameter, 2.5mm cutting width, 160 teeth, coarse tooth pitch. High Speed Steel (HSS) construction for cutting cast iron, non-ferrous metals, and steel/cast steel. DORMER standard.

Name: Dormer D752300.0X2.5X160 5985821 metal slitting saw, 300.00mm diameter, 2.5mm cutting width, 160 teeth, coarse tooth pitch. High Speed Steel (HSS) con
Brand: Dormer Pramet
Price: 293.6 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5985821

BRAND

Dormer Pramet

SKU

6079466

WEIGHT

3.007 lb

UOM

each

$293.60 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Coating

Steam Tempered

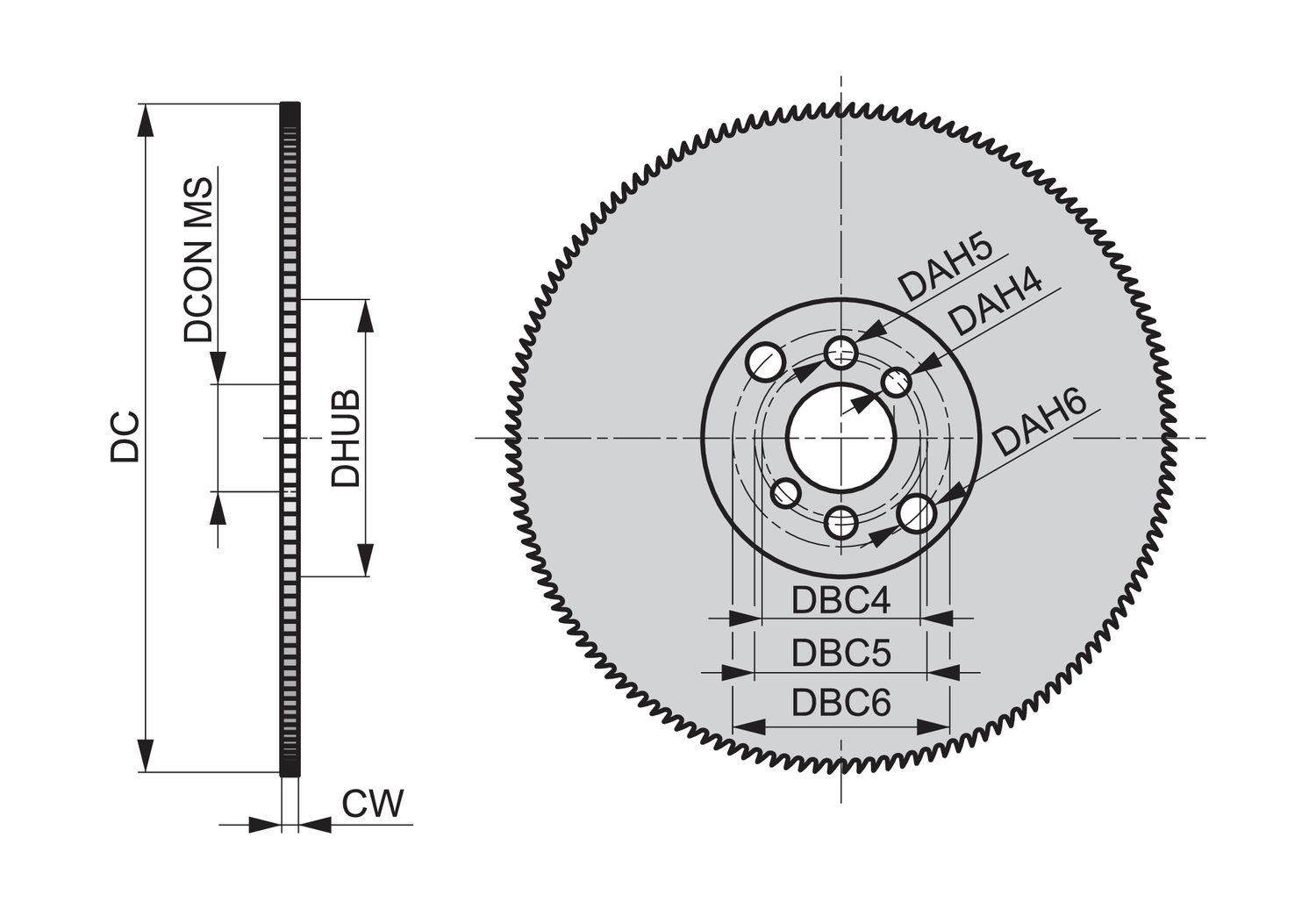

Connection diameter - inch (DCON MS)

1.2598

Connection diameter - millimeter (DCON MS)

Cutting diameter - inch (DC)

11.811

Cutting diameter - millimeter (DC)

300

Cutting width - inch (CW)

0.0984

Cutting width - millimeter (CW)

2.5

Diameter access hole - millimeter (DAH)

EDP number

285947

Flute count (NOF)

160

Hub diameter - millimeter (DHUB)

100

Material

HSS

Material application

K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel

MID number

5985821

Mill Profile

Coarse

Ordering code ANSI

D752300.0X2.5X160

Peripheral effective cutting edge count (ZEFP)

160

Radial rake angle (GAMF)

D752 coarse slitting saws are manufactured from High Speed steel which means you will get great tool strength, performance and wear resistance, whilst the steam oxide finish prevents workpiece material from sticking to the cutting edges of the tool so you get an accurate, clean result.

Ideal for thin section components, the dish ground, neutral tooth geometry, in addition to helping control chips, also prevents rubbing when slitting tubes and pipes.

D752 coarse slitting saws are suitable for slitting and cutting in aluminium, steels, stainless steels and cast iron
