Dormer E500M8NO3 5977020 Machine Tap Straight Flute 3FL M8 x 1.25 mm
MODEL 5977020
$12.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ISO 529

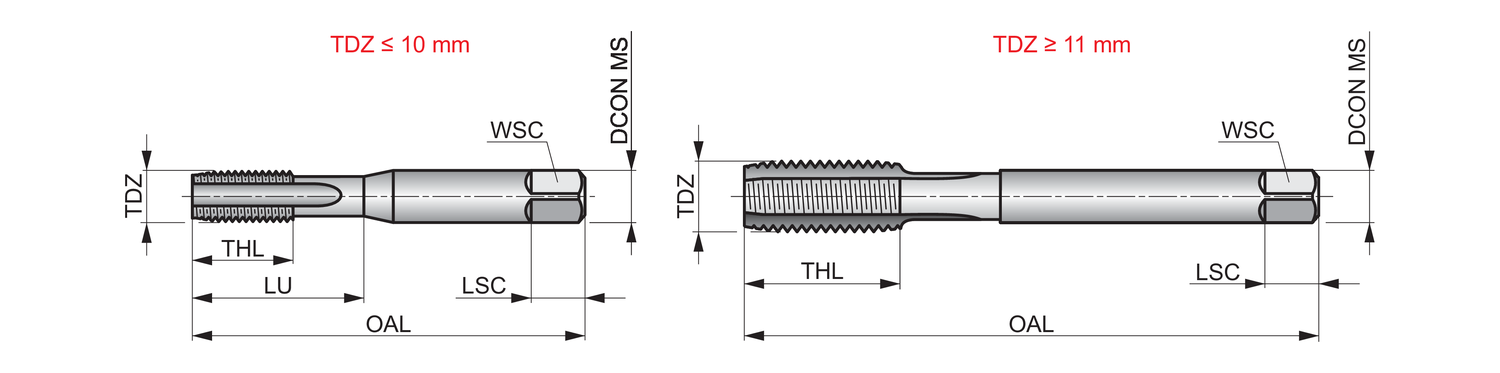

Clamping Length - millimeter (LSC)
9
Clamping width - fractional inch (WSC)
6.3
Clamping width - inch
0.248
Coating
Bright
Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
EDP number
94884
Flute count (NOF)
3
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Right
Material
HSS
Material application
P - Steel and cast steel
MID number
5977020
Ordering code ANSI
E500M8NO3
Overall length - inch (OAL)
2.8346
Overall length - millimeter (OAL)
72
Premachined hole diameter - inch (PHD)
0.2677
Premachined hole diameter - millimeter (PHD)
6.8
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
8
Thread form (THFT)
M - Metric coarse
Thread pitch - inch (TP)
0.0492
Thread pitch - millimeter (TP)
1.25
Threading length - inch (THL)
0.6299
Threading length - millimeter (THL)
16
Usable length (ULDR)
1.5
Usable Length - inch (LU)
1.1417
Usable Length - millimeter (LU)
29
Straight flute hand tap NO3 with a 2-3xP semi-bottoming lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 8.0mm shank and 6.3mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
