Dormer E513M12X1.25NO2 5976719 Machine Tap Straight Flute 3FL M12 x 1.25 mm
MODEL 5976719
$40.43 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ISO 529
Clamping Length - millimeter (LSC)
10
Clamping width - fractional inch (WSC)
7.1
Clamping width - inch
0.2795
Coating
Bright
Connection diameter - inch (DCON MS)
0.3543
Connection diameter - millimeter (DCON MS)
9
EDP number
152522
Flute count (NOF)
3
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Right
Material
HSS
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5976719
Ordering code ANSI
E513M12X1.25NO2
Overall length - inch (OAL)
3.5039
Overall length - millimeter (OAL)
89
Premachined hole diameter - inch (PHD)
0.4252
Premachined hole diameter - millimeter (PHD)
10.8
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
12
Thread form (THFT)
MF - Metric fine
Thread pitch - inch (TP)
0.0492
Thread pitch - millimeter (TP)
1.25
Threading length - inch (THL)
0.8661
Threading length - millimeter (THL)
22
Usable length (ULDR)
1.5

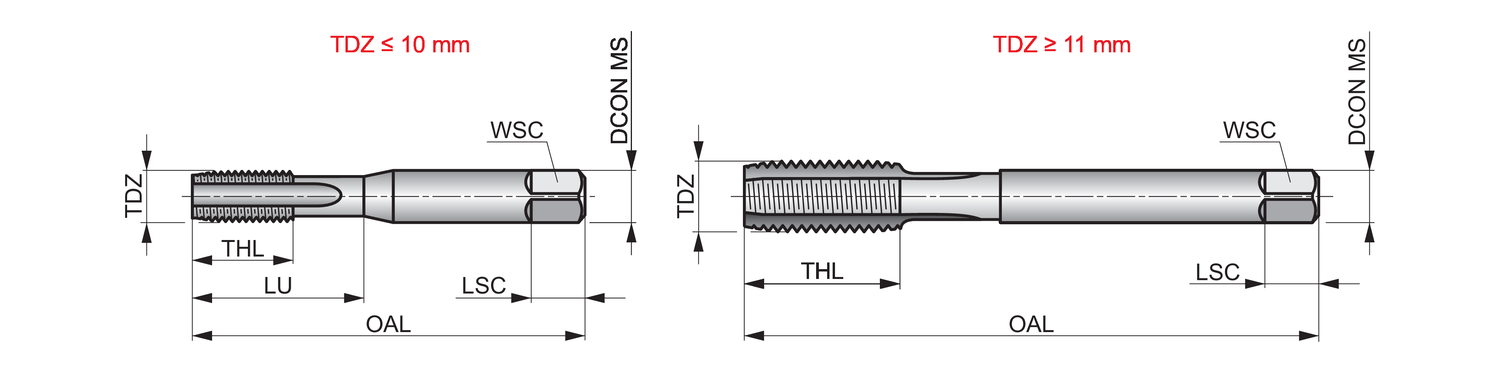

Straight flute hand tap NO2 with a 4-6xP plug lead, for ISO-Metric Fine thread M12 with 1.25 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 9.0mm shank and 7.1mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys.
