Dormer E5243/4NO3 5976108 UNF Machine Tap Straight Flute 4FL 3/4 inch x 16
MODEL 5976108
$72.35 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ISO 529

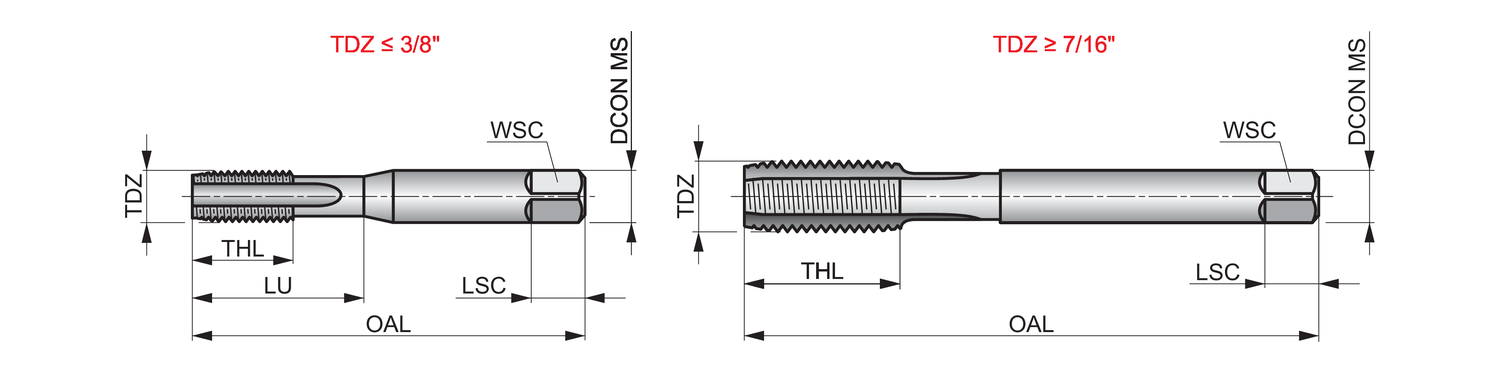

Clamping Length - millimeter (LSC)
14
Clamping width - fractional inch (WSC)
11.2
Clamping width - inch
0.4409
Coating
Bright
Connection diameter - inch (DCON MS)
0.5512
Connection diameter - millimeter (DCON MS)
14
Coolant supply property (CSP)
19.05
EDP number
97984
Flute count (NOF)
4
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Right
Material
HSS
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5976108
Ordering code ANSI
E5243/4NO3
Overall length - inch (OAL)
4.4094
Overall length - millimeter (OAL)
112
Premachined hole diameter - inch (PHD)
0.689
Premachined hole diameter - millimeter (PHD)
17.5
Shank
Cylindrical shank with Square
Thread diameter - inch (TD)
0.75
Thread diameter - millimeter (TD)
19.05
Thread diameter size (TDZ)
3/4
Thread form (THFT)
UNF - Unified Fine
Threading length - inch (THL)
1.1417
Threading length - millimeter (THL)
29
Threads per inch (TPI)
16
Usable length (ULDR)
1.5
Straight flute hand tap NO3 with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 3/4" with 16 TPI and 2B class of fit, dimensions according to ISO 529 standard with 14.0mm shank and 11.2mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys.
