Dormer E000M8 5973802 spiral point machine tap with M8x1.25 thread, 3 flutes, and powder metallurgy cobalt HSS (HSS-E-PM) construction. ISO 529 standard for metric coarse threads. Pre-drill hole diameter 6.8 mm. Suitable for non-ferrous metals, steel, and cast steel.

Basic Standard

ISO 529

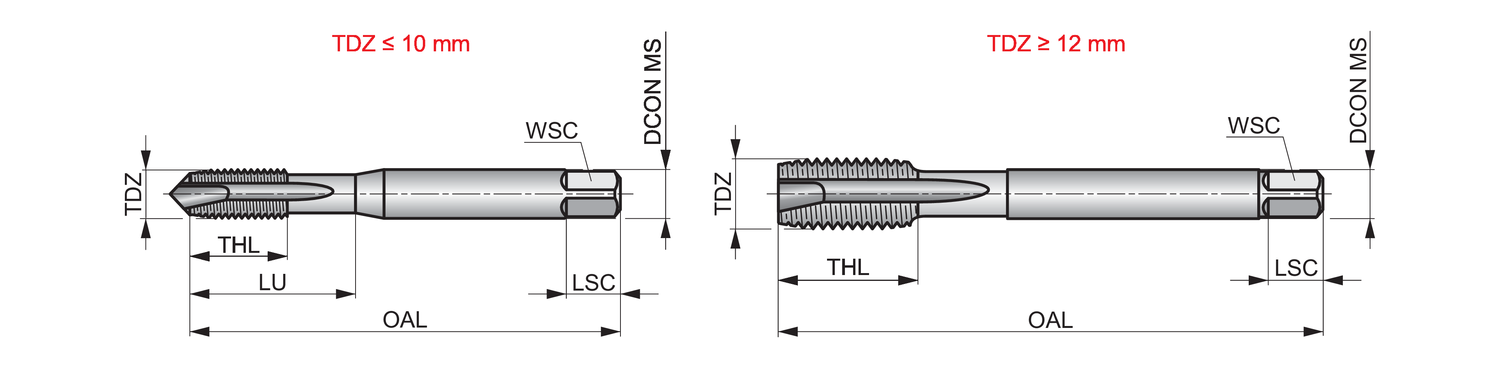

Clamping Length - millimeter (LSC)

9

Clamping width - fractional inch (WSC)

6.3

Clamping width - inch

0.248

Coating

Bright

Connection diameter - inch (DCON MS)

8

EDP number

567630

Flute count (NOF)

3

Flute Geometry (FDC)

Spiral Point Geometry

Hand (Cutting direction)

Right

Material

HSS-E-PM

Material application

N - Non-ferrous metals, P - Steel and cast steel

MID number

5973802

Ordering code ANSI

E000M8

Overall length - inch (OAL)

2.8346

Overall length - millimeter (OAL)

72

Premachined hole diameter - inch (PHD)

0.2677

Premachined hole diameter - millimeter (PHD)

6.8

Shank

Cylindrical shank with Square

Tap chamfer style (TCS)

B 3.5 - 5

Thread diameter size (TDZ)

8

Thread form (THFT)

M - Metric coarse

Thread pitch - inch (TP)

0.0492

Thread pitch - millimeter (TP)

1.25

Threading length - inch (THL)

0.6299

Threading length - millimeter (THL)

16

Tolerance limit

D5

Usable length (ULDR)

2.5

Usable Length - inch (LU)

1.1417

Usable Length - millimeter (LU)

29
