Dormer E001M14 5973812 spiral point machine tap, M14x2.00 thread, 3-flute, powder metallurgy cobalt HSS (HSS-E-PM), ISO 529 standard. For through-hole threading in steel and cast steel (P material group). Pre-drill hole diameter 12 mm. Usable length factor 2.5, shank diameter 11.2 mm, clamping width 9 mm.

Basic Standard

ISO 529

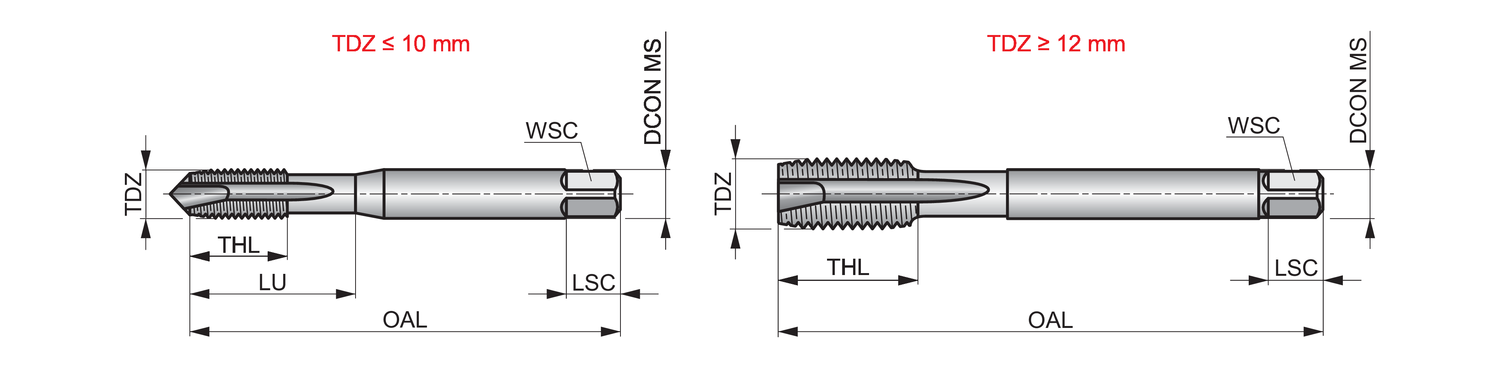

Clamping Length - millimeter (LSC)

12

Clamping width - fractional inch (WSC)

9

Clamping width - inch

0.3543

Coating

Steam Tempered

Connection diameter - inch (DCON MS)

11.2

EDP number

567807

Flute count (NOF)

3

Flute Geometry (FDC)

Spiral Point Geometry

Hand (Cutting direction)

Right

Material

HSS-E-PM

Material application

P - Steel and cast steel

MID number

5973812

Ordering code ANSI

E001M14

Overall length - inch (OAL)

3.7402

Overall length - millimeter (OAL)

95

Premachined hole diameter - inch (PHD)

0.4724

Premachined hole diameter - millimeter (PHD)

12

Shank

Cylindrical shank with Square

Tap chamfer style (TCS)

B 3.5 - 5

Thread diameter size (TDZ)

14

Thread form (THFT)

M - Metric coarse

Thread pitch - inch (TP)

0.0787

Thread pitch - millimeter (TP)

2

Threading length - inch (THL)

0.9449

Threading length - millimeter (THL)

24

Tolerance limit

D7

Usable length (ULDR)

2.5
