Dormer E003M3 5974380 spiral flute machine tap, M3 x 0.50 mm thread, 3-flute, 45° helix, powder metallurgy cobalt HSS (HSS-E-PM), ISO 529 standard for steel and cast steel. Pre-drill hole diameter 2.5 mm.

Basic Standard

ISO 529

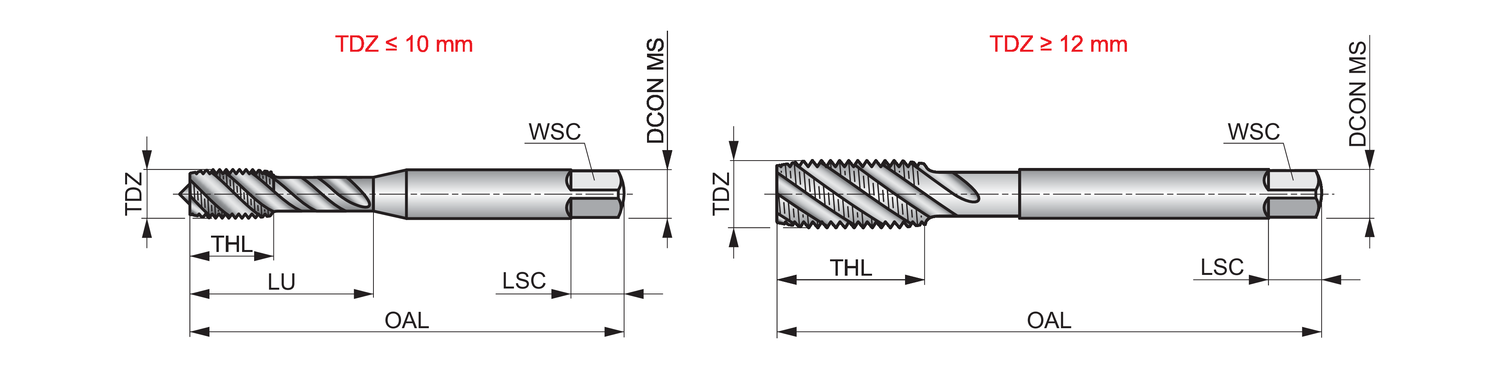

Clamping Length - millimeter (LSC)

5

Clamping width - inch

0.0984

Clamping width - millimeter (WSC)

2.5

Coating

Steam Tempered

Connection diameter - inch (DCON MS)

3.15

Connection diameter - millimeter (DCON MS)

2.5

EDP number

568002

Flute count (NOF)

3

Flute Geometry (FDC)

Spiral Flute Geometry

Flute helix angle (FHA)

45

Hand (Cutting direction)

Right

Material

HSS-E-PM

Material application

P - Steel and cast steel

MID number

5974380

Ordering code ANSI

E003M3

Overall length - inch (OAL)

1.8898

Overall length - millimeter (OAL)

48

Premachined hole diameter - inch (PHD)

0.0984

Premachined hole diameter - millimeter (PHD)

45

Shank

Cylindrical shank with Square

Tap chamfer style (TCS)

C 2 - 3

Thread diameter - millimeter (TD)

2.5

Thread diameter size (TDZ)

3

Thread form (THFT)

M - Metric coarse

Thread pitch - inch (TP)

0.0197

Thread pitch - millimeter (TP)

0.5

Threading length - inch (THL)

0.2362

Threading length - millimeter (THL)

6

Tolerance limit

D3

Usable length (ULDR)

2.5

Usable Length - inch (LU)

0.4921

Usable Length - millimeter (LU)

12.5
