Dormer E011M6X.5 5974483 spiral point machine tap with M6x0.50 thread, 3 flutes, and powder metallurgy cobalt HSS (HSS-E-PM) construction. ISO 529 standard for steel and cast steel applications. Pre-drill hole diameter 5.5 mm.

Basic Standard

ISO 529

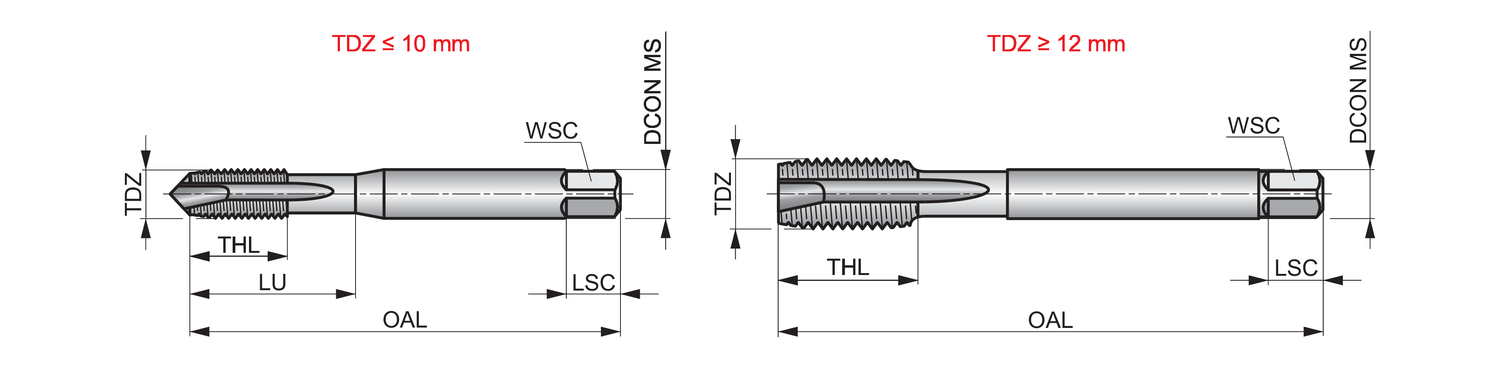

Clamping Length - millimeter (LSC)

8

Clamping width - fractional inch (WSC)

5

Clamping width - inch

0.1969

Coating

Steam Tempered

Connection diameter - inch (DCON MS)

6.3

EDP number

568408

Flute count (NOF)

3

Flute Geometry (FDC)

Spiral Point Geometry

Hand (Cutting direction)

Right

Material

HSS-E-PM

Material application

P - Steel and cast steel

MID number

5974483

Ordering code ANSI

E011M6X.5

Overall length - inch (OAL)

2.5984

Overall length - millimeter (OAL)

66

Premachined hole diameter - inch (PHD)

0.2165

Premachined hole diameter - millimeter (PHD)

5.5

Shank

Cylindrical shank with Square

Tap chamfer style (TCS)

B 3.5 - 5

Thread diameter size (TDZ)

6

Thread form (THFT)

MF - Metric fine

Thread pitch - inch (TP)

0.0197

Thread pitch - millimeter (TP)

0.5

Threading length - inch (THL)

0.5118

Threading length - millimeter (THL)

13

Tolerance limit

D5

Usable length (ULDR)

2.5

Usable Length - inch (LU)

1.0236

Usable Length - millimeter (LU)

26
