Dormer E544BA4 5976678 BA machine tap with spiral flute, 40° helix angle, 3 flutes, No.4 size, HSS, ISO 529. For M and P material applications. Pre-drill hole diameter 40 mm.

Name: Dormer E544BA4 5976678 BA machine tap with spiral flute, 40° helix angle, 3 flutes, No.4 size, HSS, ISO 529. For M and P material applications. Pre-dr
Brand: Dormer Pramet
Price: 20.62 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5976678

BRAND

Dormer Pramet

SKU

6080437

WEIGHT

0.013 lb

UOM

each

$20.62 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ISO 529

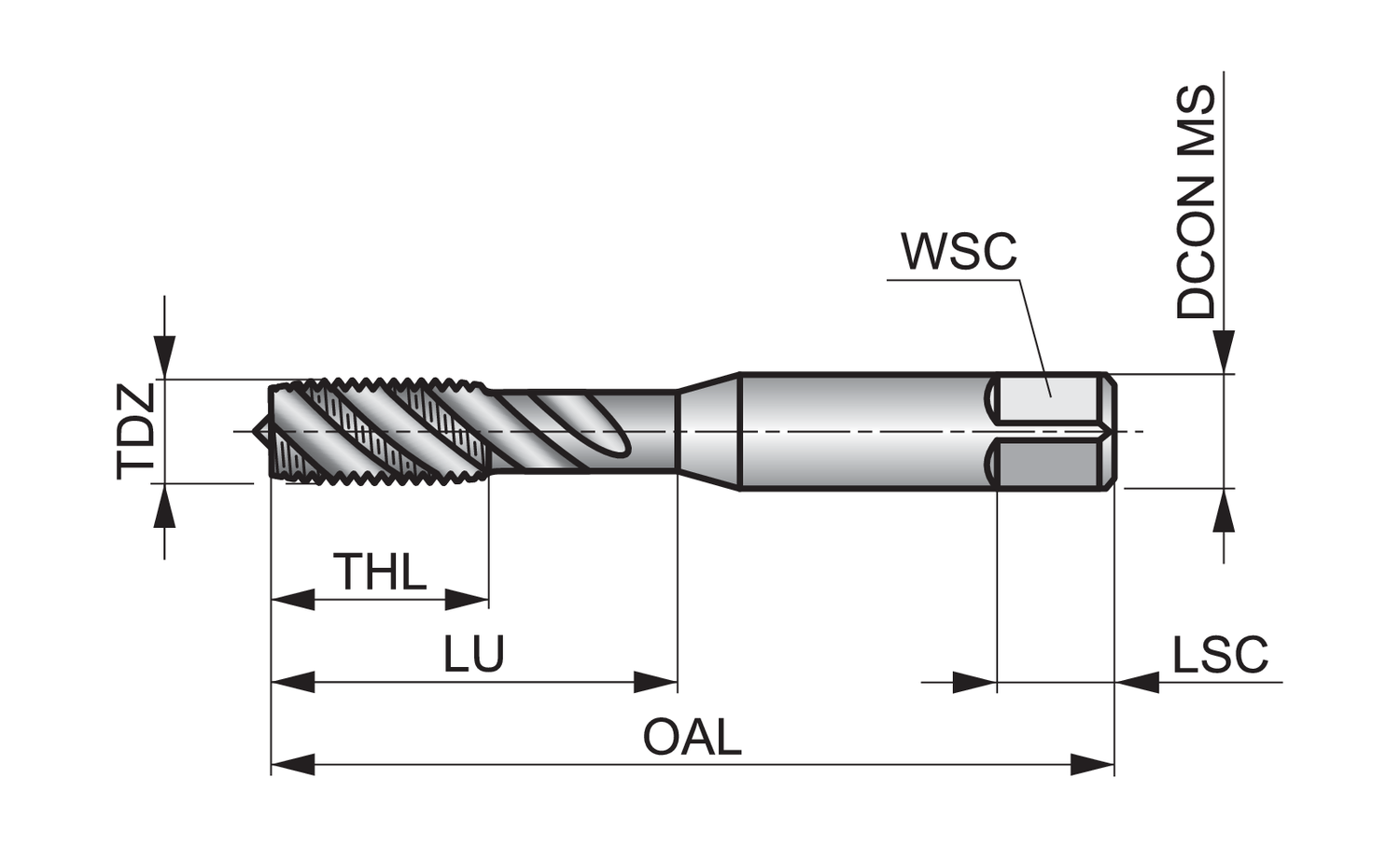

Clamping Length - millimeter (LSC)

Clamping width - inch

0.1102

Clamping width - millimeter (WSC)

3.6

Coating

Bright/ST

Connection diameter - inch (DCON MS)

3.55

Connection diameter - millimeter (DCON MS)

2.8

EDP number

204054

Flute count (NOF)

Flute Geometry (FDC)

Spiral Flute Geometry

Flute helix angle (FHA)

Hand (Cutting direction)

Right

Material

HSS

Material application

M - Stainless steel, P - Steel and cast steel

MID number

5976678

Ordering code ANSI

E544BA4

Overall length - inch (OAL)

1.9685

Overall length - millimeter (OAL)

Premachined hole diameter - inch (PHD)

0.1181

Premachined hole diameter - millimeter (PHD)

Shank

Cylindrical shank with Square

Tap chamfer style (TCS)

C 2 - 3

Thread diameter - inch (TD)

0.1417

Thread diameter - millimeter (TD)

Thread diameter size (TDZ)

BA 4

Thread form (THFT)

BA - British association

Thread pitch - inch (TP)

0.026

Thread pitch - millimeter (TP)

0.66

Threading length - inch (THL)

0.6496

Threading length - millimeter (THL)

16.5

Usable length (ULDR)

Usable Length - inch (LU)

0.6496

Usable Length - millimeter (LU)

16.5

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for British Association thread BA 4 with 0.66 mm pitch and Normal class of fit, dimensions according to ISO 529 standard with 3.55mm shank and 2.8mm square drive, HSS with bright finish with steam tempering and 40° helix angle for 2xD blind hole threading in free machining, plain carbon and alloy steel.
