Image for Illustration purposes only. Actual product may vary
Dormer E5471/4NO1 5976327 G(BSP) Machine Tap Straight Flute 4FL 1/4 inch x 19
MODEL 5976327
$45.57 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ISO 2284

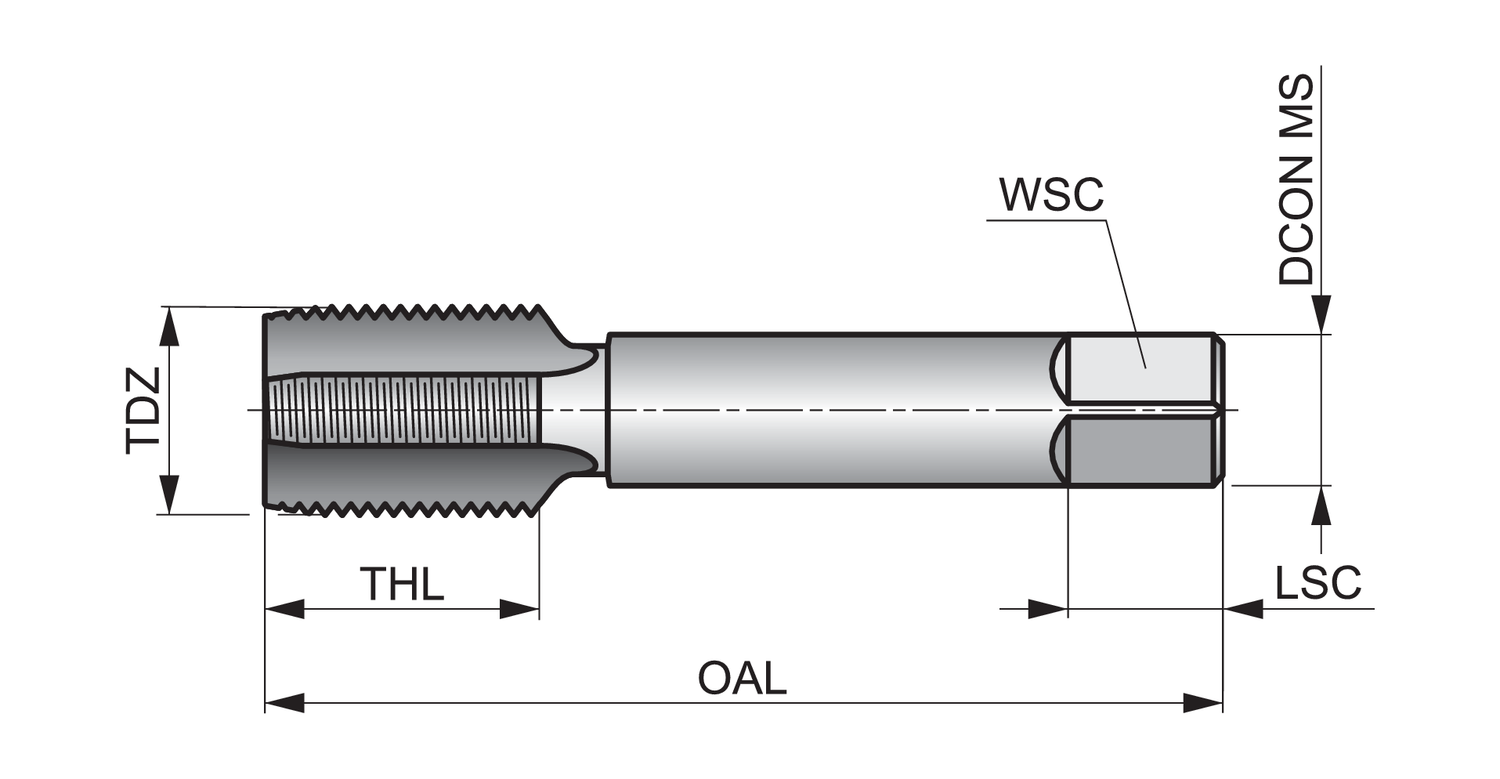

Clamping Length - millimeter (LSC)
11
Clamping width - fractional inch (WSC)
8
Clamping width - inch
0.315
Coating
Bright
Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Coolant supply property (CSP)
13.157
EDP number
157190
Flute count (NOF)
4
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Right
Material
HSS
Material application
P - Steel and cast steel
MID number
5976327
Ordering code ANSI
E5471/4NO1
Overall length - inch (OAL)
2.6378
Overall length - millimeter (OAL)
67
Premachined hole diameter - inch (PHD)
0.4646
Premachined hole diameter - millimeter (PHD)
11.8
Shank
Cylindrical shank with Square
Thread diameter - inch (TD)
0.518
Thread diameter - millimeter (TD)
13.157
Thread diameter size (TDZ)
1/4
Thread form (THFT)
G - British standard pipe fastening - G series
Threading length - inch (THL)
0.748
Threading length - millimeter (THL)
19
Threads per inch (TPI)
19
Usable length (ULDR)
1.5
Straight flute hand tap NO1 with a 6-8xP taper lead, for British Standard Pipe thread G 1/4" with 19 TPI and Normal class of fit, dimensions according to ISO 2284 standard with 10.0mm shank and 8.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
